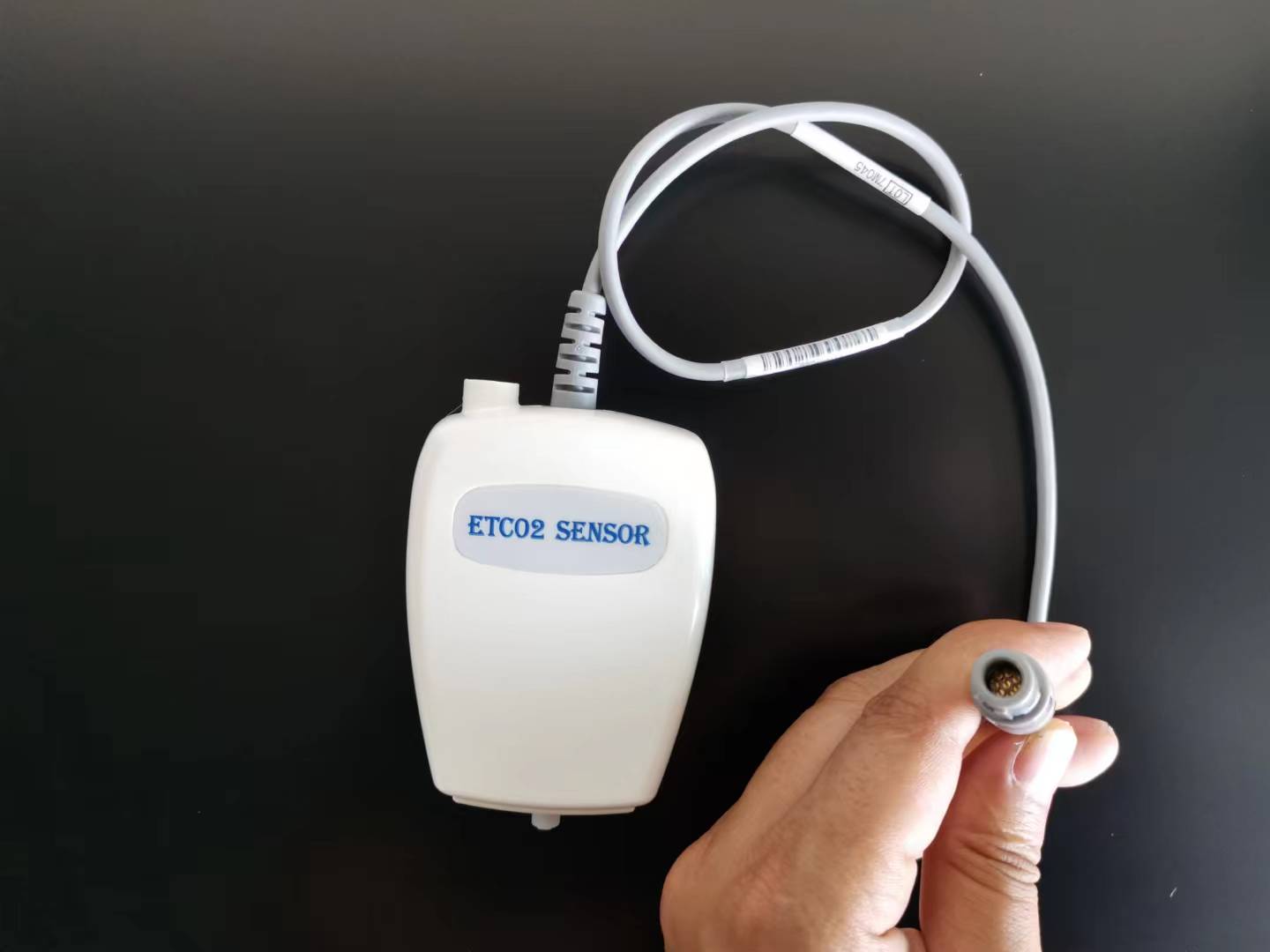

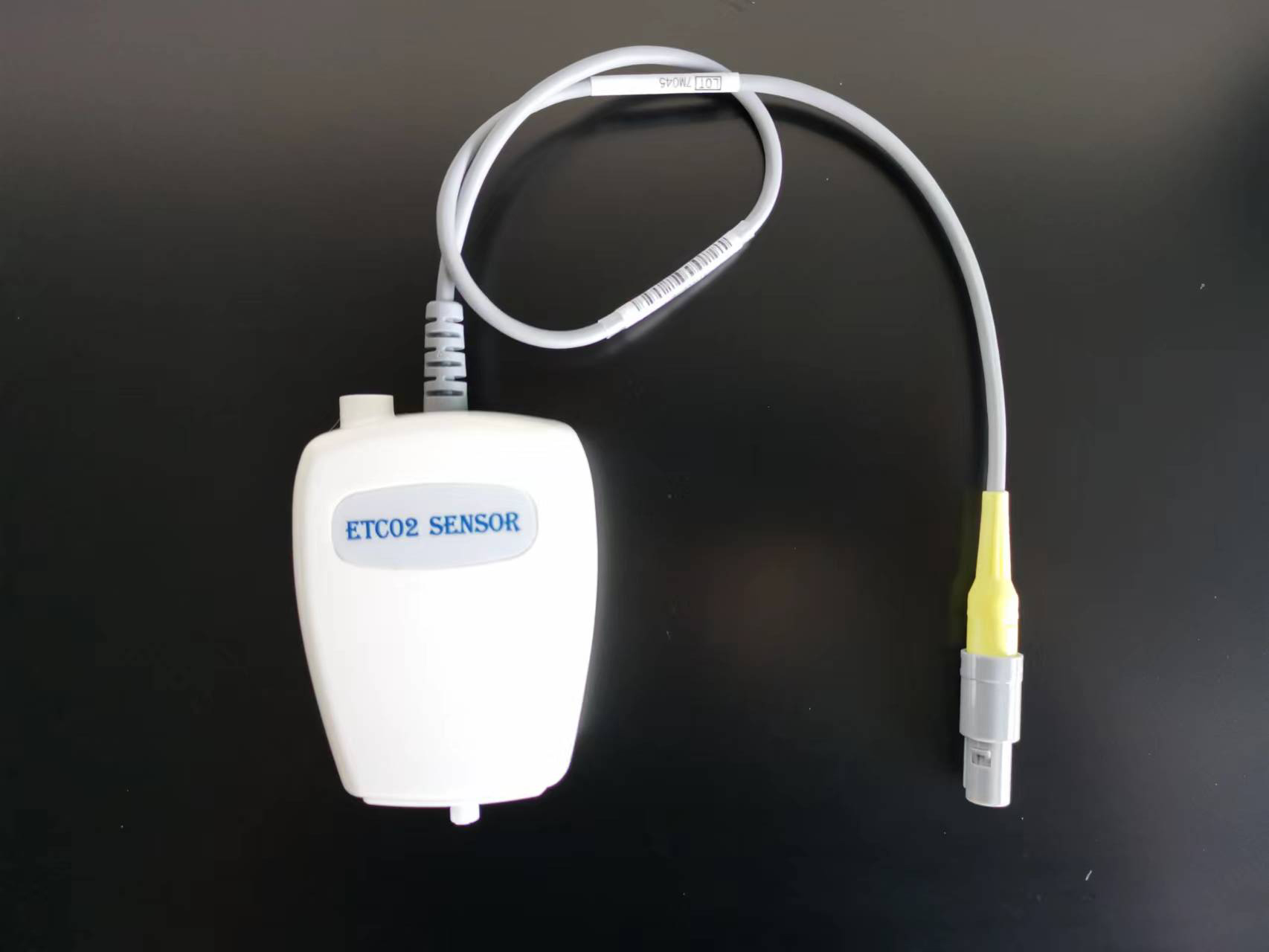

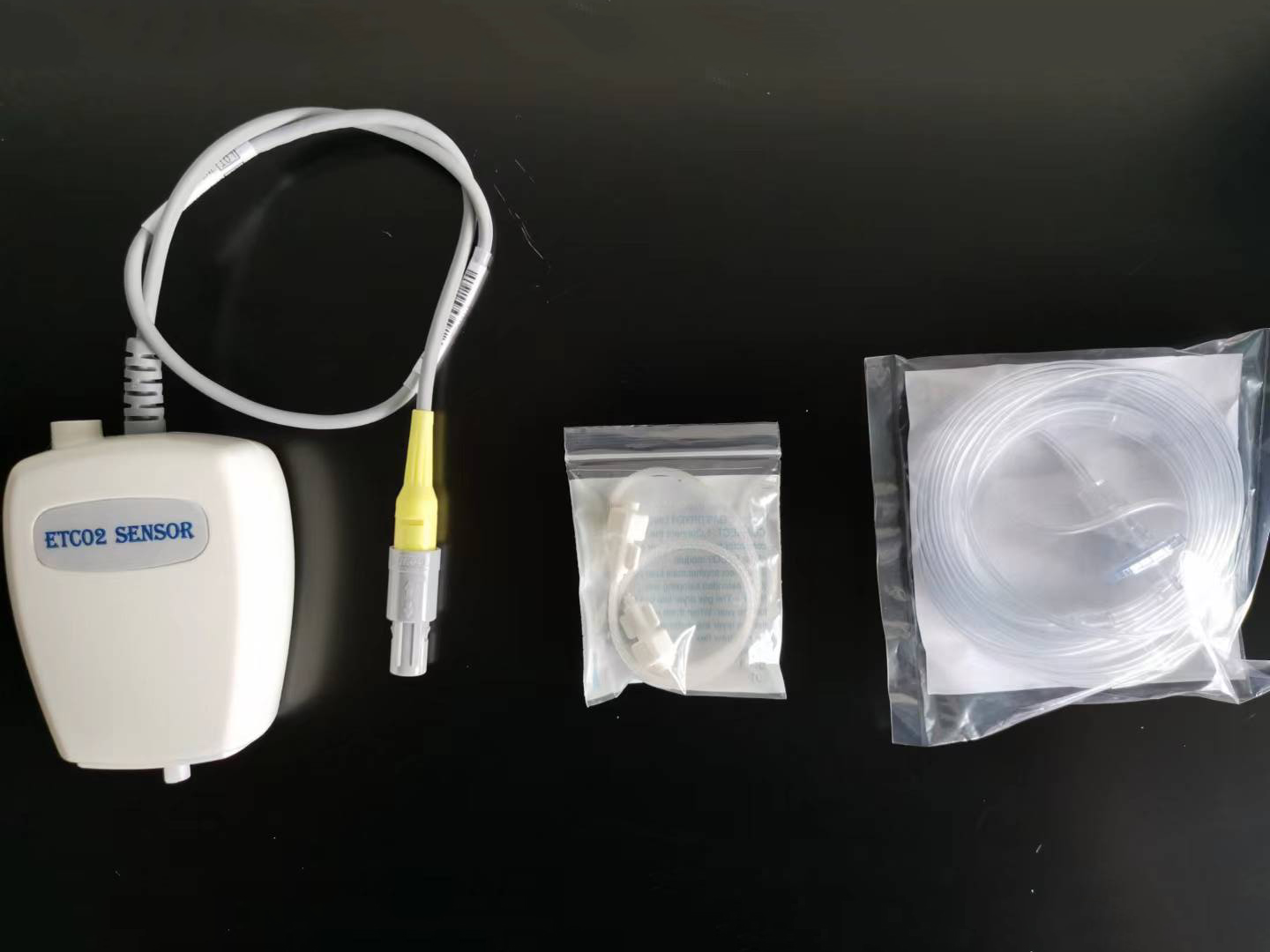

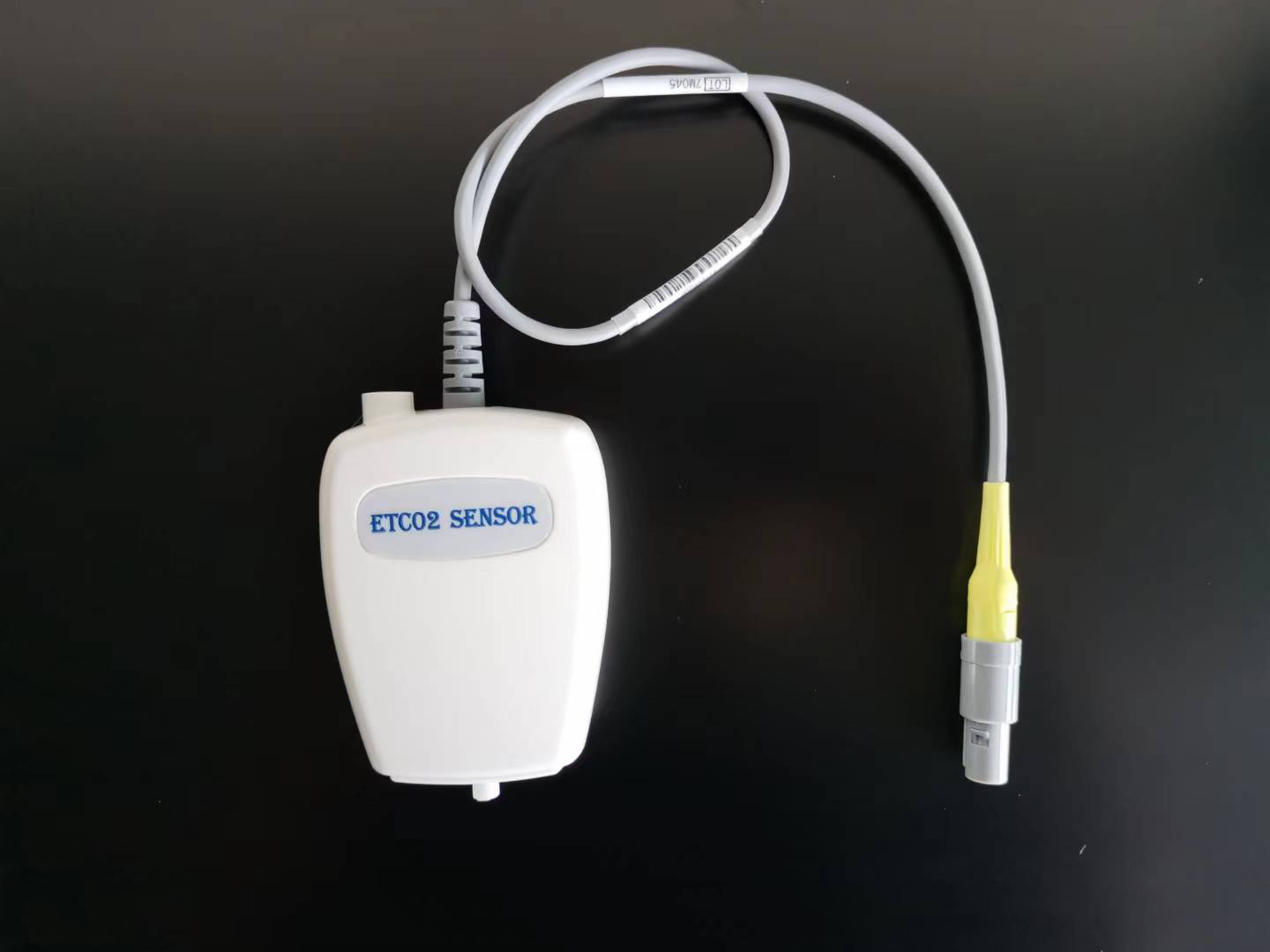

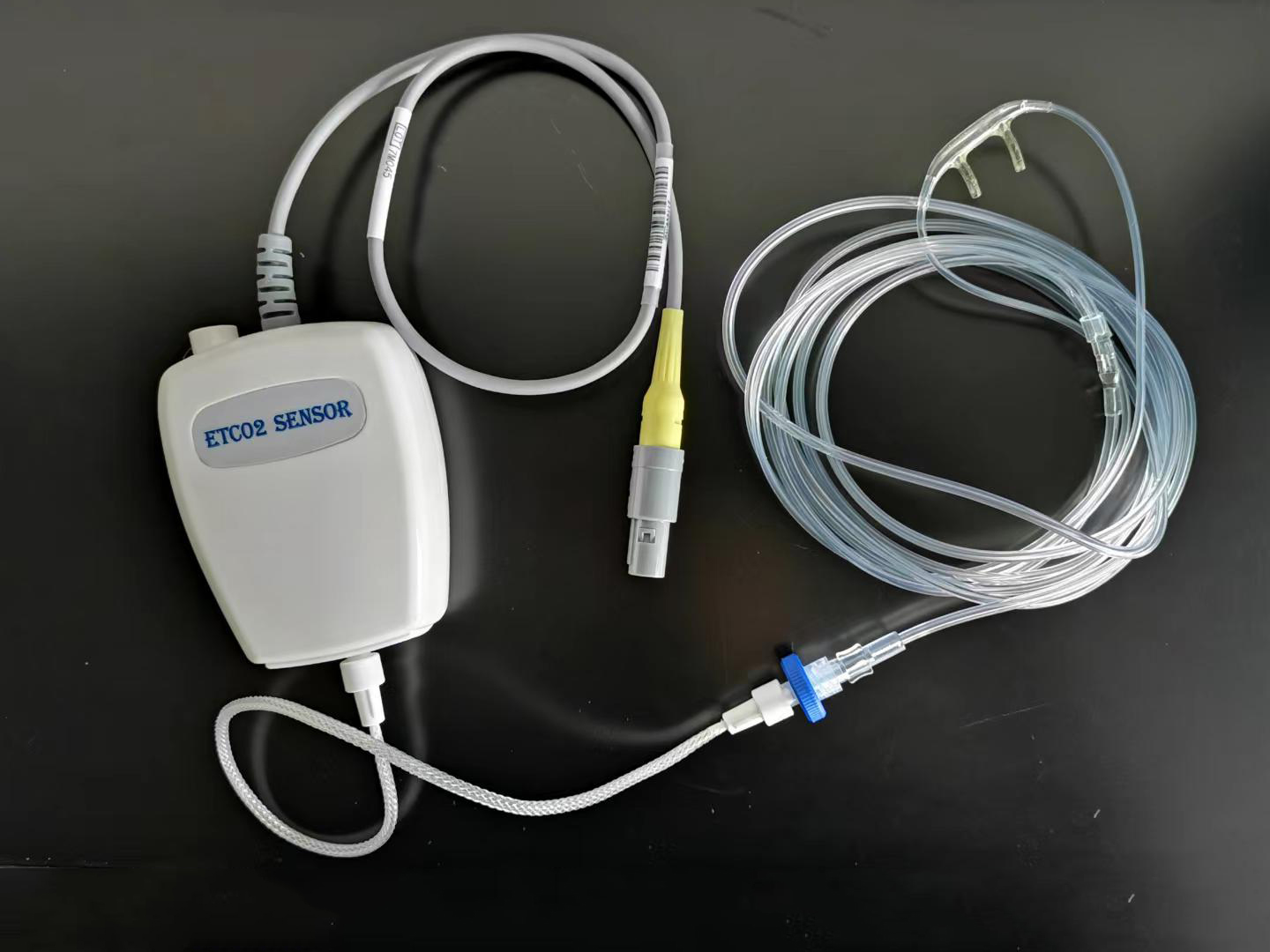

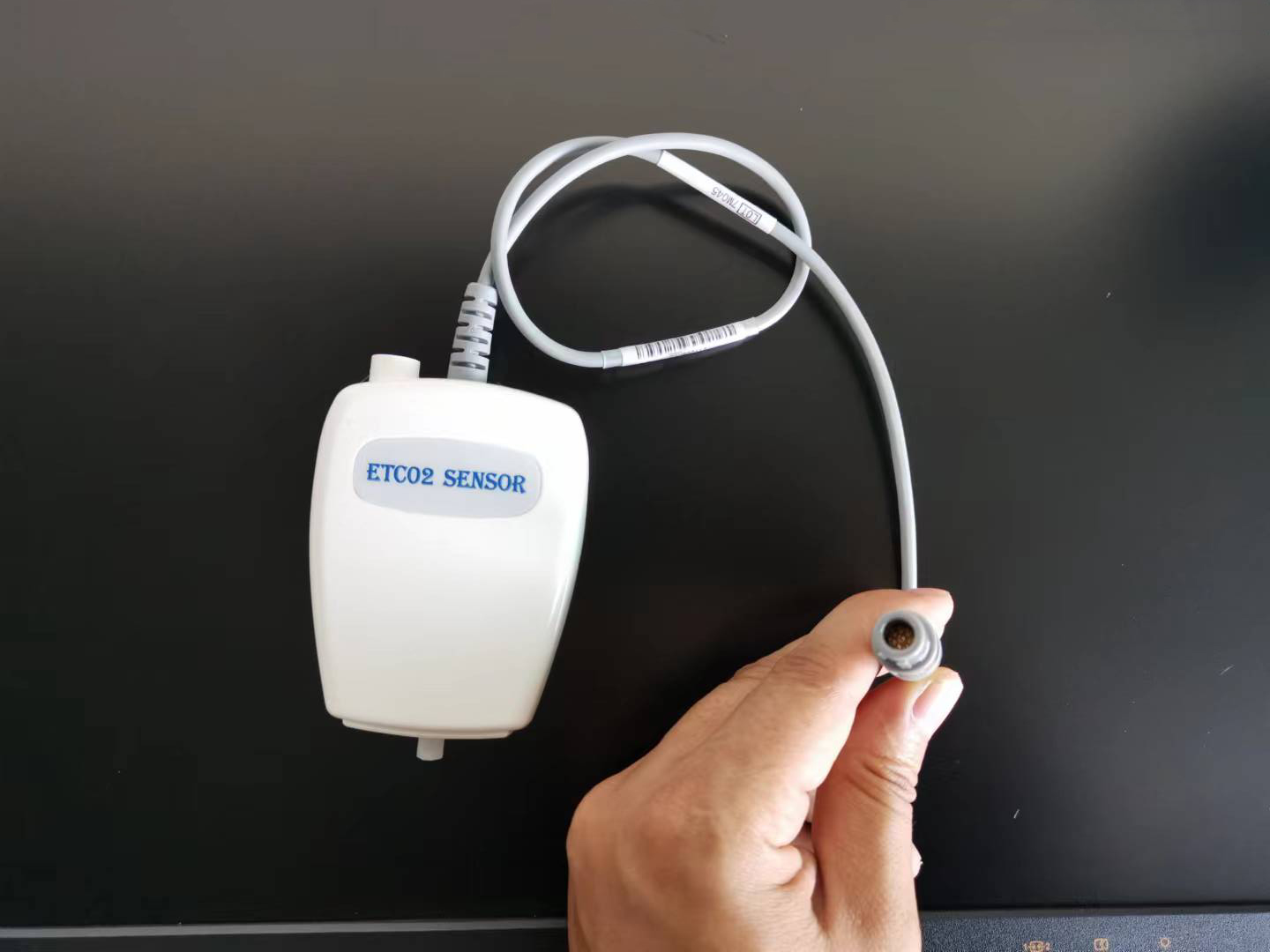

MS-S30 Sidestream ETCO2 Sensor
Product Introduction
ETCO2 module is the ideal capnography solution. It is plug-in and play. The sensor features advanced technology for measuring realtime CO2 concentration, respiration rate, end-tidal CO2 concentration, inspired CO2 concentration. It resist the vapour better with patented technology, make the measured result more accurate.
Annlication Field
Monitoring the patient’s respiratory status
Assisting in determining when to intubate or extubate
Verification of ET-tube placement
Alarming when accidental extubation occurs
Ventilator disconnect detection
Verification of ventilation during transportation
Technical Specifications
Transducer Type | Side stream CO2 module(MS-S30) and Mainstream CO2 sensor(MS-M60) |
Principle of Operation | Non-dispersive infra-Red (NDIR) |
Initialization Time | Capnogram displayed in less than 6 seconds(side stream) and 2 senconds (mainstream) |
Reaching full specifications within 2 |
CO2 Measure Range | 0 - 150mmHg 0 - 20.0% 0- 20kPa |
CO2 Measure Resolution | 0.1mmHg(side stream ), 0.01mmHg(mainstream ) |
Co2 Accuracy | 0 – 40 mmHg ±2 mmHg 41 – 70 mmHg ±5% of reading 71 – 100 mmHg ±8% of reading 101–150 mmHg ±10% of reading |
Respiratory Rate | Range 2 - 150 RPM |
Accuracy ±1 breath |
Calibration | No routine user calibration required. An airway adapter zero is required when insert an airway adapter |
Compensation | Barometer Pressure 450 - 850 mmHg. Operator selectable O2 , N2O, He compensation. |
Power Consumption | 5.0 VDC ±5%, power consumption less than 1.3W typical |
Temperature / Humidity | Operating: 0 to 50 ℃, 10 to 90% RH |
Storage: -40 to 70℃, <90% RH |
Data Interface | RS232/TTL, 19200 baud rate, standard N-8-1. Fully compatible with Respironics/Masimo CO2 module’s communication protocol |
