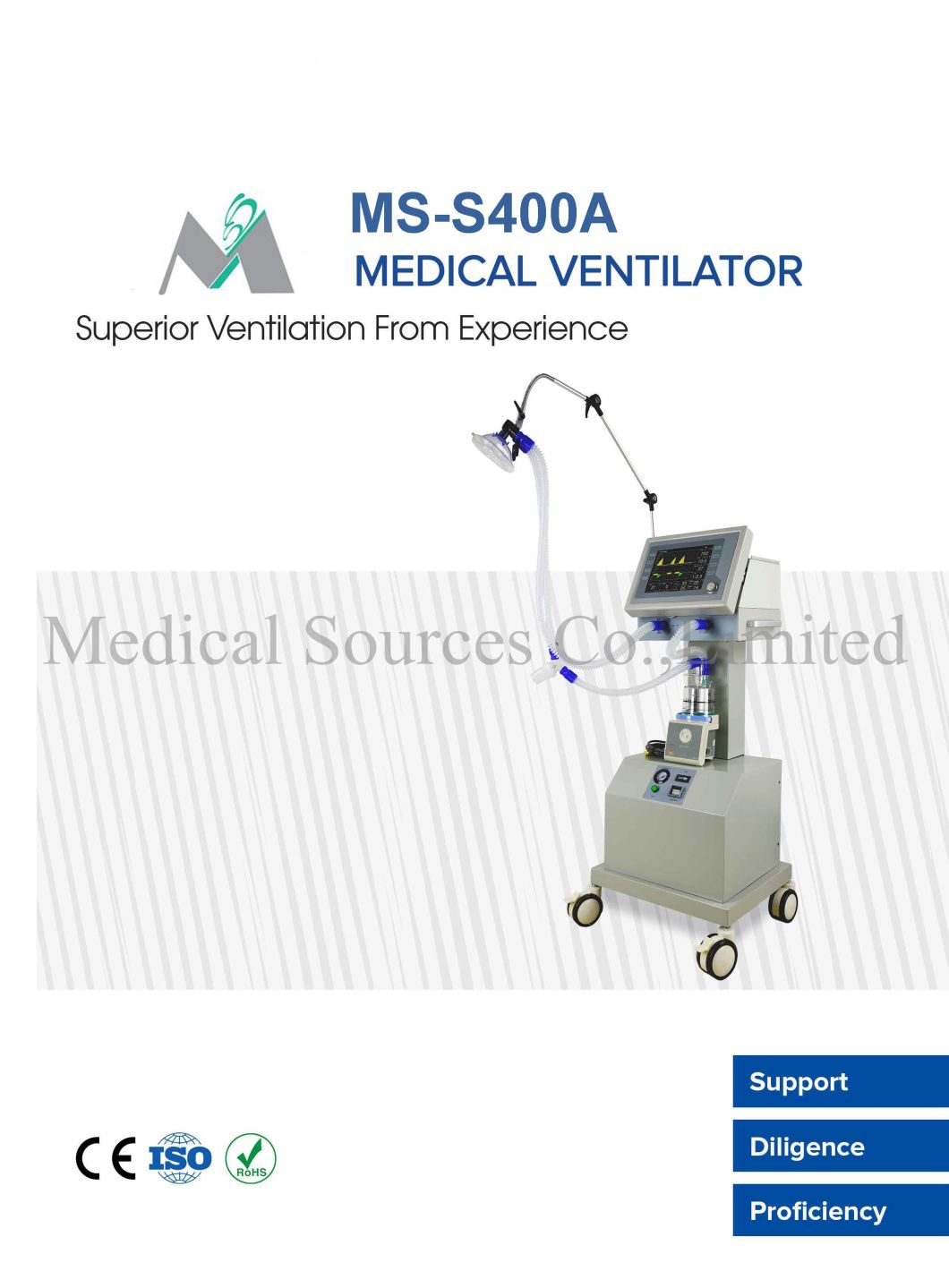

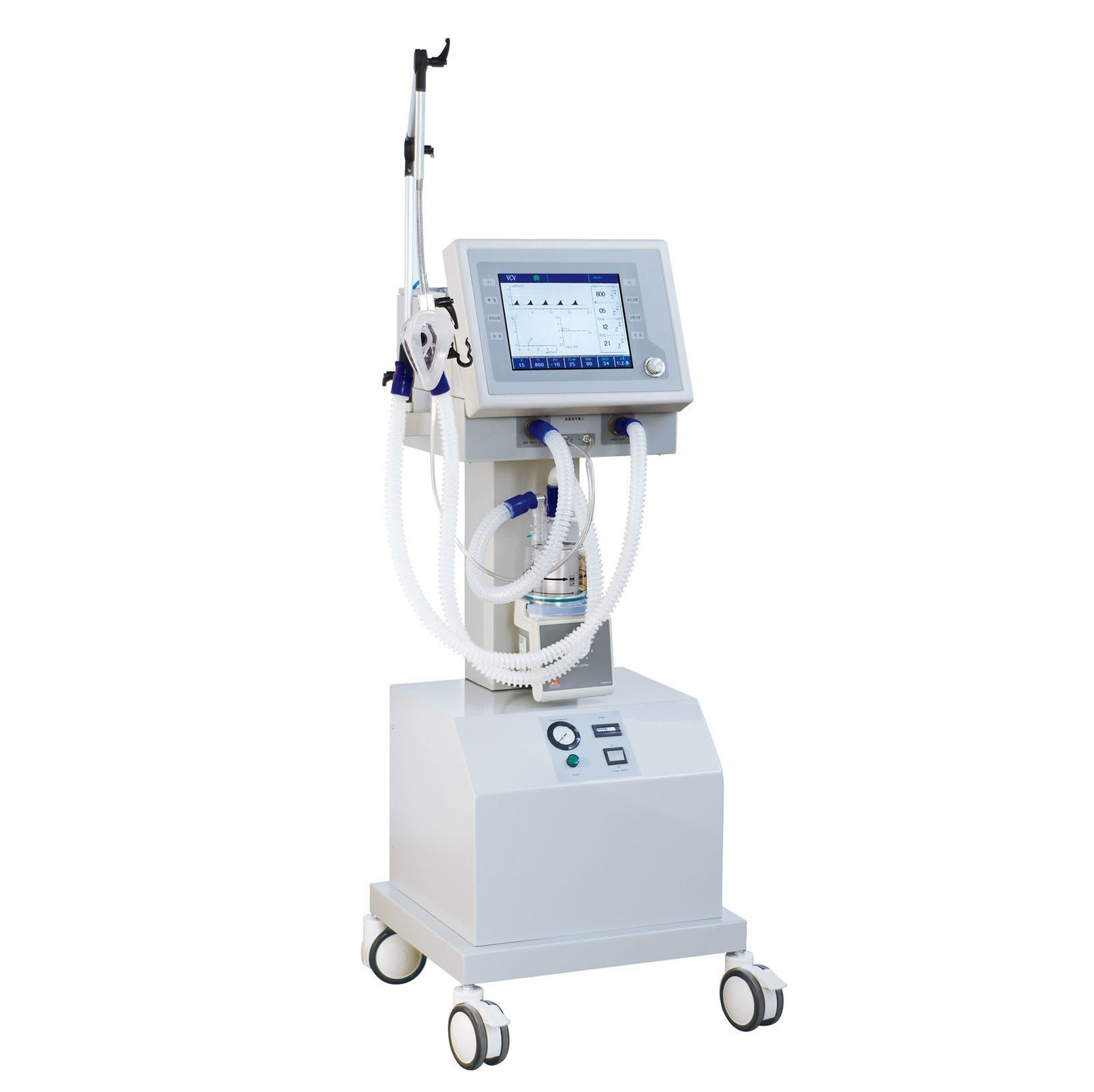

(MS-S400A) Medical CPAP Machine Neonatal Ventilator System Baby Ventilator

MS-S400A Medical Neonatal Ventilator

Characters:
Patient Type: Adult, Pediatric& Neonatal Patients
Dimension(HXWXD):130cm X68cm X 60cm
Weight :78kgs
Power:220V/50Hz,110V/60Hz
Backup Power:At least 30 minutes,nominally between 2 to 4 hours
Display:10.4 Inch TFT display

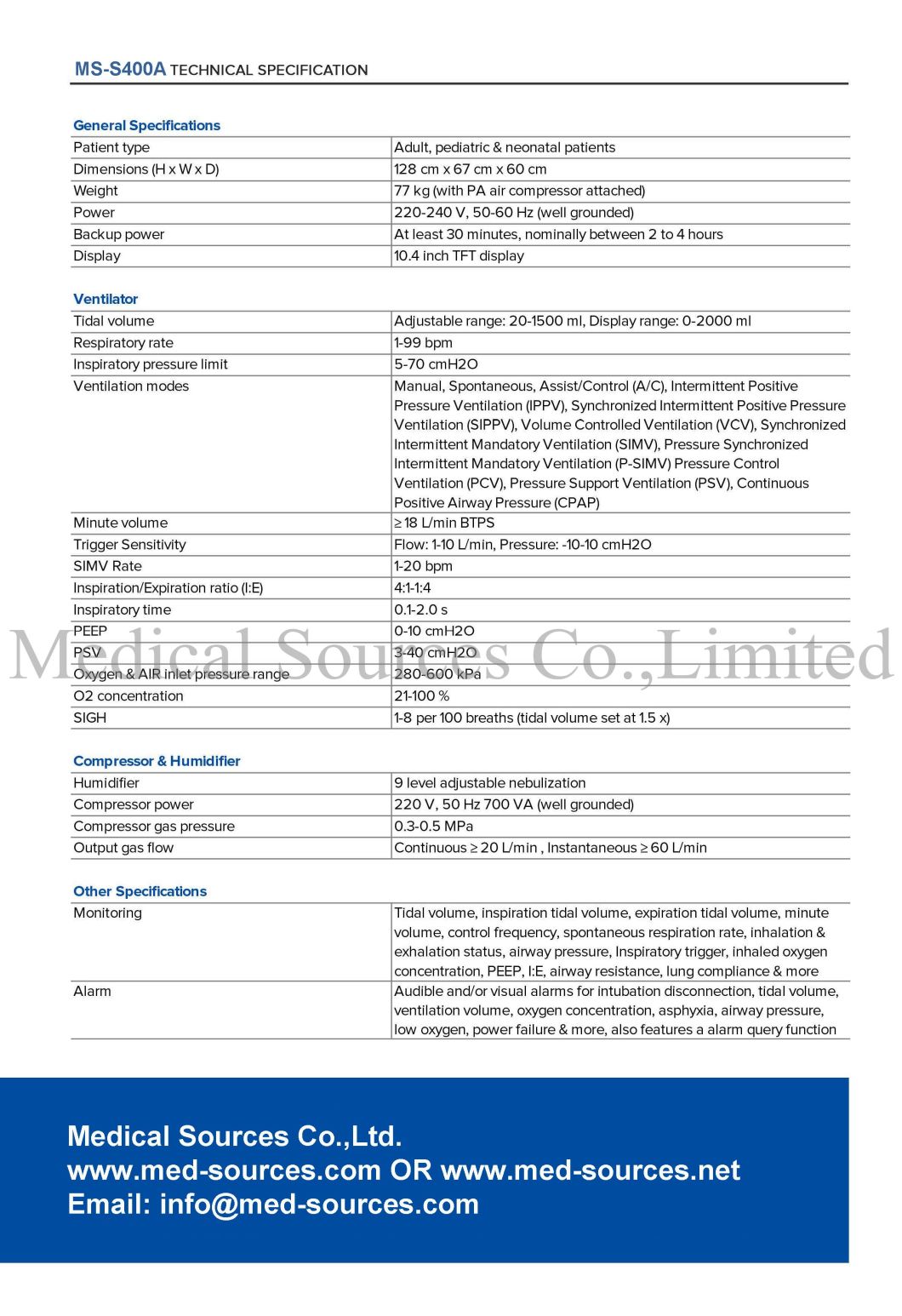

Specifications
Ventilator:
Tidal Volume:Adjustable range:20-1500 ml,Display Range:0-2000 ml.
Respiratory Rate:1-99 bpm
Inspiratory Pressure Limit:5-70cm H₂O
Ventilatori Modes:
Manual, Spontaneous, Assist/Ctontrol(A/C), Intermittent Positive Pressure Ventilatiron(IPPV), Synchronized Intermittent Positive Pressure Ventilatiron(SIPPV), Volume Controlled Ventilation(VCV), Synchronized Intermittent Mandatory Ventilation(SIMV), Pressure Synchronized Intermittent Mandatory Ventilation(P-SIMV), Pressure Control Ventilation(PCV), Pressure Support Ventilation(PSV), Continuous Positive Airway Pressure(CPAP)
Minute Volume:≥18L/min BTPS
Trigger Sensitivity:Pressure:-10~10cm H₂O
SIMV Rate:1-20 bpm
Inspiration/Expiration Ratio(I:E)4:1-1:4
Inspiratory Time:0.1-2.0s
PEEP:0-10cm H₂O
PSV:3-40 cm H₂O
Oxygen&Air Inlet Pressure Range:280-600kPa
O₂ Concentration 21-100%
SIGH:1-8 per 100 breaths(Tidal Volume set 1.5X)

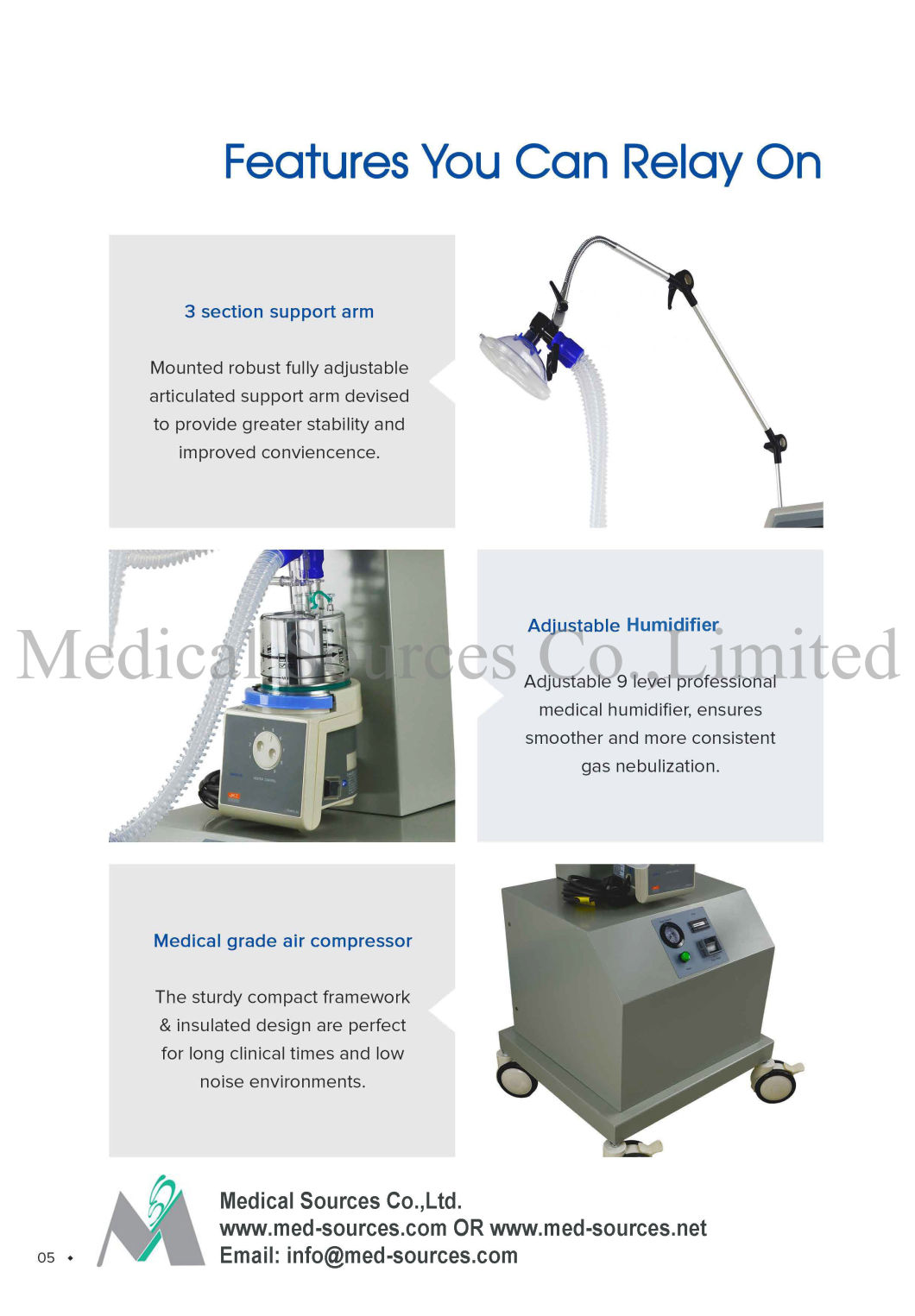

Aircompressor&Humidifier:
Humidifier:9 Level Adjustable Nebulization
Compressor Power: 220V/50Hz,110V/60Hz
Compressor Gas Pressure: 0.3-0.5Mpa
Output Gas Flow:Continuous:≥20L/Min, Instantaneous:≥60L/min

Momintoring:
Tidal Volume, Inspirateion Tidal Volume,Expiration Tidal Volume, Minute Volume, Control Frequency, Spontaneous Respiration Rate, Airway Pressure, I:E inhalation&exhalation Status, Inspiratory Trigger,Ihaled Oxygen Concentration, PEEP, Airway Resistance, Lung Compliance

Alarm
Audible/Visual Alarms for Intubation Disconnection, Tidal Volume, Ventilaton Volume, Oxygen Concnetration, asphyxia,Airway Pressure, Low Oxygen, Power Failure, Alarm Query Function.
