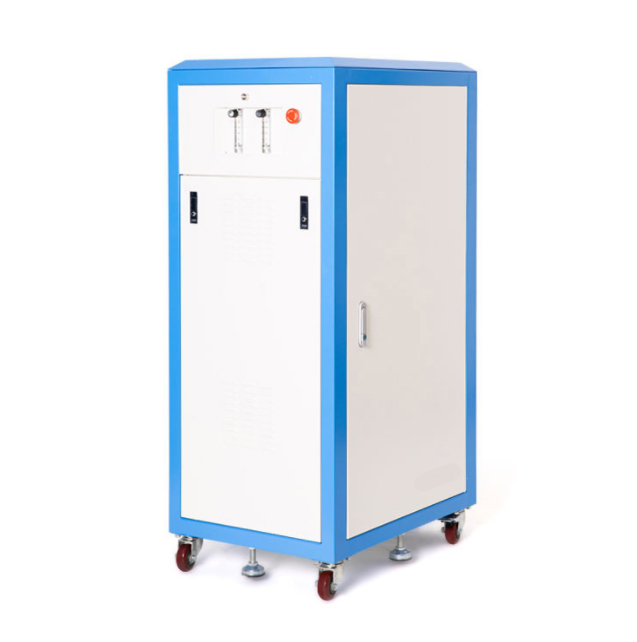

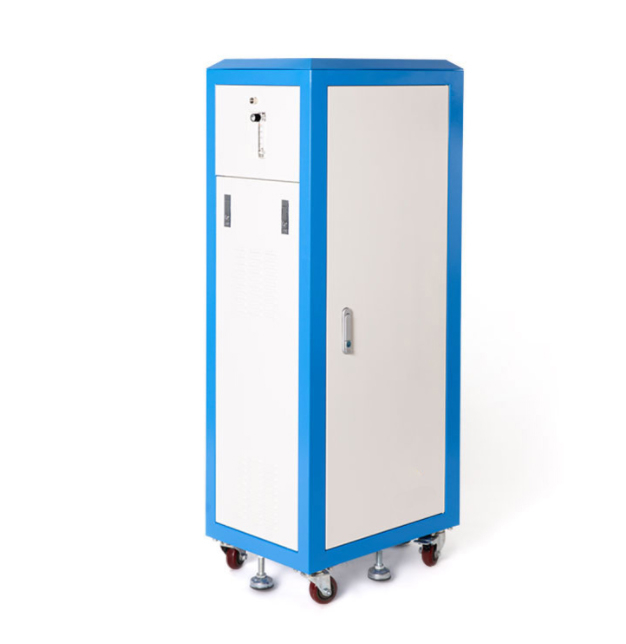

MS-S60L PSI Oxygen Concentrator
Features:

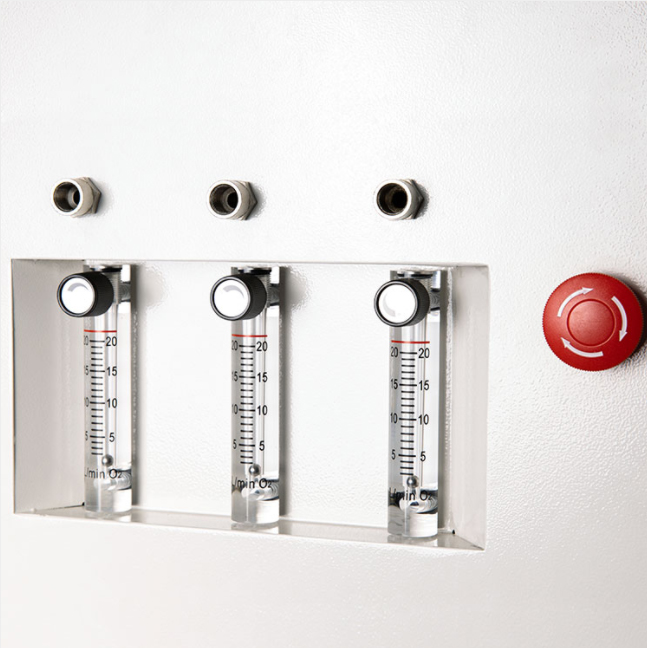

The emergency switch ensure the safety of machine operation;

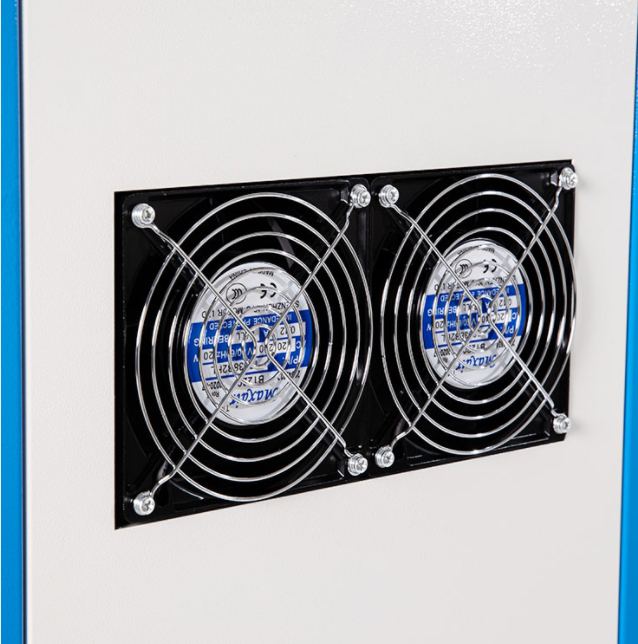

Two or more sets of fans ensure the machine's operating temperature and more conducive to heat dissipation;
Four big wheels easy to move flexibly;
Two sets of filters easy to maintain the oxygen generator;
Optional booster pump:2-8 Bar;
Small centralized oxygen supply: Oxygen supply to clinic and small hospital;
Sufficient flow,high oxygen concentration;
Core control technology,special for industry;
Reasonable structure design,convenient maintenance;
The booster pump and oxygen storage tank can be optional to configure a small central oxygen supply system to centrally supply oxygen to a small hospital with 100 beds.
Specification
MS-S20L;MS-S40L;MS-S60L |
Flow Rate | 1-20L/min;1-40L/min;1-60L/min | Net weight | 95 Kgs;160Kgs;245Kgs |
Oxygen Concentration | 93%(±3%) | Power Consumption | ≤1100W;≤2200W;≤3300W |
Outlet Pressure | 6-10PSI(0.04-0.07MPA);20PSI (0.14Mpa) | Input Frequency | 50Hz;60 Hz |
Sound Level | ≤60dB | Input Voltage | AC 230V±10%;AC110V±10% |
Alarm | 1.Power failure alarm; 2.High and low pressure alarm; 3.Low oxygen purity alarm: When oxygen purity is >82%,blue light illuminate; When oxygen purity is <82%, red light illuminate, indicating low purity; |
