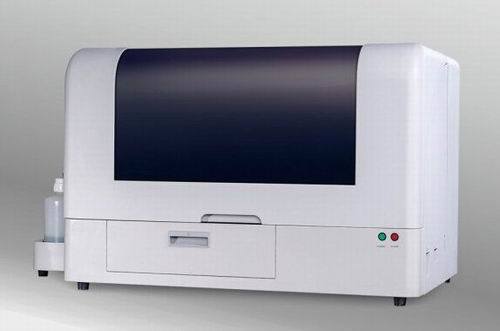

MS-T60 Fully Automatic CLIA Analyzer MS-T60 is a small full-auto chemiluminescence analyzer characterized by small size, low maintenance costs, and complete reagent test menu.

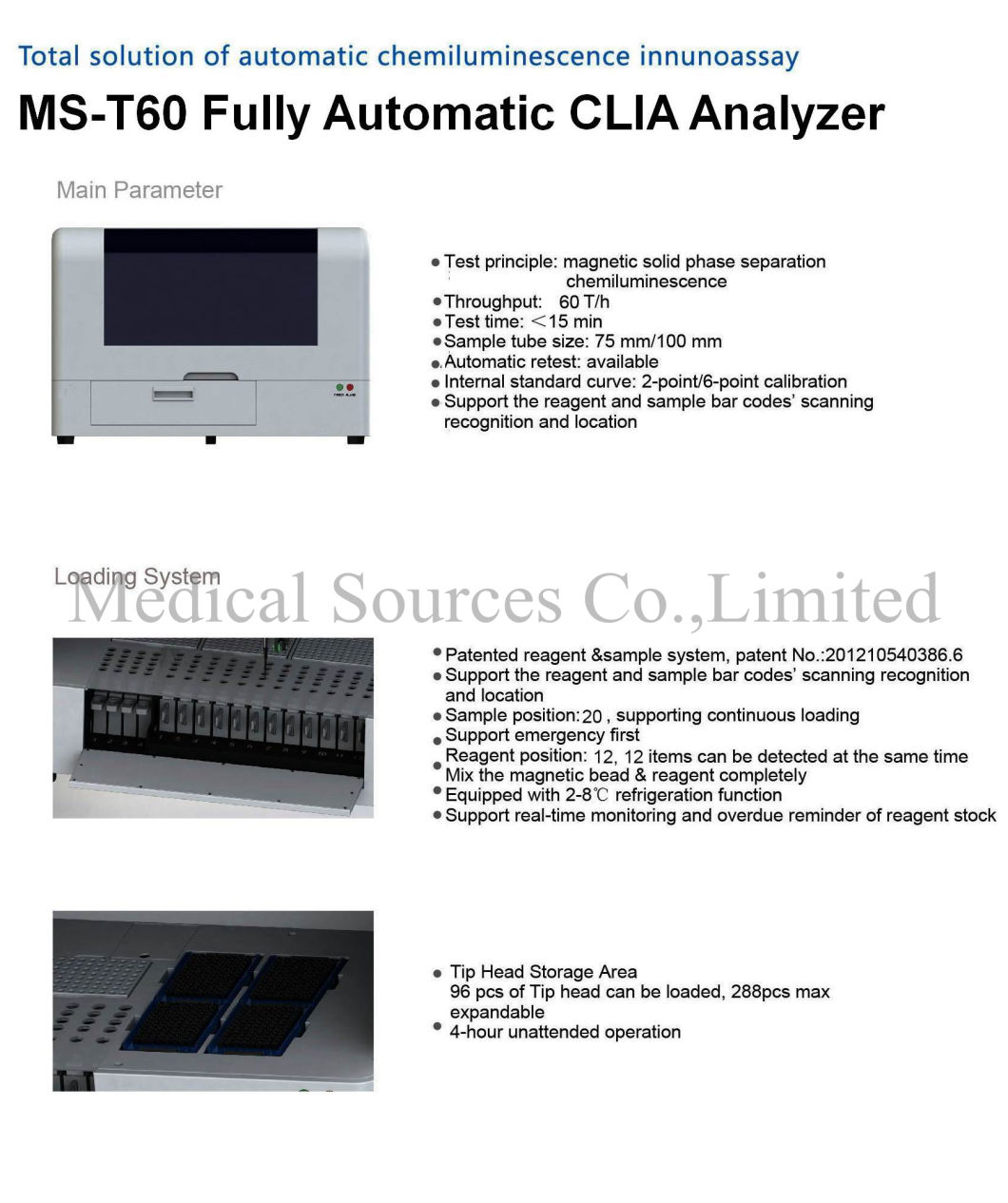

Main Parameters:
Test Principle:Magnetic solid phase separation chemilumienescence.
Throught put:60T/h
Test Time:<15 min
Sample Tube Size:75mm/100 mm
Automatic Retest:Available
Internal standard curve:2-point/6-point cablibration
Support the reagent and sample bar code's scanning recognition and location
Loading Sytem:
Patented reagent&Sample system.
Support the reagent and sample bar codes' scanning recognition and location
Sample postion:20,supporting continouous loading
Support emergency first
Reagents postion:12,12items can be detetected at teh same time
Mix the magnetic bead&reagent completely
Equipped with 2-8ºC referigeration function
Support real-time monitoring and overdue reminder of reagent stock.
Tip head stroage area,96pcs of tip head can be loaded,288pcs max expandable
4-hour unattended operation

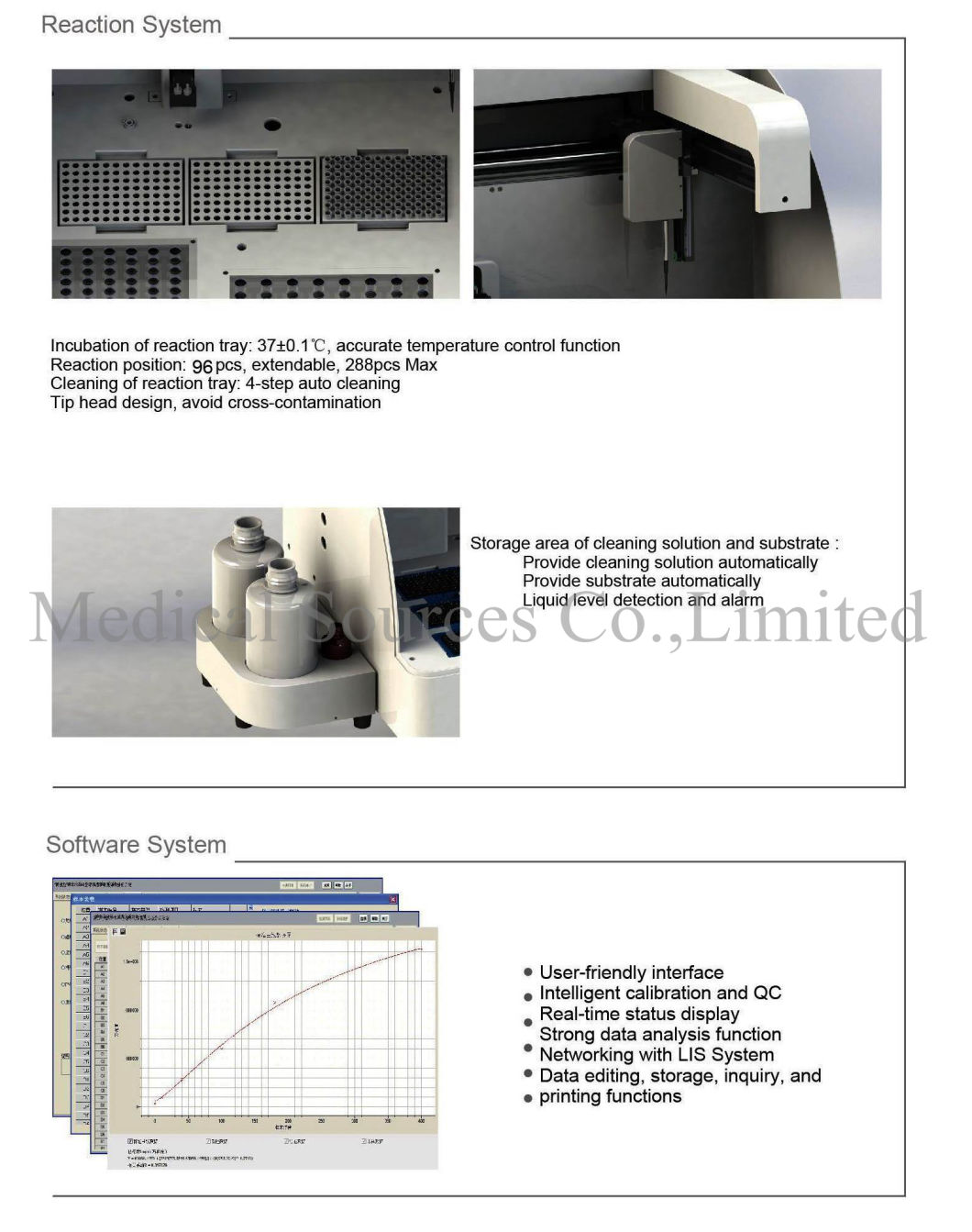

Reaction Sytem
Incubation of reaction tray:37±0.1ºC,accurate temperature control function
Reaction position:96 pcs,extendable ,288 pcs max
Cleaning of reaction tray:4-step auto clieaning
Tip head design,avoid cross-contamination
Storage area of cleaning solution and substrate
Provide cleaning solution automatically
Provide substrate automatically
Liquid level detection and alarm
Software system
User-friendly interface
Intelligent calibration and QC
Real-time status display
Strong data analysis function
Networking with LIS System
Data Editing,storage,inquiry and printing functions
