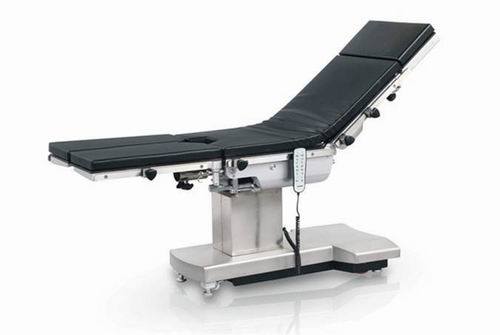

MS-TE190C Electric Operation Table This electro-hydraulic operating table is made specially to meet demand of general surgical operations.It adopts full 304 stainless steel.Tabletop is X-raying available.Auto-lock on remote control,electric base lock and release.Sliding can be 350mm,0 reset function,with battery available.
Technical Data:
Lenth/width:1970mm/500mm
Elevation(up/down):690mm/1100mm
Trendelenburg:30°
Reverse Trendelenburg:30°
Lateral Tilt(left/right):18°/18°
Head Rest(up/down):60°/90°
Footplate(up/down&horizontal positioning):15°/90° 90°
Back plate(up/down):90°/45°
Longitudinal Sliding:350mm
Kidney bridge elevation:110mm
Power:220v,50Hz,1.0kW
Standard Configuration:
* 1 Anaesthetic Screen
* 2 Shoulder Rest
* 2 Arm Support
* 2 Waist Suppport
* 2 Knee Crutch
* 2 Foot Plate
*2 Long Slider
Packing:
1 piece in a wooden case ;Meas:1300×770×1040mm;G/N.W:358/315KG
