(MS-TE190D) Full Hydraulic Electric Operation Surgical Table General Surgery Table

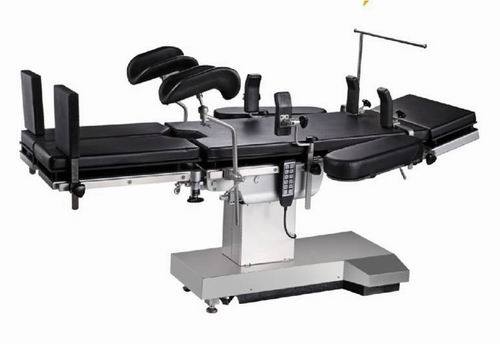

MS-TE190D Electric Operation Table

This model is optional model for MS-TE190C,It's without battery and O reset function.the technical datas will remain the same with normal MS-TE190C,can be sliding for C-arm and X-ray

Technical Data:

Lenth/width:1970mm/500mm

Elevation(up/down):690mm/1100mm

Trendelenburg:30°

Reverse Trendelenburg:30°

Lateral Tilt(left/right):18°/18°

Head Rest(up/down):60°/90°

Footplate(up/down&horizontal positioning):15°/90° 90°

Back plate(up/down):75°/35°

Longitudinal Sliding:350mm

Power:220v,50Hz,1.0kW

Standard Configuration:

* 1 Anaesthetic Screen

* 2 Shoulder Rest

* 2 Arm Support

* 2 Waist Suppport

* 2 Knee Crutch

* 2 Foot Plate

*2 Long Slider

Packing:

1PCS in a Box;Meas:1300×770×1040mm;G/N.W:350/300KG
