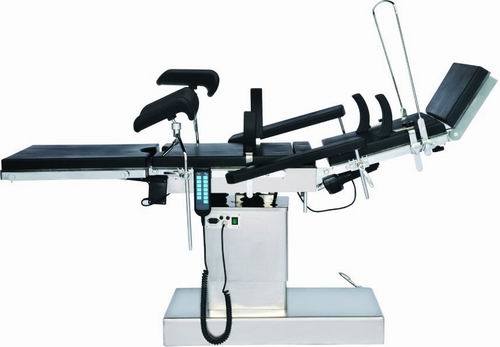

MS-TE210 Electric Operation Table
This electric operating table is suitable for surgical procedures of the head, neck, thorax, abdomen perineum and extremities as well as for gynaecological, obstetrical, urological, otorhino laryngological and orthopaedics operations. It's raising, lowering, lateral tilt, reversed trendelenburg and trendelenburg , the up-down folding of the back section and leg section, kidney bridge elevating are all conducted electrically and controlled by buttons.
Specifications:
Dimension of table top
Overall Length:2000mm
Width:500mm
Dimension of section
Head Section:250×500mm
Back Section:465×500mm
Seat section:450×500mm
Leg Section:600×240mm
Kidney Bridge:75×500mm
Table top of from floor
Max Height:820mm
Min Height:620mm
Range of movement
Reversed Tendelenburg:≥20°
Trendelenburg:≥15°
Lateral tilt:≥15°
Adjustment of sections
Head Section Raised from the horizontal: ≥45°
Head Section lowered from the horizontal:≥90°
Kidney Bridge Elevated:≥80mm
Leg Section Lowered from the horizontal:≥90°
Back Section Raised from the horizontal:≥45°
Back Section lowered from the horizontal:≥5°
