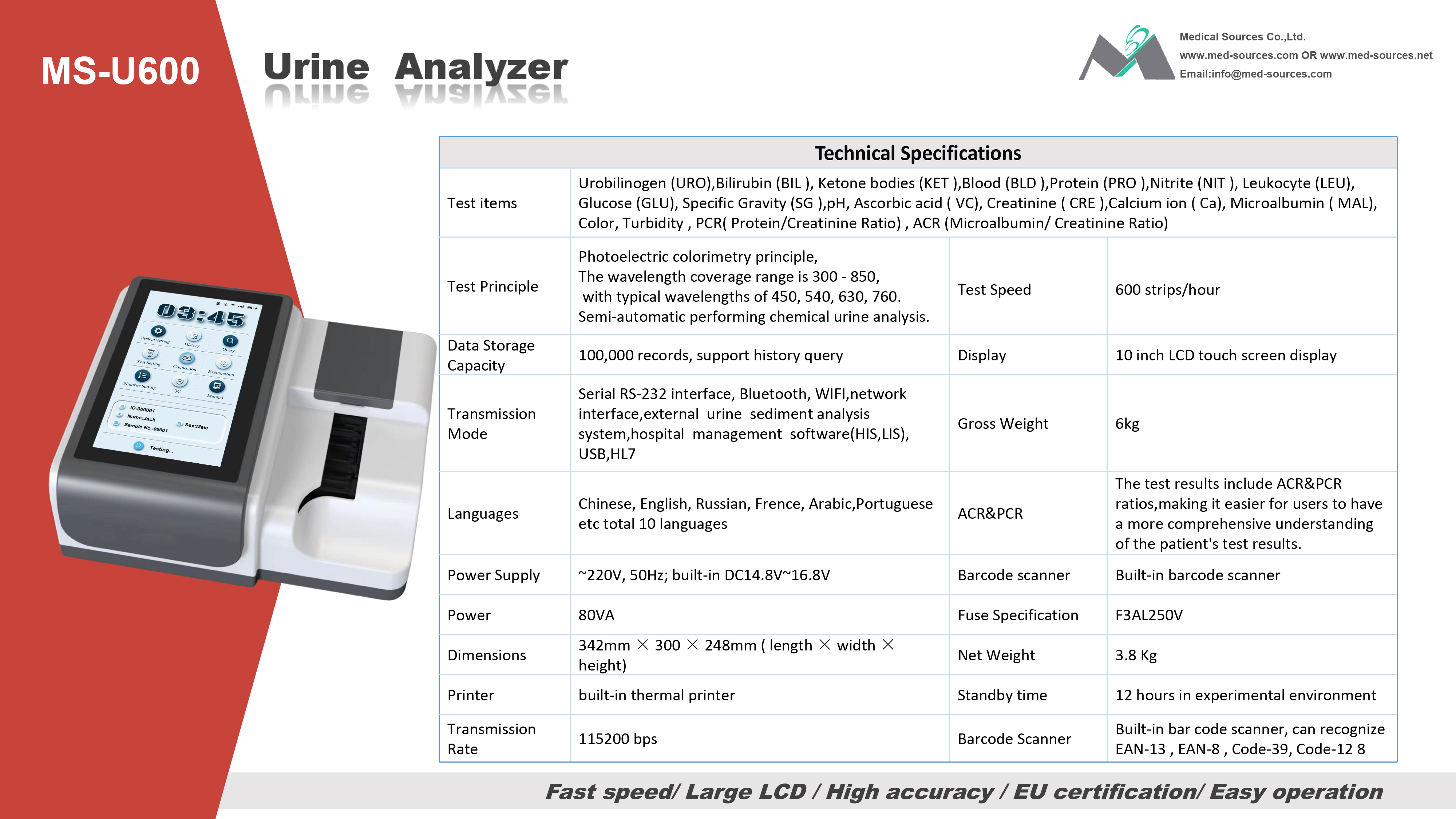

Technical Specifications |

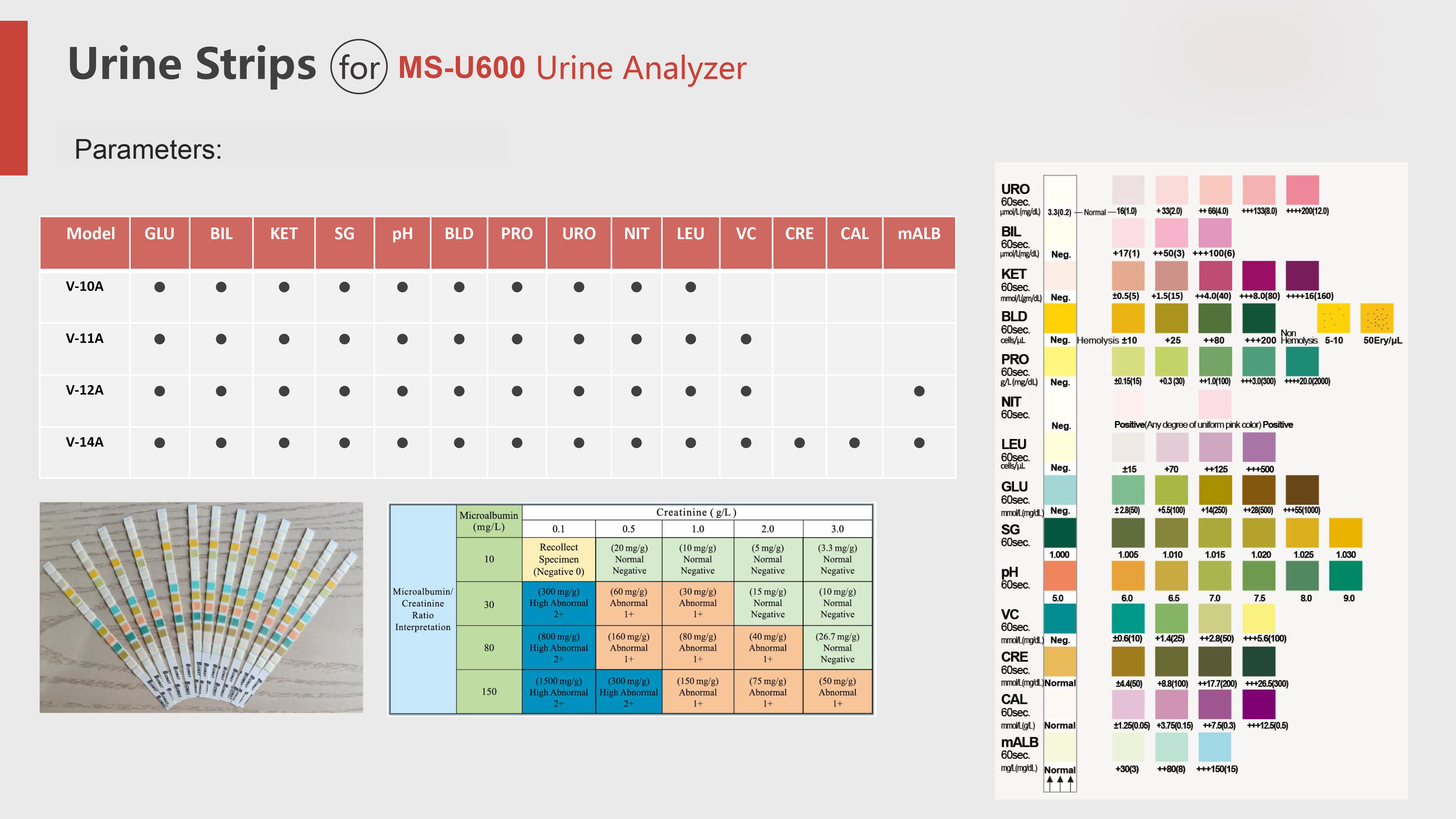

Test items | Urobilinogen (URO),Bilirubin (BIL ), Ketone bodies (KET ),Blood (BLD ),Protein (PRO ),Nitrite (NIT ), Leukocyte (LEU), Glucose (GLU), Specific Gravity (SG ),pH, Ascorbic acid ( VC), Creatinine ( CRE ),Calcium ion ( Ca), Microalbumin ( MAL), Color, Turbidity , PCR( Protein/Creatinine Ratio) , ACR (Microalbumin/ Creatinine Ratio) |

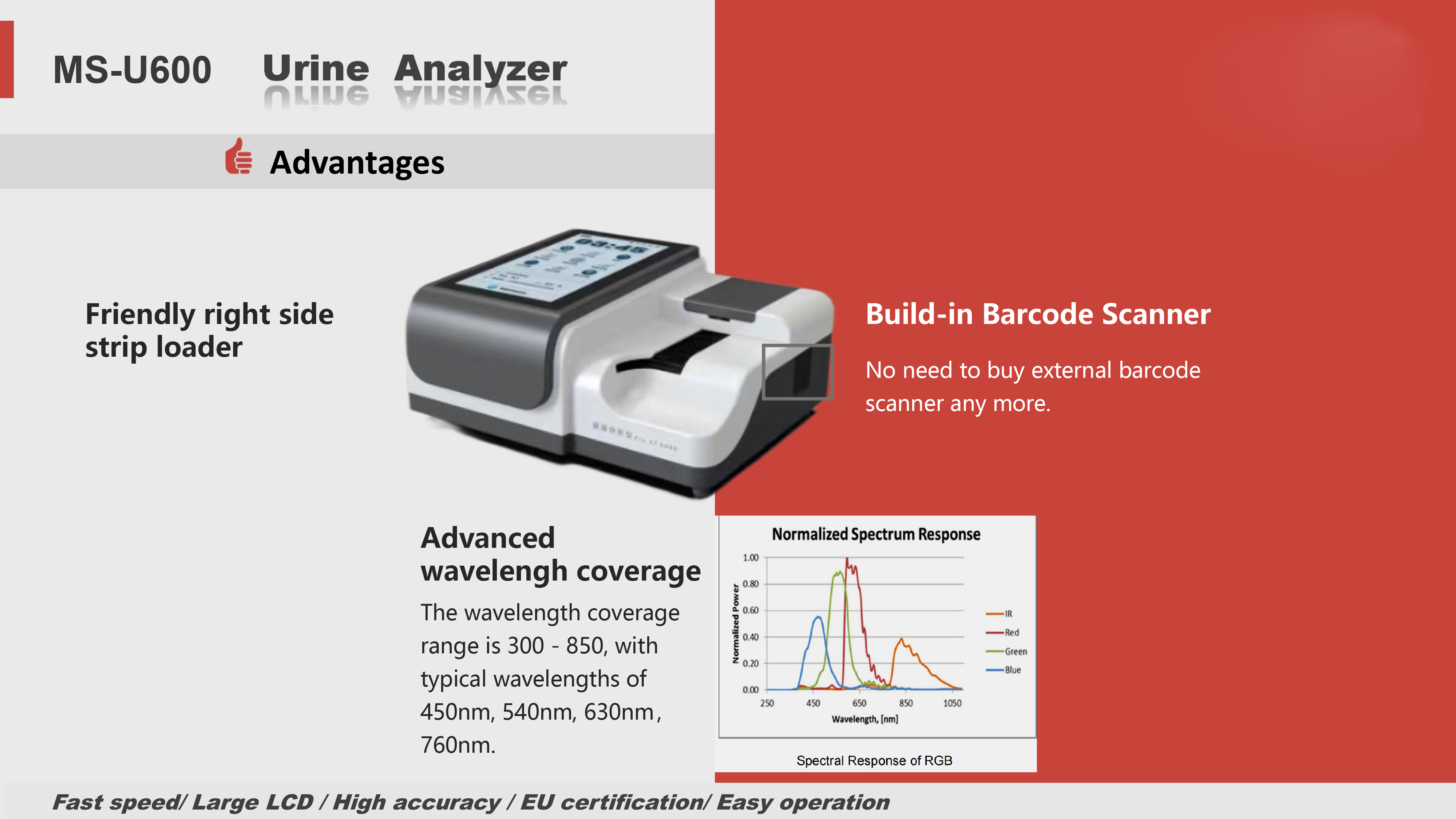

Test Principle | Photoelectric colorimetry principle, The wavelength coverage range is 300 - 850, with typical wavelengths of 450, 540, 630, 760. Semi-automatic performing chemical urine analysis. | Test Speed | 600 strips/hour |

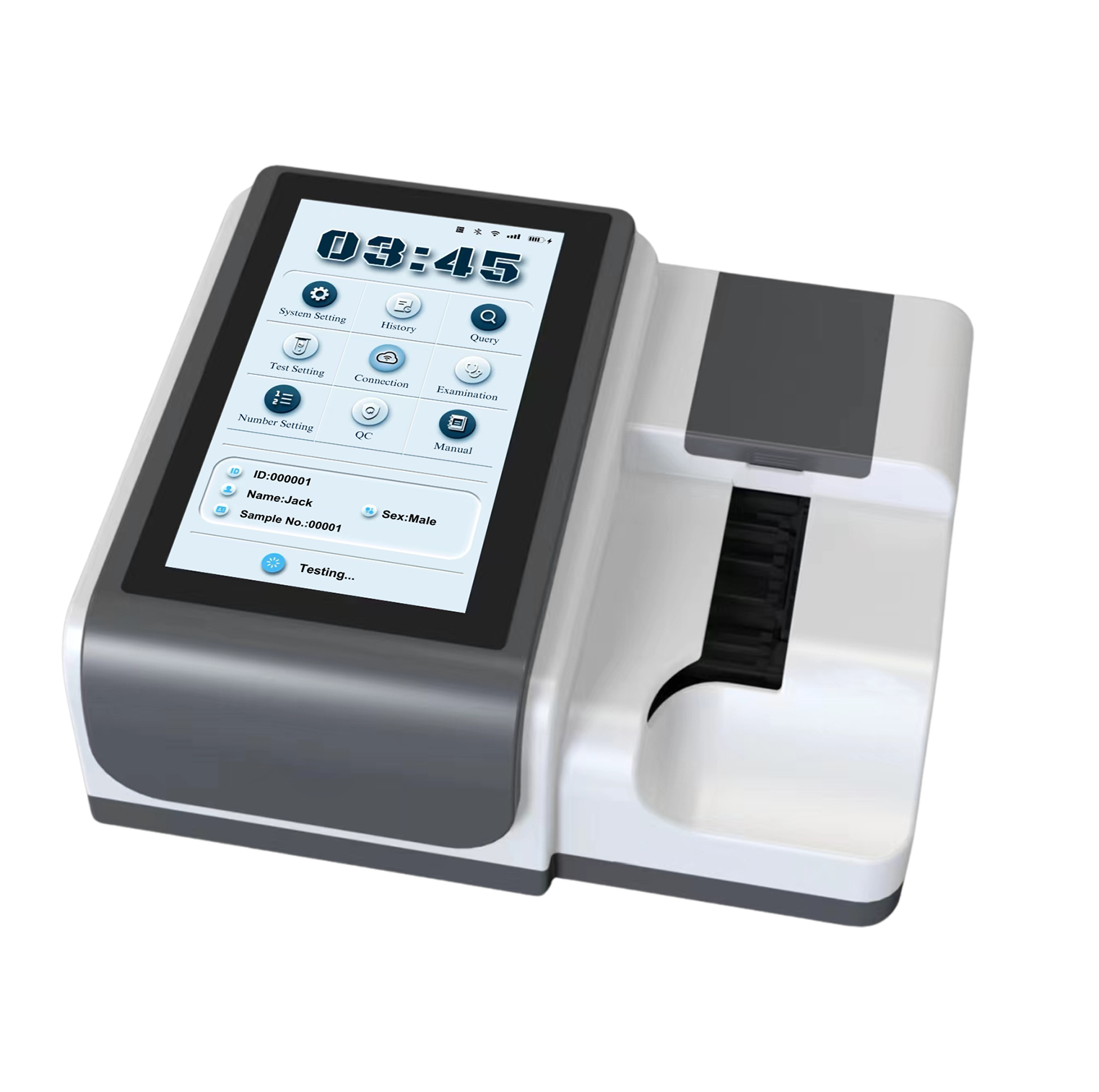

Data Storage Capacity | 100,000 records, support history query | Display | 10 inch LCD touch screen display |
Transmission Mode | Serial RS-232 interface, Bluetooth, WIFI,network interface,external urine sediment analysis system,hospital management software(HIS,LIS), USB,HL7 | Gross Weight | 6kg |
Languages | Chinese, English, Russian, Frence, Arabic,Portuguese etc total 10 languages | ACR&PCR | The test results include ACR&PCR ratios,making it easier for users to have a more comprehensive understanding of the patient's test results. |
Power Supply | ~220V, 50Hz; built-in DC14.8V~16.8V | Barcode scanner | Built-in barcode scanner |
Power | 80VA | Fuse Specification | F3AL250V |
Dimensions | 342mm × 300 × 248mm ( length × width × height) | Net Weight | 3.8 Kg |
Printer | built-in thermal printer | Standby time | 12 hours in experimental environment |
Transmission Rate | 115200 bps | Barcode Scanner | Built-in bar code scanner, can recognize EAN-13 , EAN-8 , Code-39, Code-12 8 |
