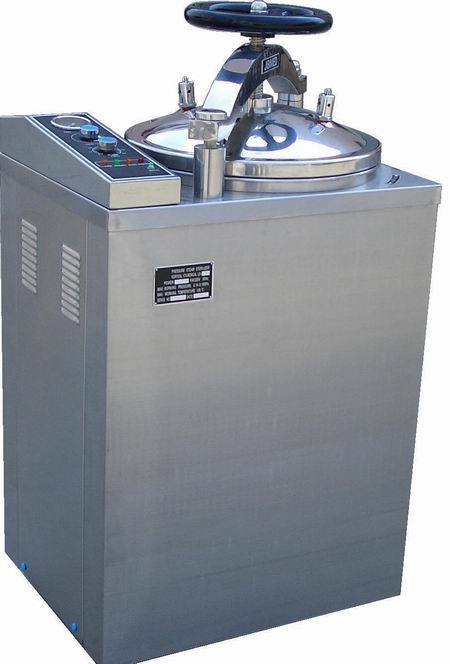

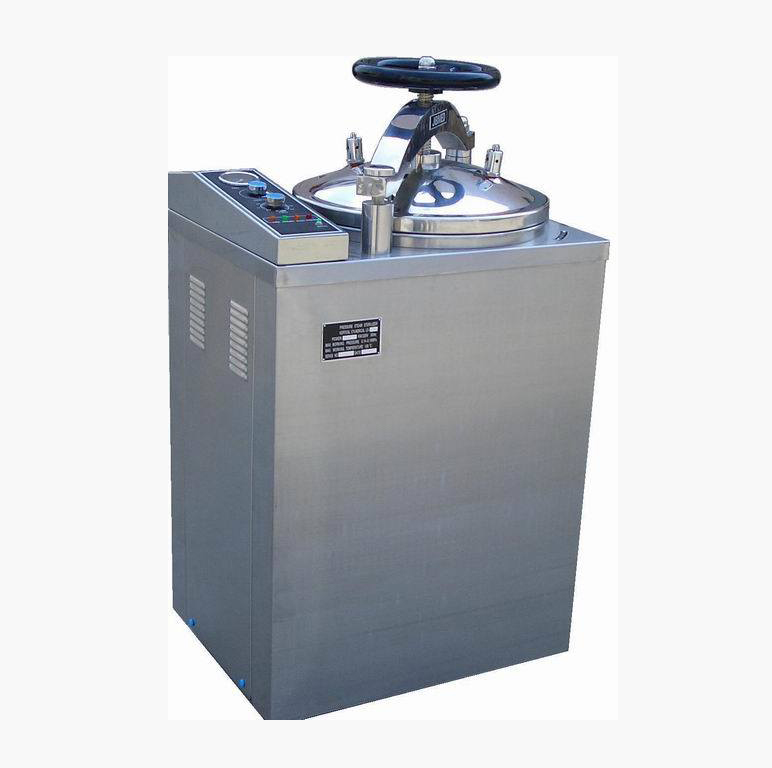

Vertical Pressure Autoclave ( Hand round automatic )
Characteristics:
1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Pressure safety lock
4.Indicator light indicates working state
5.Over temperature&over pressure auto-protection
6.Double scale indication pressure gauge
7.Self-inflating type seal
8.Safe protection of water lacking
9.Automatically shut off with beep reminding after sterilization
10.Easy to operate,safe and reliable
11.With two stainless steel sterilizing baskets

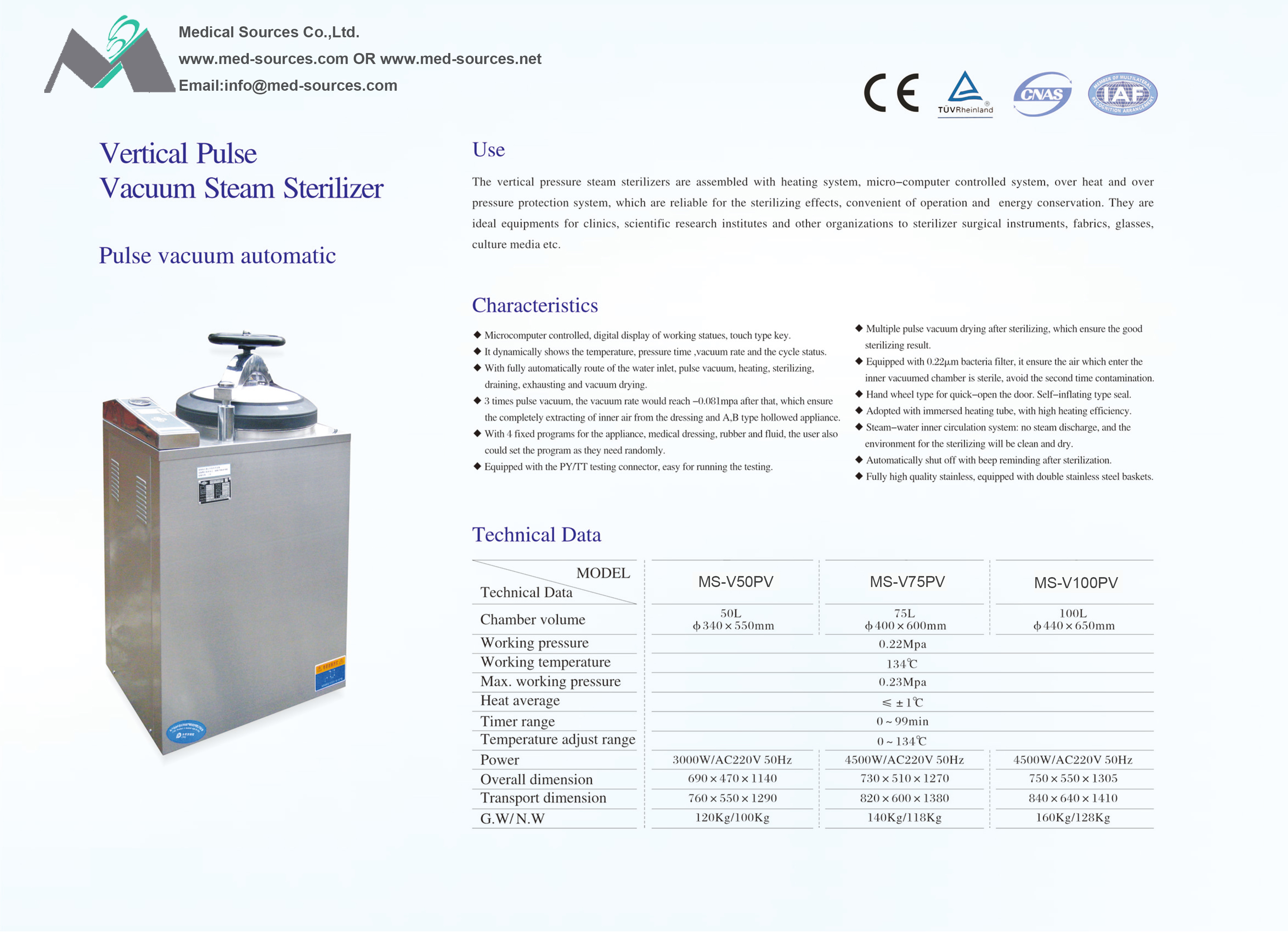

Technical Data:
Model | MS-V50PV | MS-V75PV | MS-V100PV |
technical data |
Chamber volume | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
working pressure | 0.22MPa | 0.14MPa |
Working temperature | 134ºC | 126ºC |
Max working pressure | 0.23MPa | 0.165MPa |
Heat average | ≤±1ºC |
Timer | 0~60min |
Adjustment of temperature | 105~134ºC | 105~126ºC |
Power | 3KW /AC220V.50Hz | 4.5KW /AC220V.50Hz |
Overall dimension | 690×470×1140(mm) | 730×510×1270(mm) | 750×550×1305(mm) |
Transport dimension | 760×550×1290(mm) | 820×600×1380(mm) | 840×640×1410(mm) |
G.W/N.W | 120Kg/ 100Kg | 140Kg/ 118Kg | 160Kg/ 128Kg |
