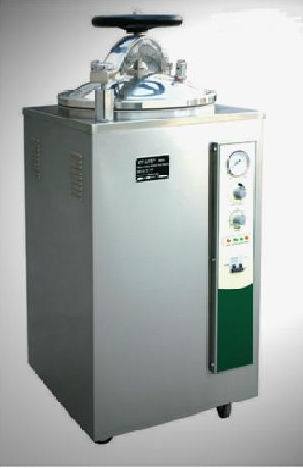

Electric-Heated Vertical Autoclave (hand round automatic)
Characteristics:
1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Pressure safety lock
4.Indicator light indicates working state
5.Over temperature & over pressure auto-protection
6.Double scale indication pressure gauge
7.Self inflating type seal
8.Safe protection of water lacking
9.Automatically shut off with beep reminding after sterilization
10.Easy to operate,safe and reliable
11.With two stainless steel sterilizing baskets
Technical Data:
Model | MS-V35L-I | MS-V50L-I | MS-V75L-I | MS-V100L-I |
technical data |
Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
working pressure | 0.22MPa | 0.14MPa |
Working temperature | 134ºC | 126ºC |
Max working pressure | 0.23 Mpa | 0.165MPa |
Heat average | ≤±1ºC |
Timer | 0~60min |
Adjustment of temperature | 105~134ºC | 105~126ºC |
Power | 2.5Kw/AC220V.50Hz | 3Kw /AC220V.50Hz | 4.5KW /AC220V.50Hz |
Overall dimension | 450×450×1010(mm) | 510×470×1130(mm) | 560×560×1120(mm) | 540×560×1250(mm) |
Transport dimension | 570×550×1150(mm) | 590×590×1280(mm) | 650×630×1280(mm) | 680×630×1370(mm) |
G.W/N.W | 72Kg/ 56Kg | 88Kg/ 68Kg | 100Kg/80Kg | 110 Kg/85Kg |
