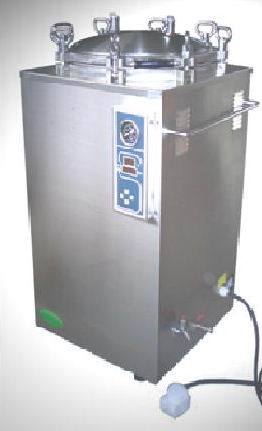

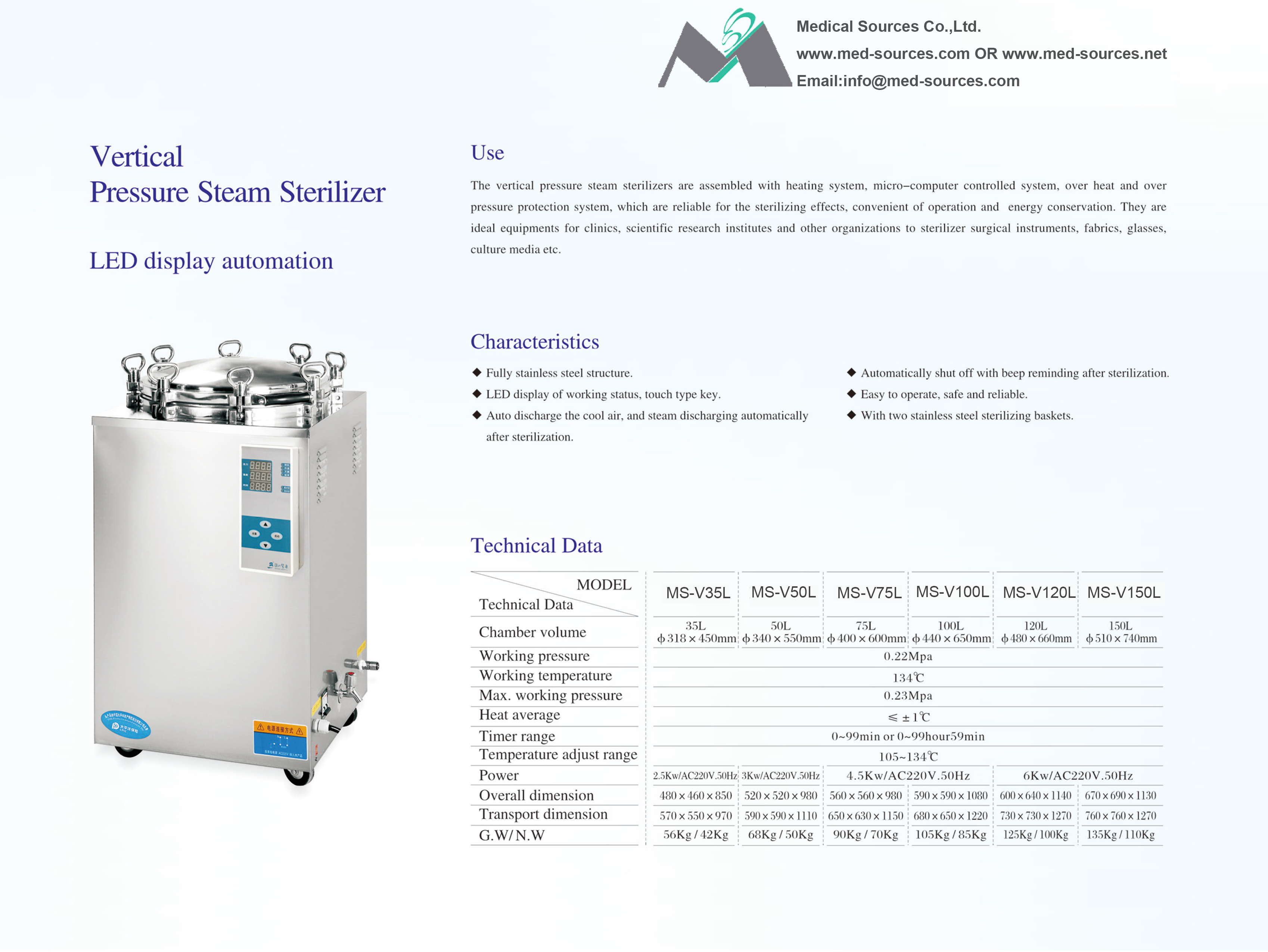

Vertical Pressure Autoclave (Digital Display Automation )
Characteristics:
1.Fully stainless steel structure
2.Digital display of working status,touch of key
3.Auto discharge the cool air,and steam discharging automatically after sterilization
4.Automatically shut off with beep reminding after sterilization
5.Easy to operate,safe and reliable
6.With two stainless steel sterilizing baskets
7.The drying system is optional,which can be equipped according to the customers request
Technical Data:
Model technical data | MS-V35L(automatic) | MS-V50L(automatic) | MS-V75L(automatic) | MS-V100L(automatic) |
Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
working pressure | 0.22MPa |
Working temperature | 134ºC |
Max working pressure | 0.23 Mpa |
Heat average | ≤±1ºC |
Timer | 0~99min or 0~99hour59min |
Adjustment of temperature | 105~134ºC |
Power | 2.5Kw/AC220V.50Hz | 3Kw /AC220V.50Hz | 4.5KW AC220V.50Hz |
Overall dimension | 480×460×850(mm) | 520×520×980(mm) | 560×560×980(mm) | 590×590×1080(mm) |
Transport dimension | 570×550×970(mm) | 590×590×1110(mm) | 650×630×1150(mm) | 680×650×1220(mm) |
G.W/N.W | 56Kg/ 42Kg | 68Kg/50Kg | 90Kg/70Kg | 105Kg/85Kg |
