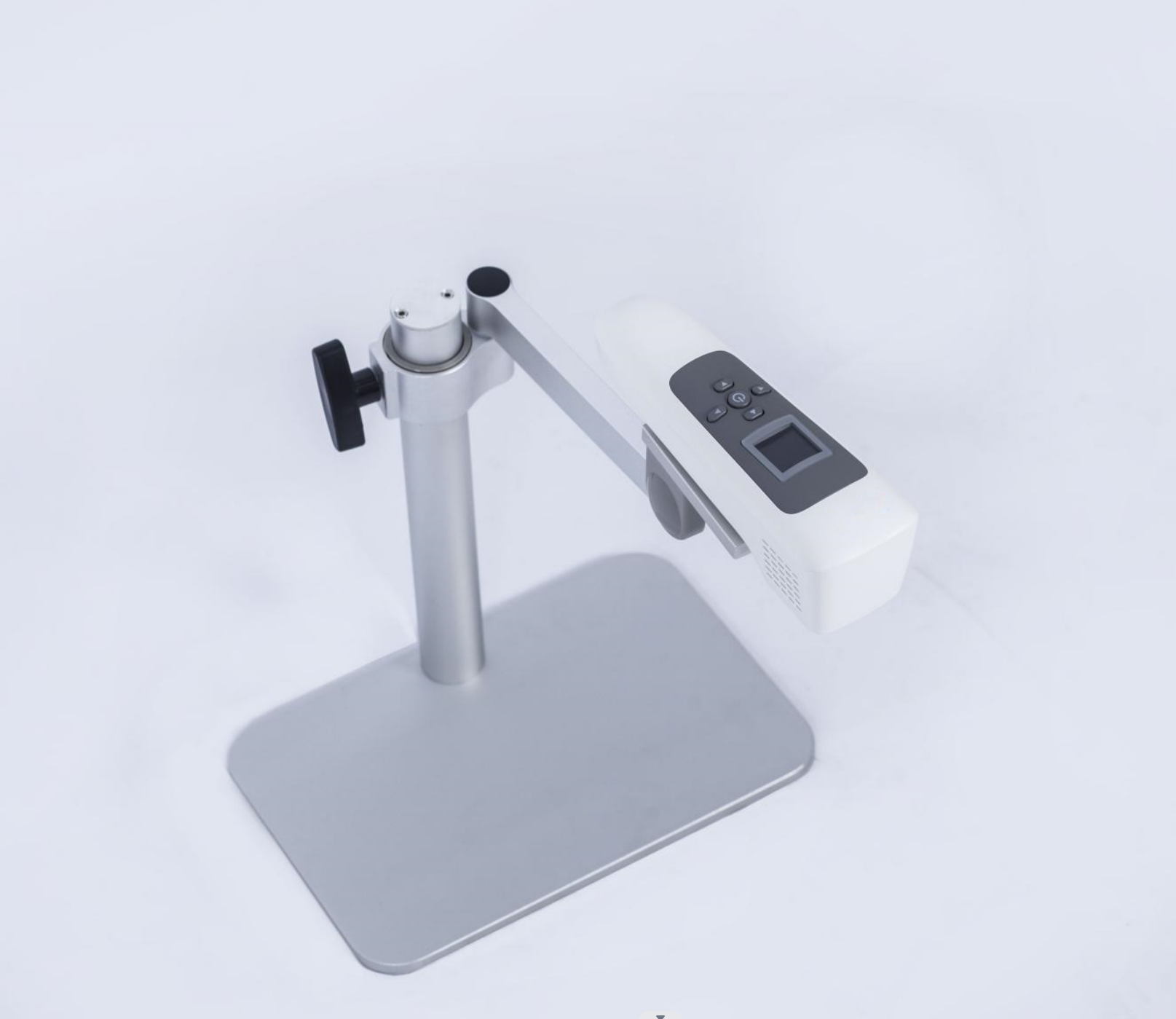

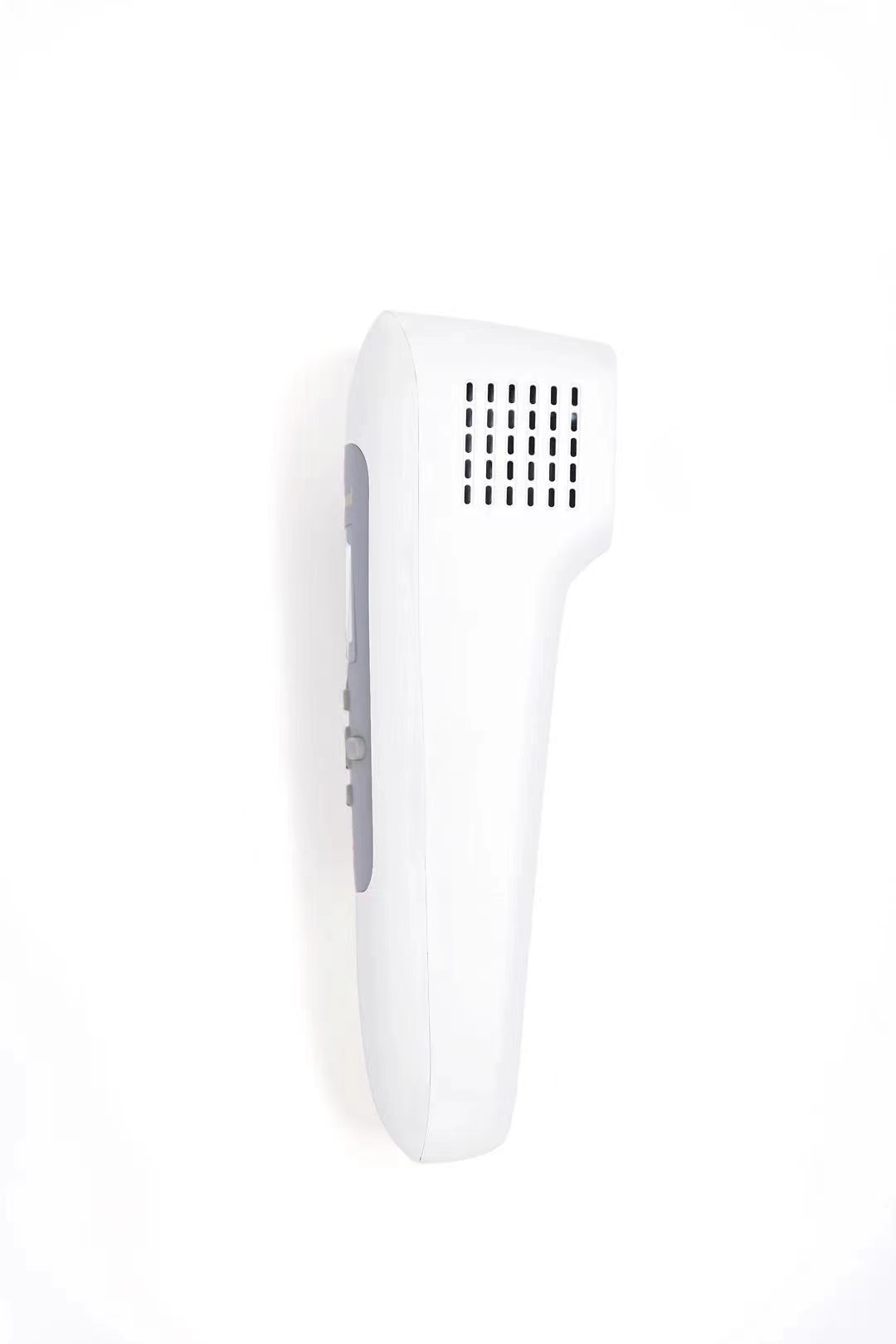

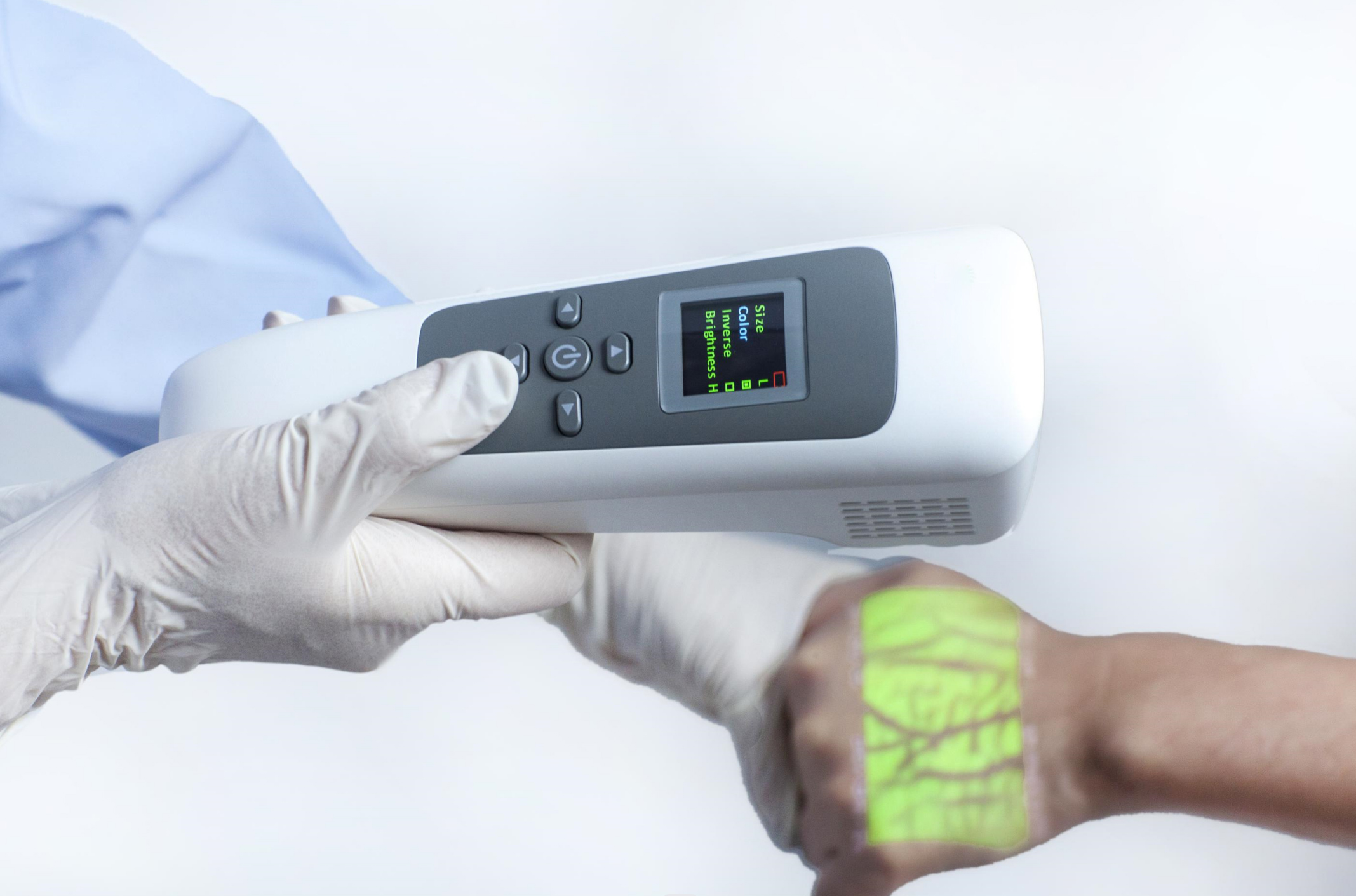

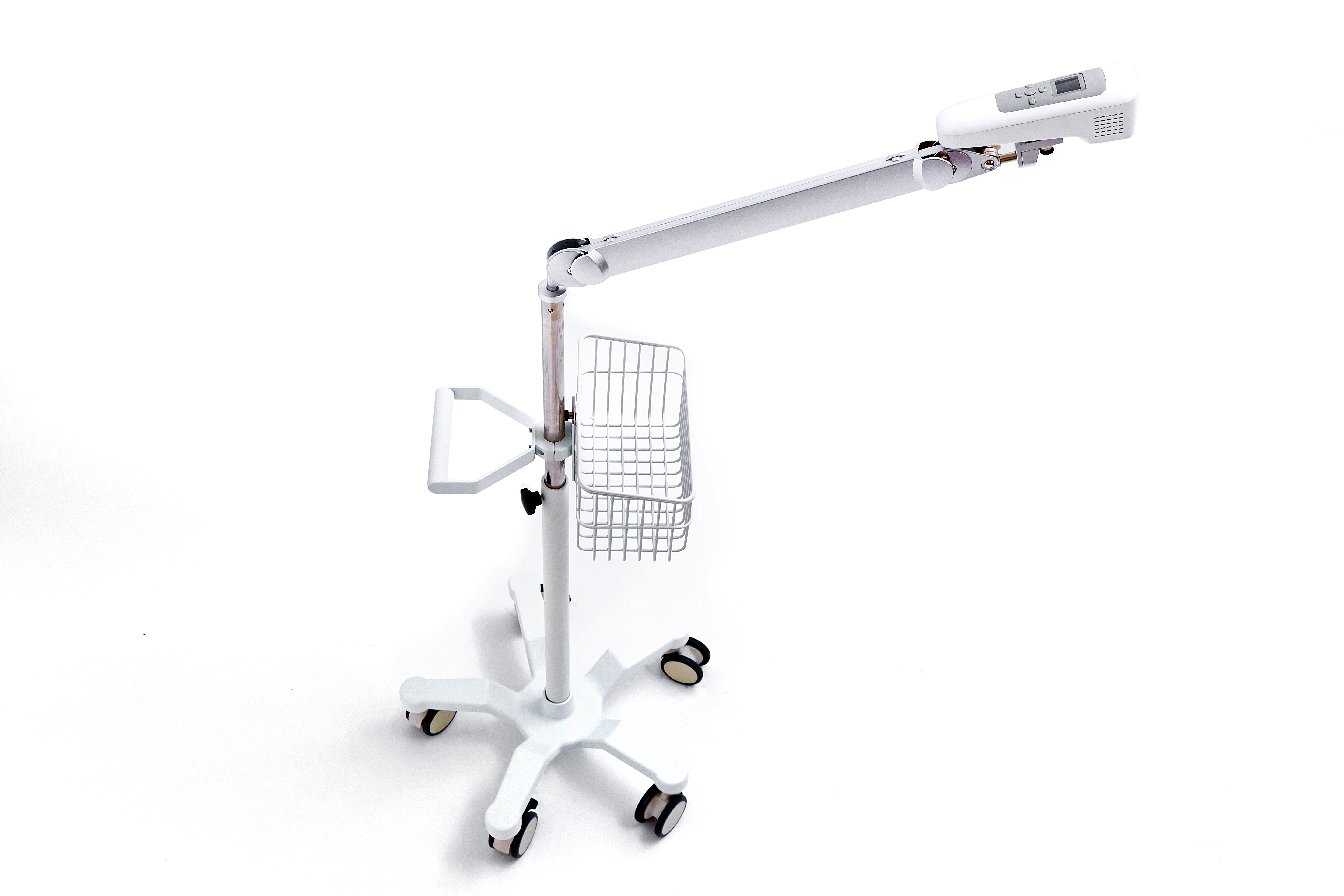

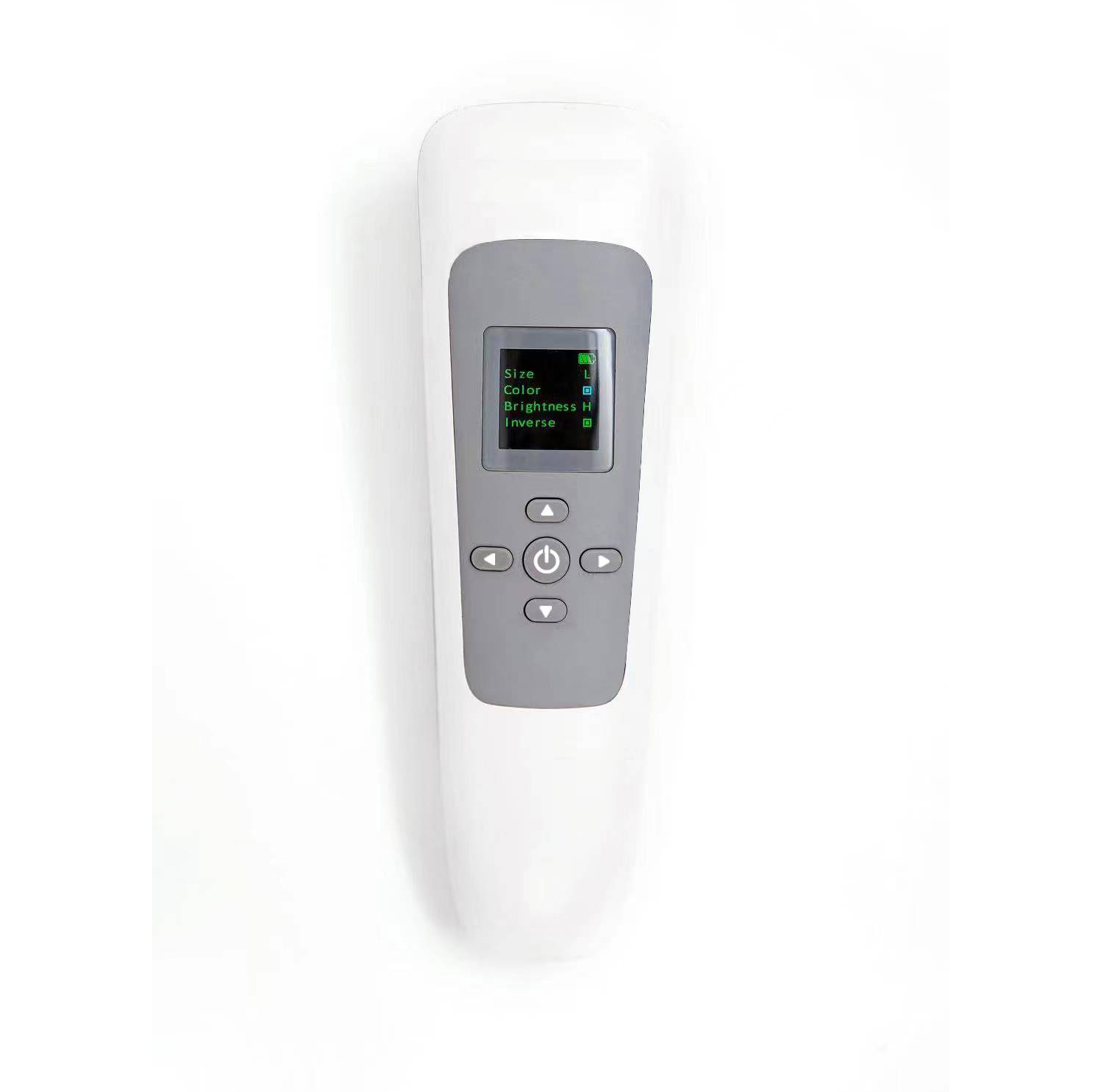

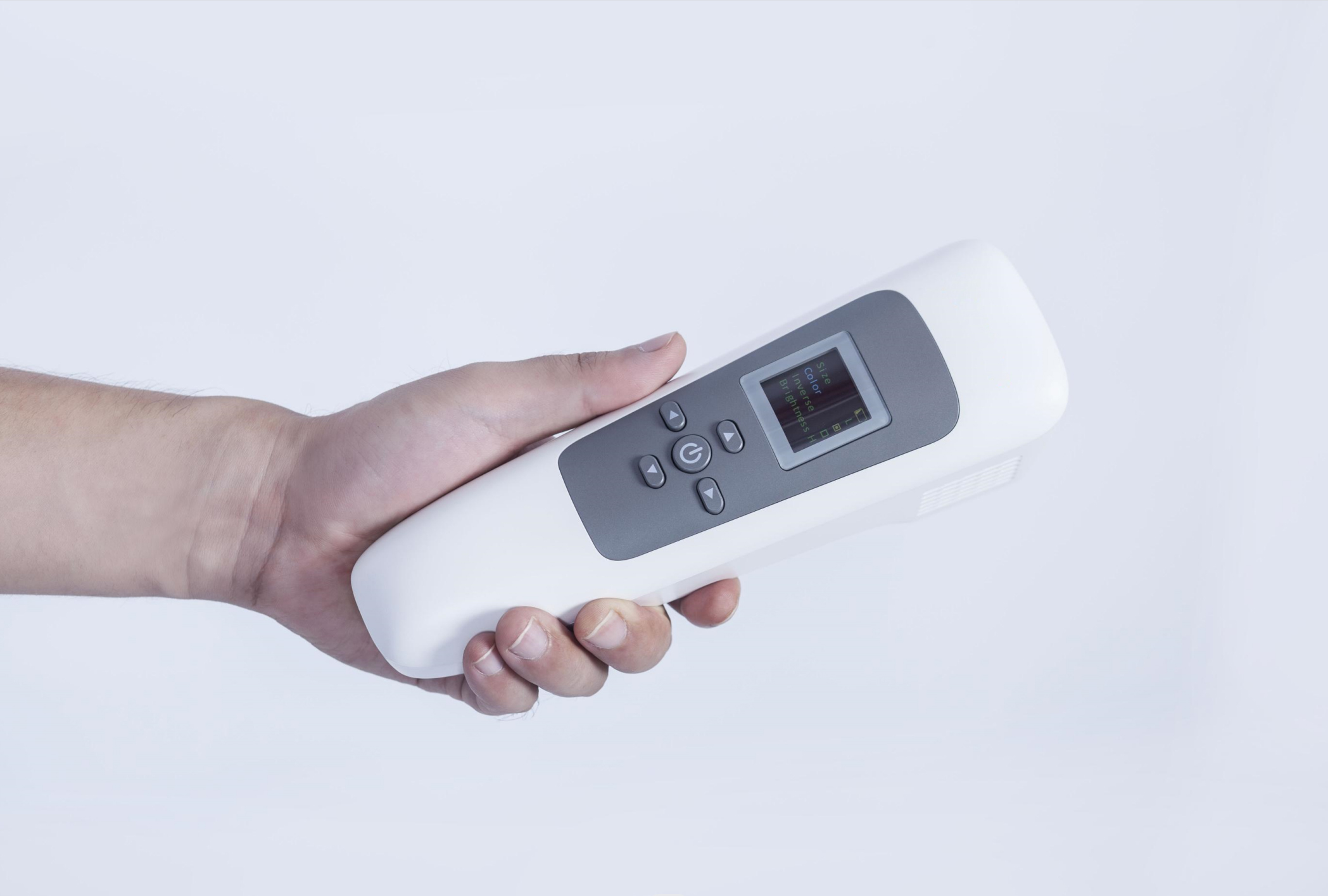

MS-VF700 is a notable device which is used to help infusion nurse and clinicians to locate the vasculature on the surface of the skin in avisualized and real time way,allowing cliniciansto verify vein patency and avoid valves or bifurcations.It is handheld and lightweight,easily converts to hands-free with the use of optional wheeled or fixed stands.
Reducing the risk of failure in venipicture.
Satisfy your patient.
Relieve the tension between clinicians and patients.
Control the cost of Venipuncture.
Feature;
1.3''LED display,simple to use.
350g,light weight and portable design.
3 different image size are selectable,suitable for adult,pediatric and neonate.
3 types of display mode,basic,inverse and enhance,meet all the request for a best vasculature map.
10 kinds of color display,design according to different user preference2 kinds of freehand solution is optional,mobile stand and fixed support.
Specification
Display
| LED Display
|
Infrared Wavelength
| 850nm
|
Image Resolution
| 856*480 pixel
|
Visible Vein Size
| ≥1mm
|
Penetration Depth
| ≤8mm
|
Optimal lmaging Distance e
| 15~25cm
|
Operating Mod | Basic Mode,Inverse Mode,Enhance Mode
|
Image Color
| Single Color and Mixed Color
|
Image Size
| Single Color and Mixed Color
|
Brightness
| Large(L),Medium(M),Small(S)
|
Power Supply
| High(H),Medium(M),Low(L)
|
Battery Life
| Rechargeable Lithium Battery(3000mAh),DC 5V 2A
|
Net Weigh
| 2 Hours after fully charged 350g
|
Dimension
| 21.2x6.6x6.5cm
|
