MS-VF700A Vein finder
Vein finder Features
The vein finder mainly takes the advantage of the blood hemoglobin absorption for near-infrared light stronger than other tissues, it makes the superficial blood vessels visualized through the vein visualization technology; it is helpful to find, evaluate and position the superficial blood vessels, etc.; it can effectively improve patients satisfaction, reduce nursespsychological pressure, reduce work intensity, and protect the doctors and patients from venipuncture issues. It is widely used in Emergency, Outpatient, Pediatrics, Geriatrics, ICU, Dermatology, Hemodialysis Centers, and Cosmetology departments.

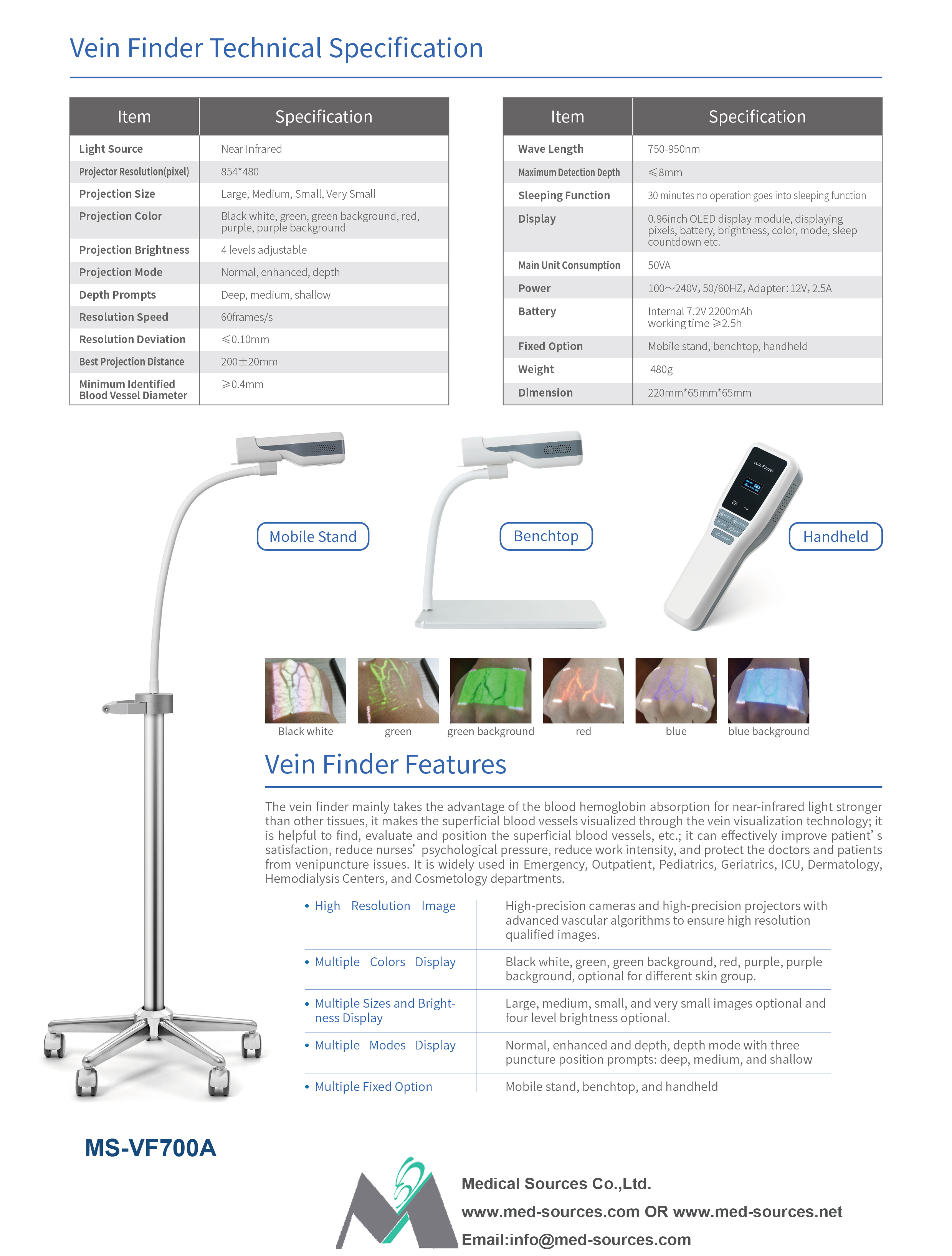

Technical specification
Item | specification |
Light Source | Near Infrared |
Projector Resolution(pixel) | 854*480 |
Projection Size | Large, Medium, Small, Very Small |
Projection Color | Black white, green, green background, red, purple, purple background |
Projection Brightness | 4 levels adjustable |
Projection Mode | Normal, enhanced, depth |
Depth Prompts | Deep, medium, shallow |
Resolution Speed | 60frames/s |
Resolution Deviation | ≤0.10mm |
Best Projection Distance | 200±20mm |
Minimum Identified Blood Vessel Diameter | ≥0.4mm |
Wave Length | 750-950nm |
Maximum Detection Depth | ≤8mm |
Sleeping Function | 30 minutes no operation goes into sleeping function |
Display | 0.96inch OLED display module, displaying pixels, battery, brightness, color, mode, sleep countdown etc. |
Main Unit Consumption | 50VA |
Power | 100～240V，50/60HZ，Adapter：12V，2.5A |
Battery | Internal 7.2V 2200mAh working time ≥2.5h |

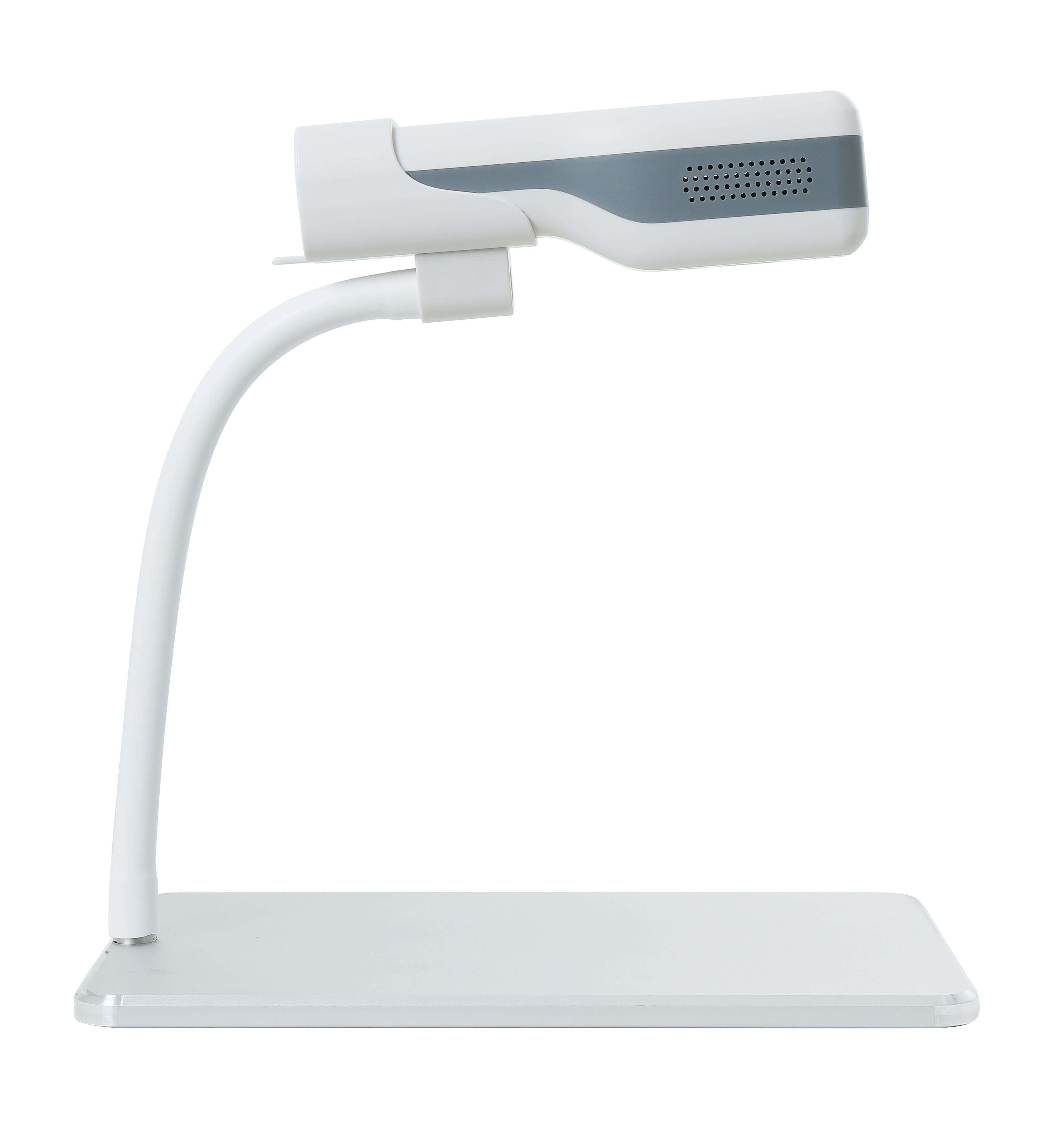

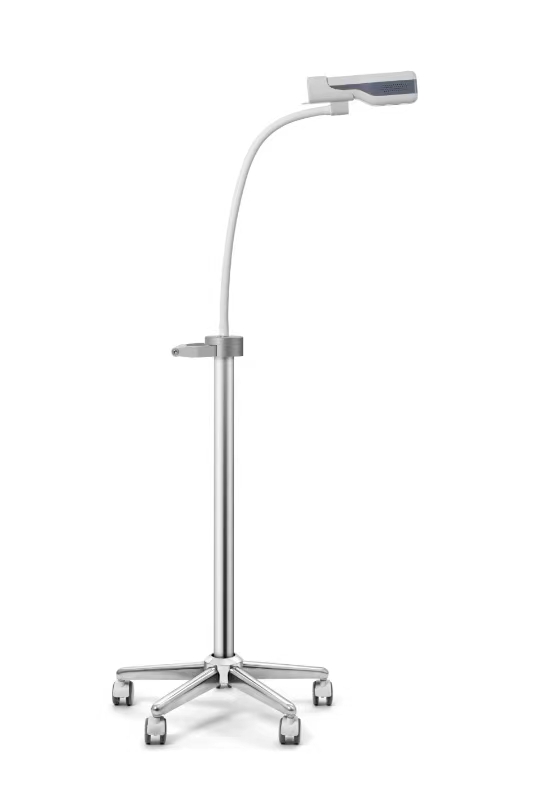

fixed Option | Mobile stand, benchtop, handheld |
Weight | 480g |
Dimension | 220mm*65mm*65mm |
