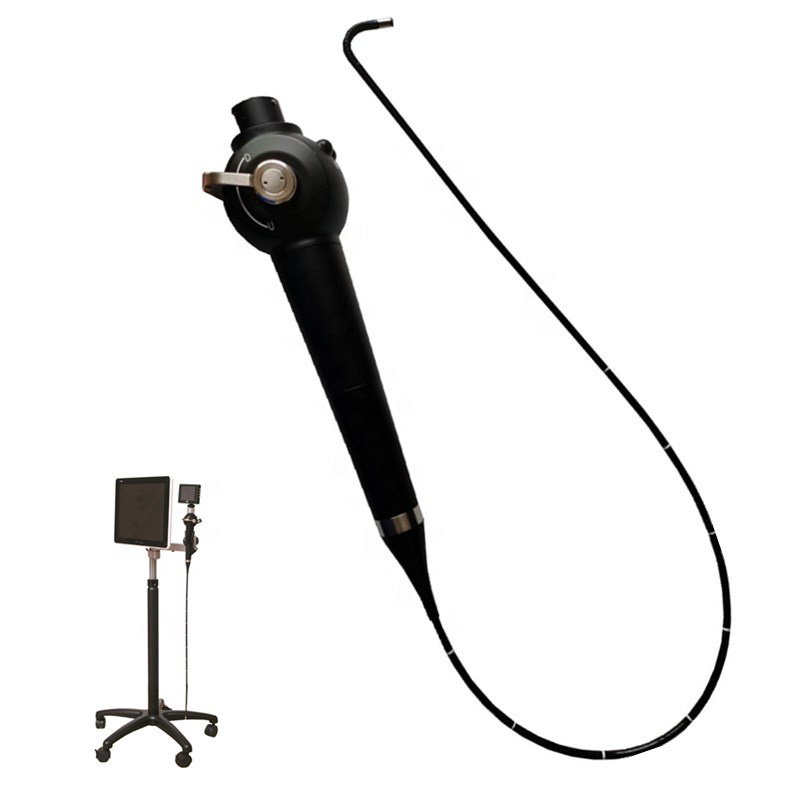

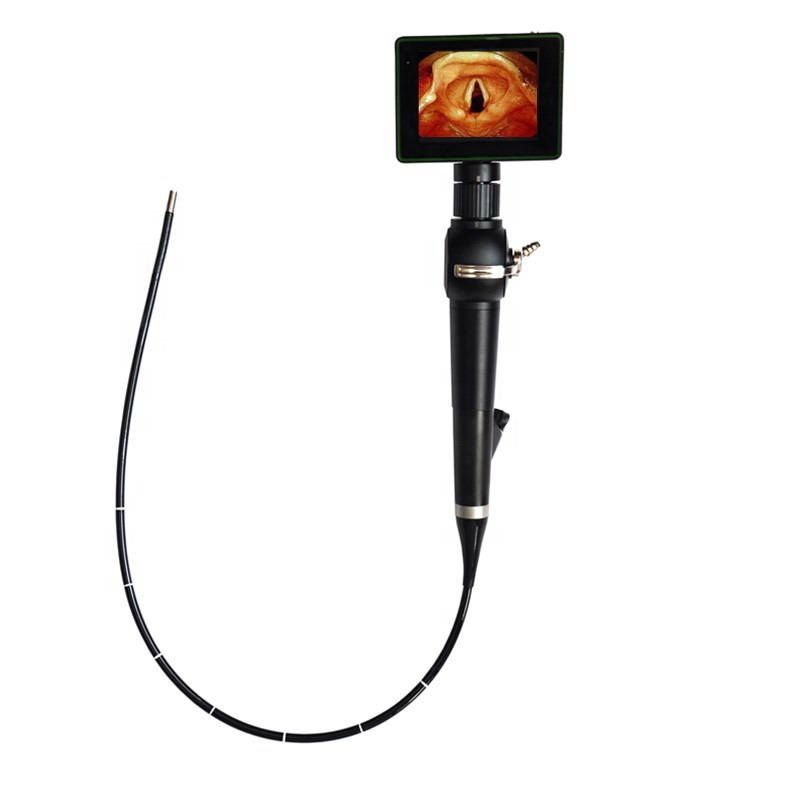

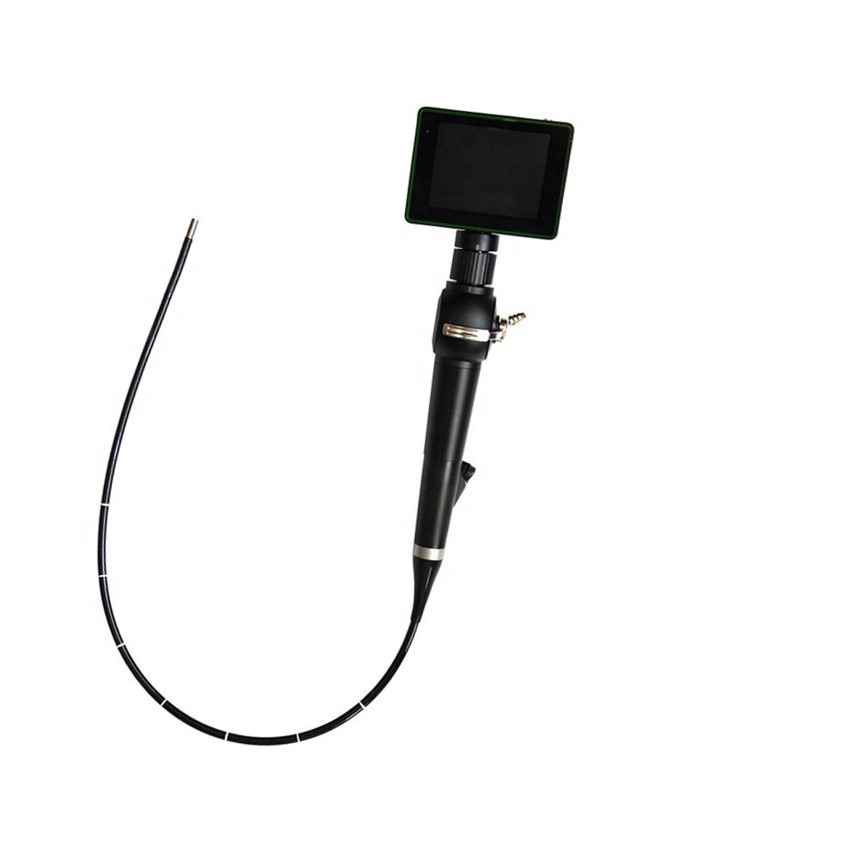

MS-VLS600 Flexible Video Laryngoscope
Application:
Anesthesia department, ICU, NICU, emergency department, respiratory department and so on.

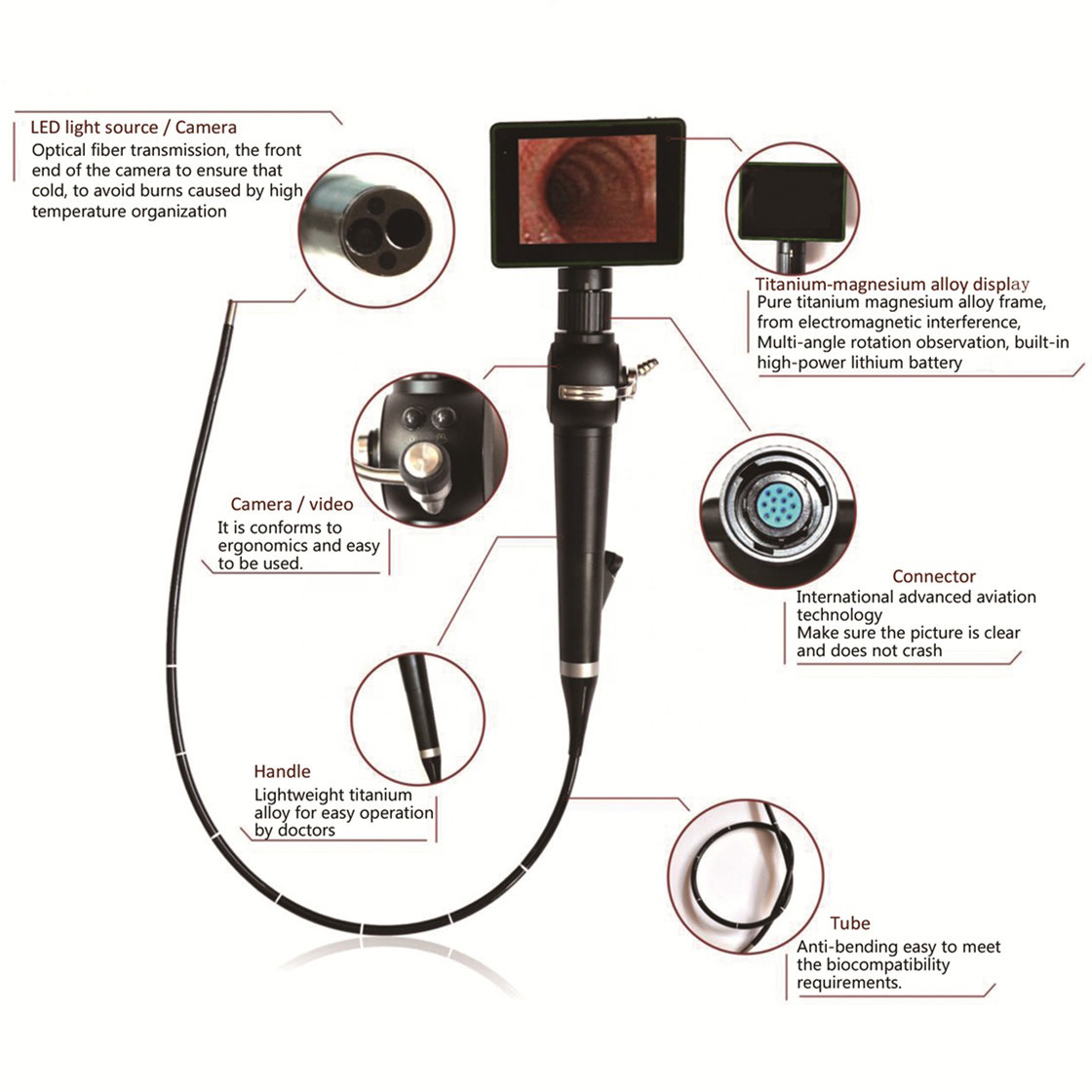

Features:
1. Monitor front and rear, left and right multi-angle rotation observation.
2. Flexible intubation bending flexible, can be through the mouth or nasal cannula.
3. According to customer needs with a variety of laryngoscopes, tracheal tubes, trolleys and other tools, the establishment of anesthesia intubation workstation.

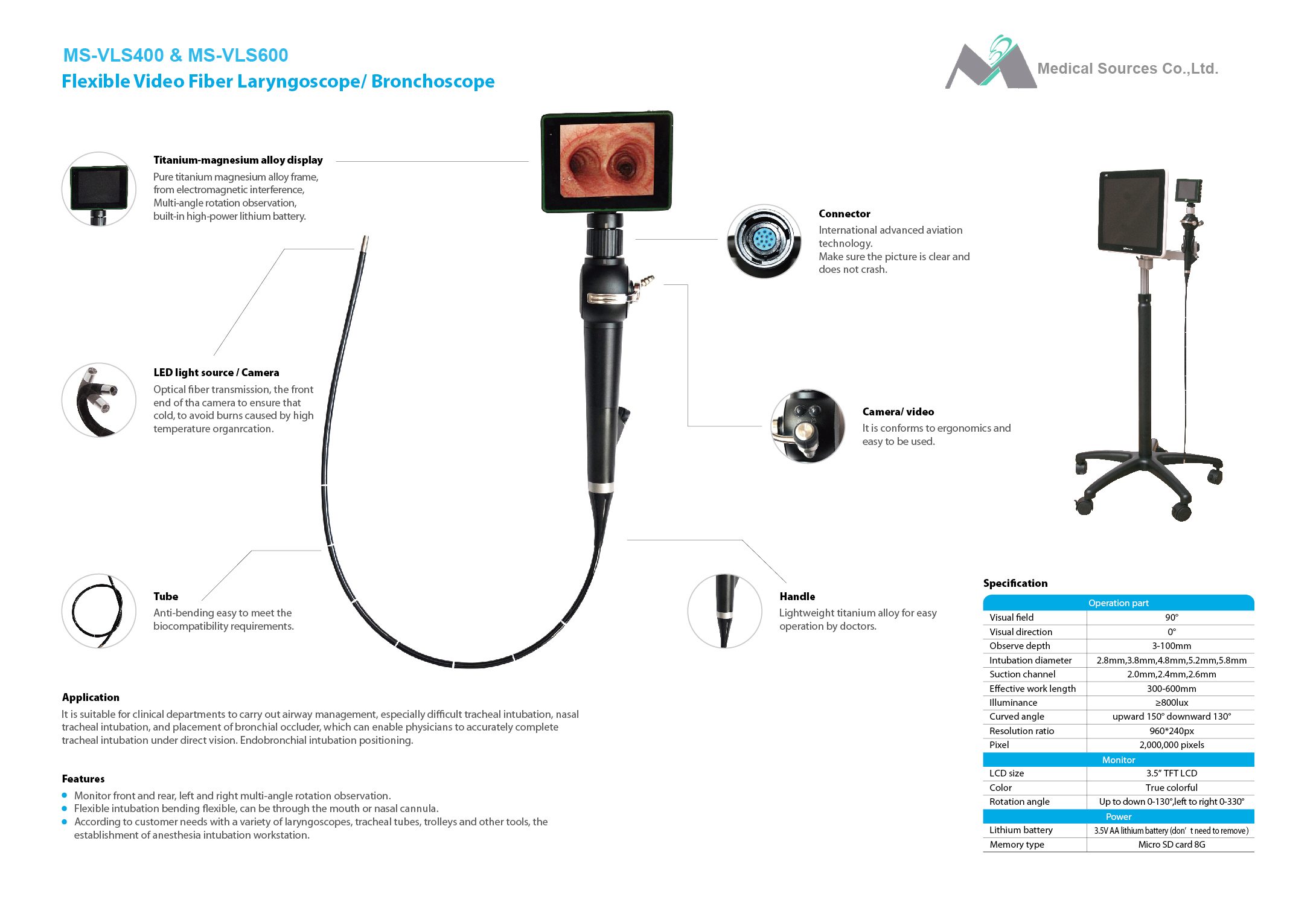

Specifaction:
Model Item: MS-VLS600
Visual Field | 90° |
Visual direction | 0° |
observe depth | 3-100mm |
Intubation Tube out diameter | 2.8mm,3.8mm 4.8mm, 5.2mm, 5.8mm |
suction channel | 1.5mm,2.0mm,2.4mm,2.6mm |
working length | 300mm-600mm |
curved angle | upward≥180° downward≥ 130° |
resolution ratio | 960*480 |
pixel | 600,000 pixels |
LCD diplay size | 3.5” TFT LCD |
display Revolve angle | Up to down 0-180°,left to right 0-330° |
power lithium battery /capacity | 3.7V polymer battery (don’t need to remove),1850mA |
charge time | > 600 times |
data save method | 16G memory card,stored> 10,000pcs photos,video≥4.5 hours. |
Charger input | AC 100-240V, 50-60Hz |
After-sales service | 2years |

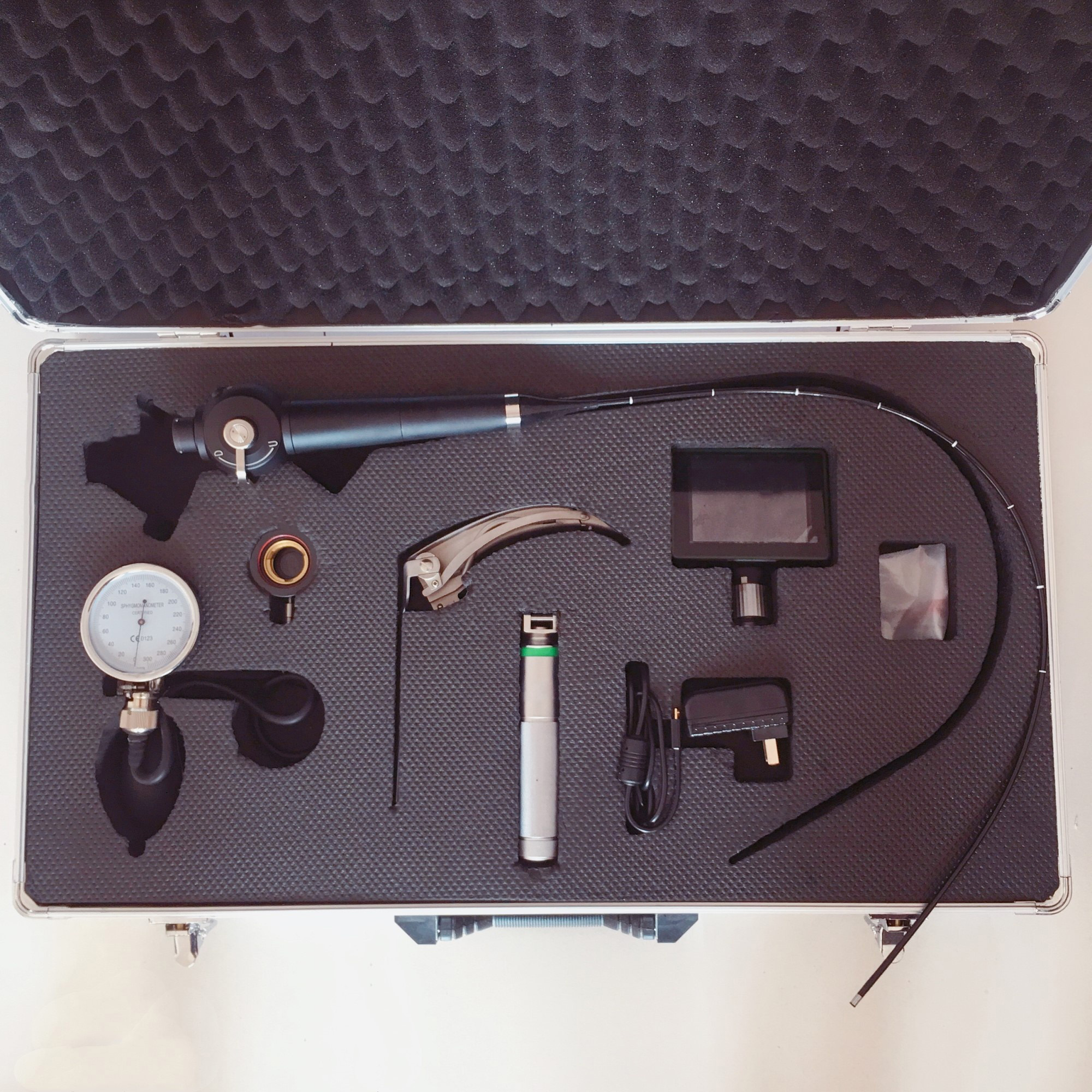

Product Configuration:
ITEM | QTY | MATERIAL |
3.5inch display | 1set | aluminum magnesium alloy |
operative section | 1pc | aluminum magnesium alloy |
Recharger battery | 1pc | PC |
laryngoscope | 1set | 304 medical stainless steel |
Leak detector | 1pc | plastic |
Sealing Ring | 2pcs | rubber |
SD save card | 1pc | plastic |
Leak cover | 1pc | aluminum |
Optional : endoscopy trolley, disinfection tank, biopsy forceps, laveur ,Disinfection gun,bronchoscope locker.......
Operation procedure:
1. Firstly, lubricate the endotracheal tube and endoscopic insertion tube.
2. Insert the endotracheal tube and fix the hose to the endotracheal tube connector.
3. Open the endoscope and check the bending of the end.
4. Insert the endoscope into the patient's mouth with mandibular thrust.
5. Insert it into the end of the screen and adjust it downward in time to keep a clear view of the screen.
6. Locate the epiglottis area, then adjust the control knob to properly bend the end, and gently rotate the control handle to slide the end through the affected epiglottis area.
Find the vocal cords.
8. Hold the endoscope and push the trachea catheter to rotate quickly into the patient.
9. Quickly draw out the endoscope and insert the tube and observe the display screen to check the correct position of the endotracheal tube.
10. Quickly connect the trachea catheter to the ventilator.
