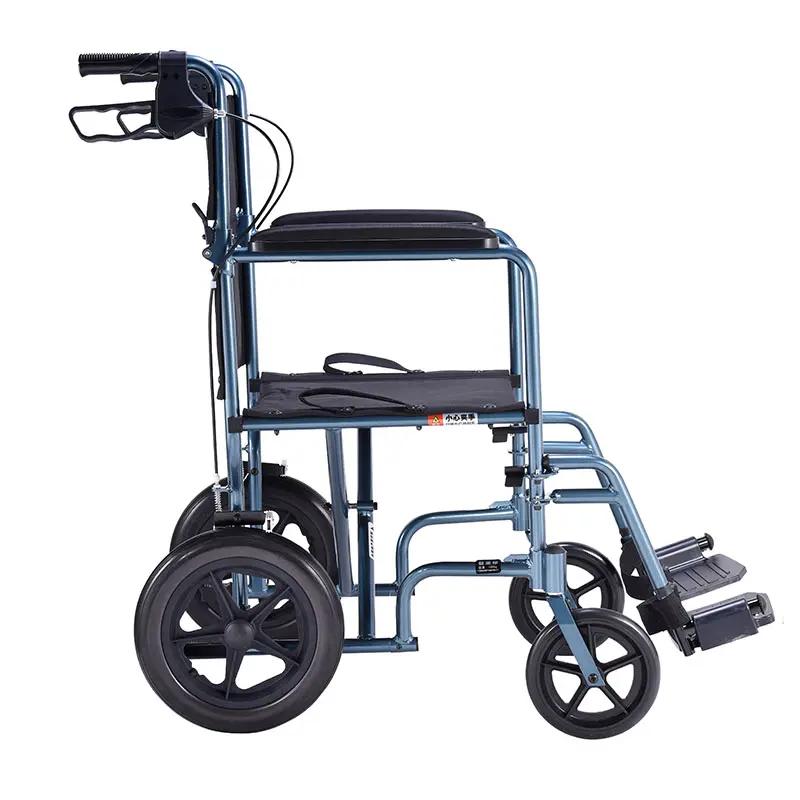

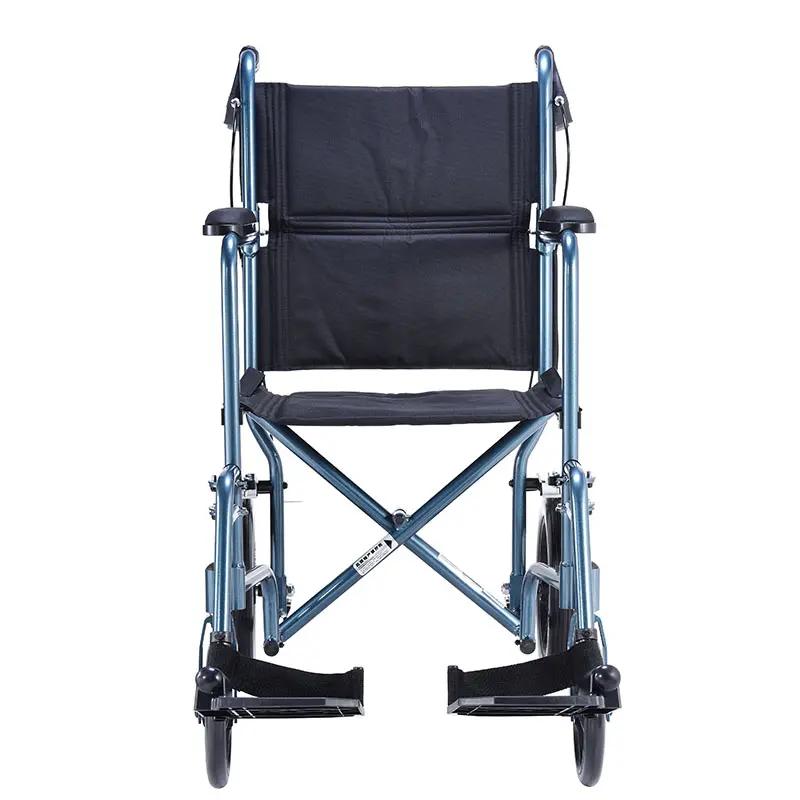

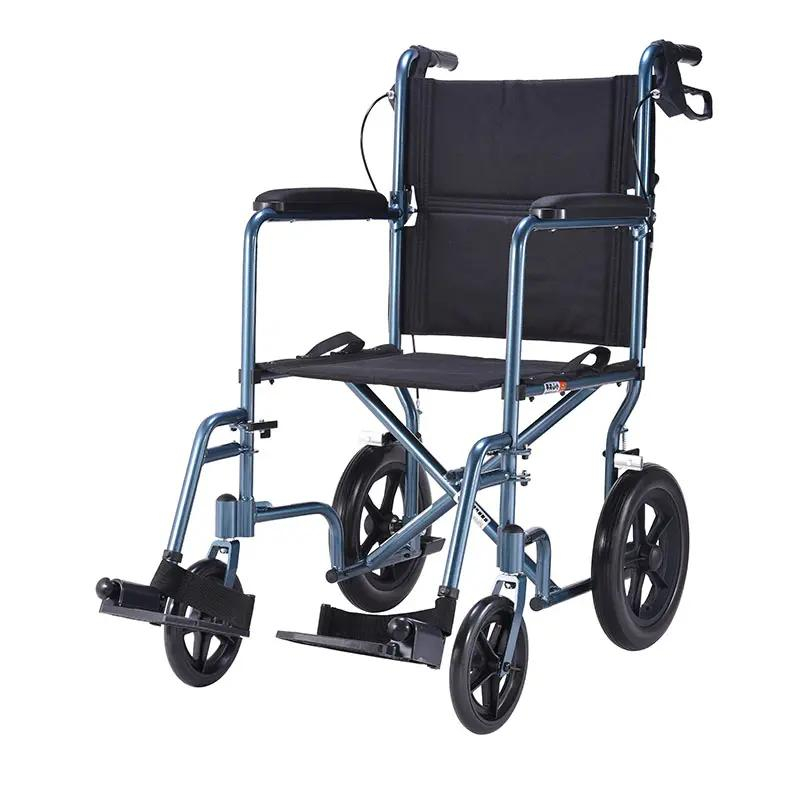

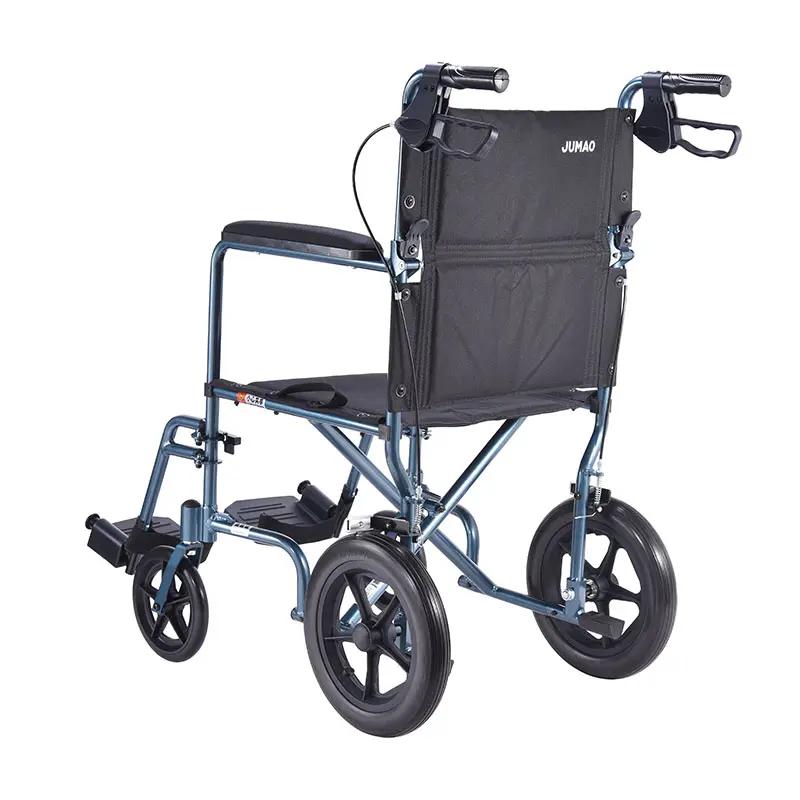

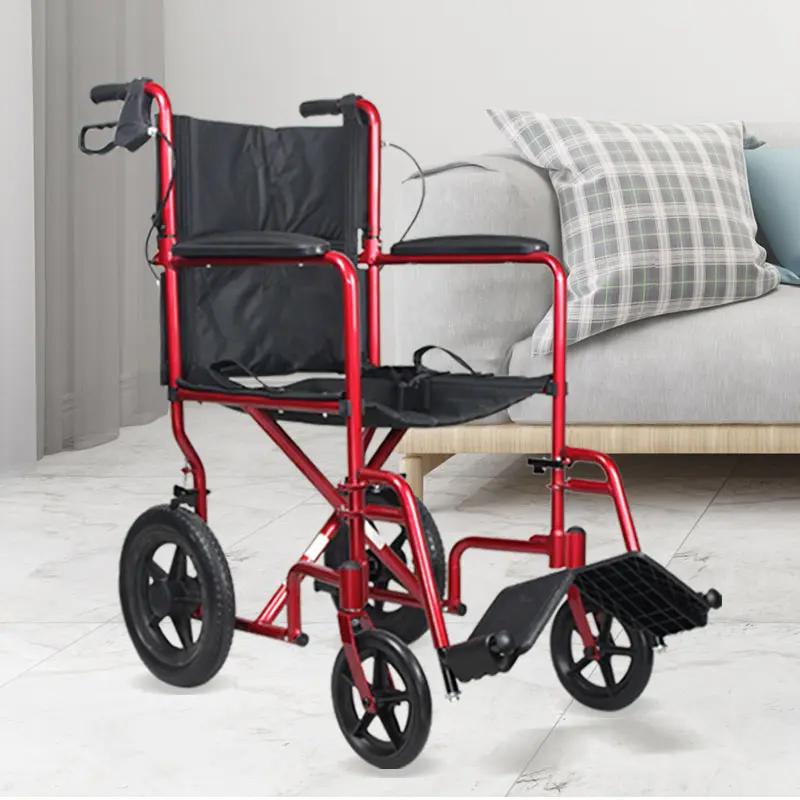

MS-W10 Lightweight Aluminum Companion Wheelchair
Features
1、Frame : (1)Material : High strength aluminum alloy welded ,safety and durable (2)Processing : the surface with Oxidation for fadeless and rust resistance
2 、 Backrest frame: the Angle is completely designed according to the physiological bending of the waist of the human body to provide the best support for the human body.

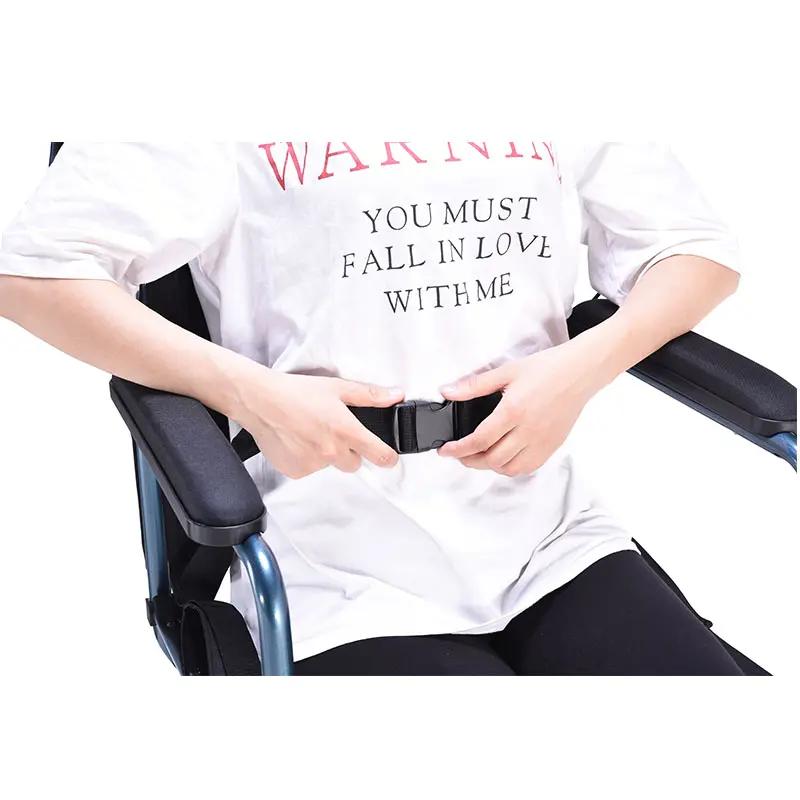

3、Cushion：fire retardant nylon fabric ,durable , soft, breathable, non-slip, smooth ,with safety belt
4、Fixed handrails with padded armrest
5、Foot removal: fixed foot removal, easy to operate, foot pedal using plastic foot pedal, height adjustable.
6、Front wheel: Solid PVC tire with high strength plastic hub, front wheel with high strength aluminum alloy fork,
7、Rear wheels：PU ,excellent shock absorption
8、Foldable model is easy to carry around, and can save space

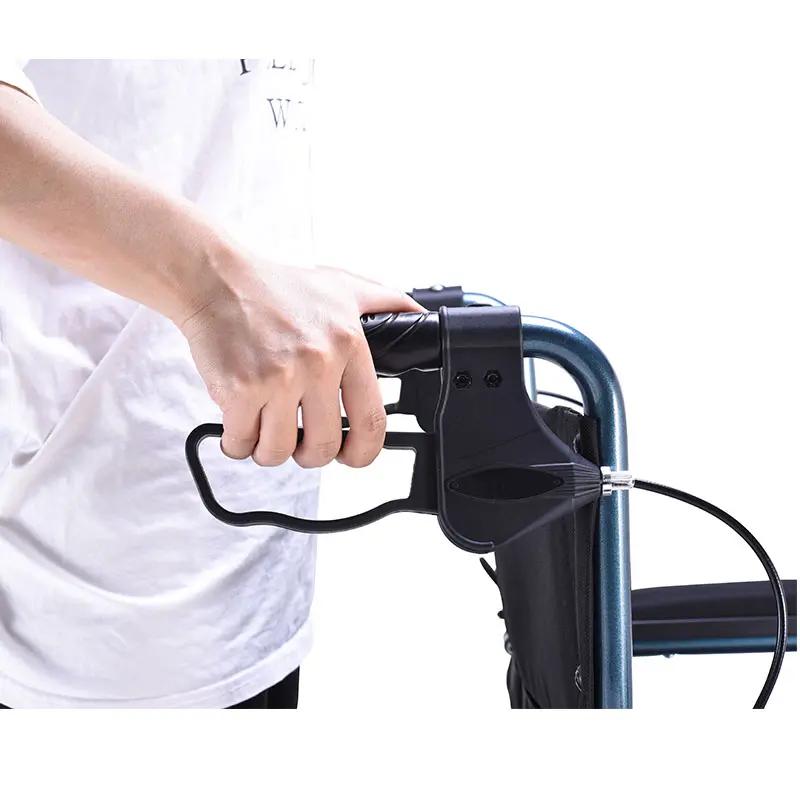

9 、 Linkage brake：make it, fast, convenient and safe
Parameter
Item | Specification（mm） |
L*W*H | 35.4*21.2*40inch (90*54*102cm) |
Folded Width | 9inch （23cm） |
Seat Width | 18.5inch （47cm） |
Seat Depth | 16.1inch （41cm） |
Seat Height off the ground | 18.9inch （48cm） |
The height of Lazy back | 18.1inch （46cm） |
Diameter of front wheel | 8inch PVC |
Diameter of rear-wheel | 12 inch PU |
Spoke Wheel | Plastic |
Frame material Pipe D.*Thickness | aluminum alloy tube |
N.W: | 10.7 Kg |
Supporting Capacity | 100 Kg |
Outside carton | 70*28*79cm |
