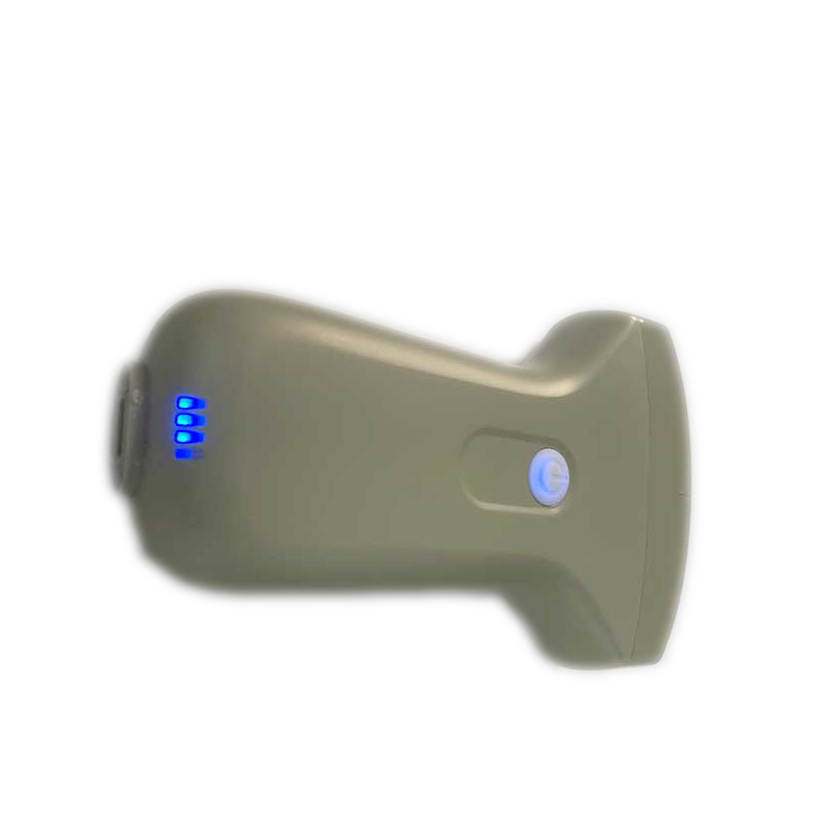

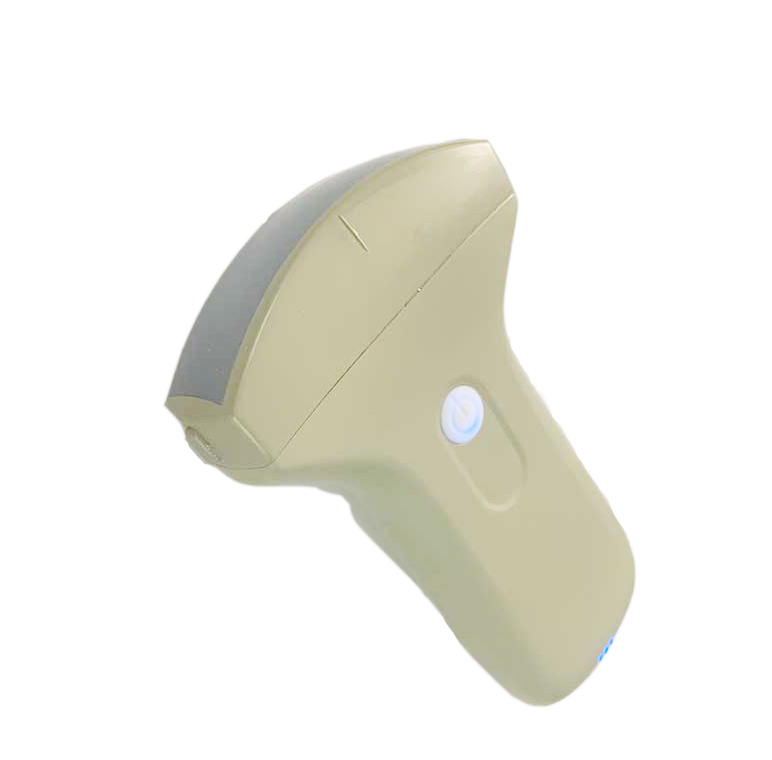

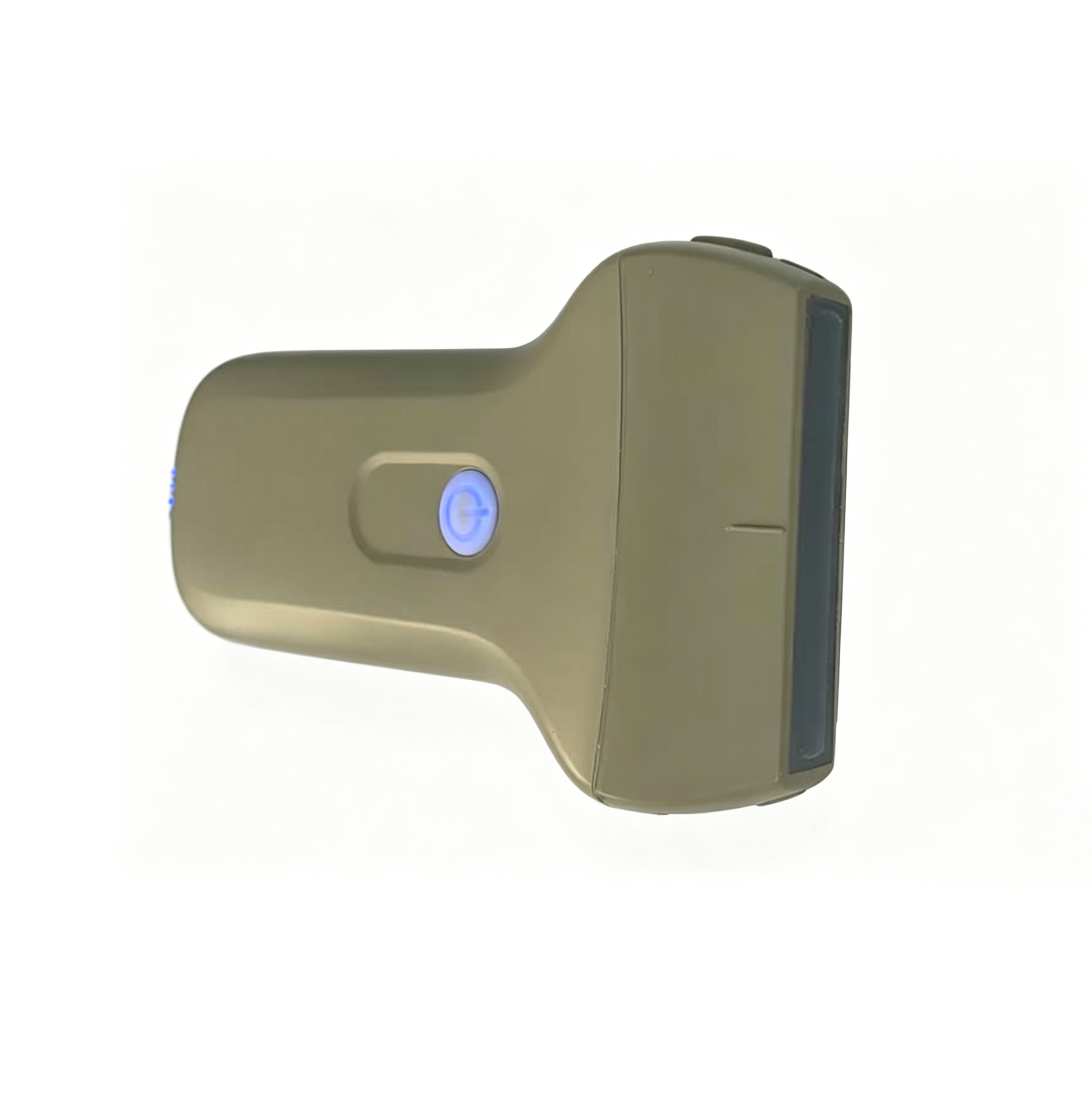

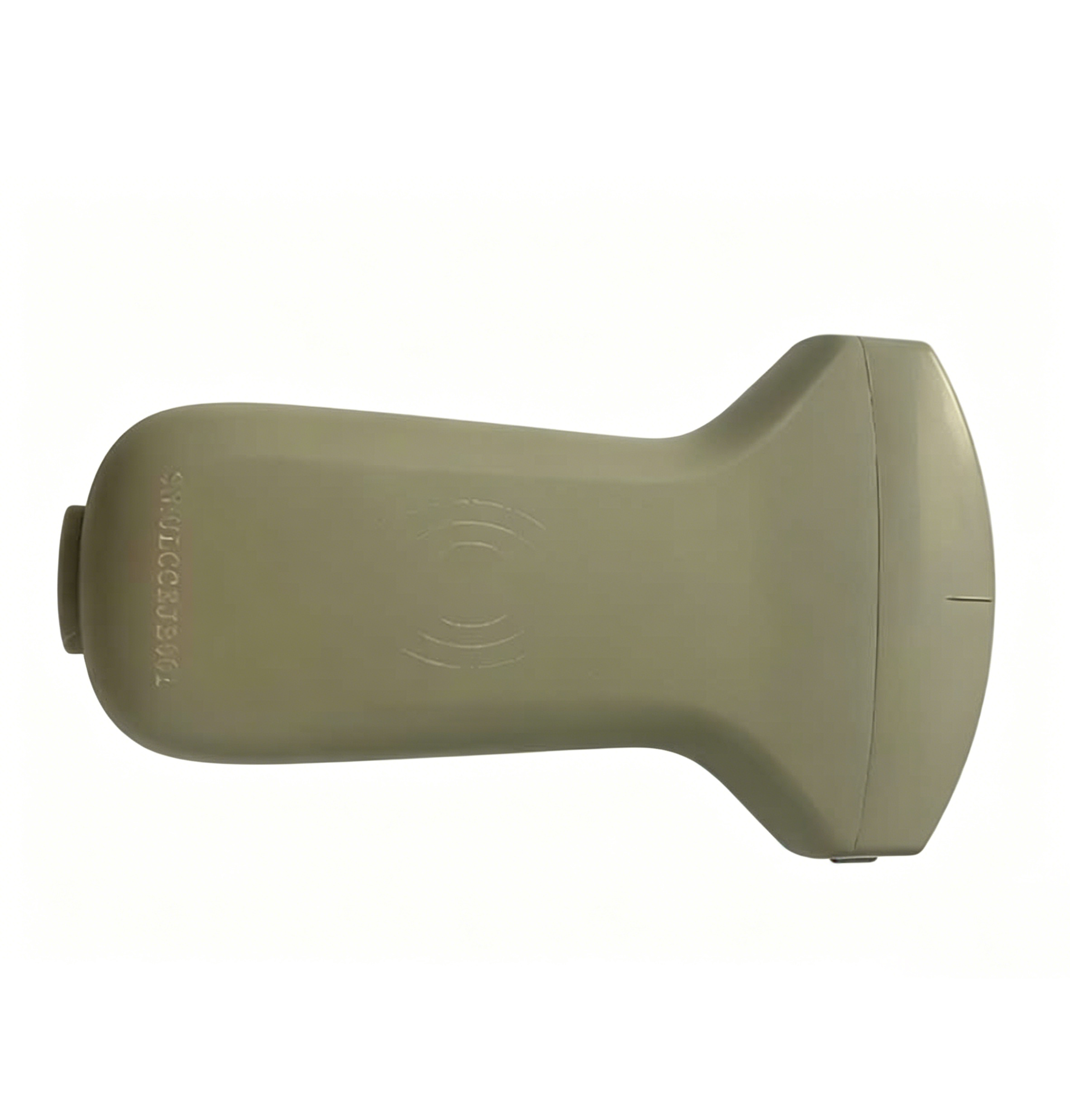

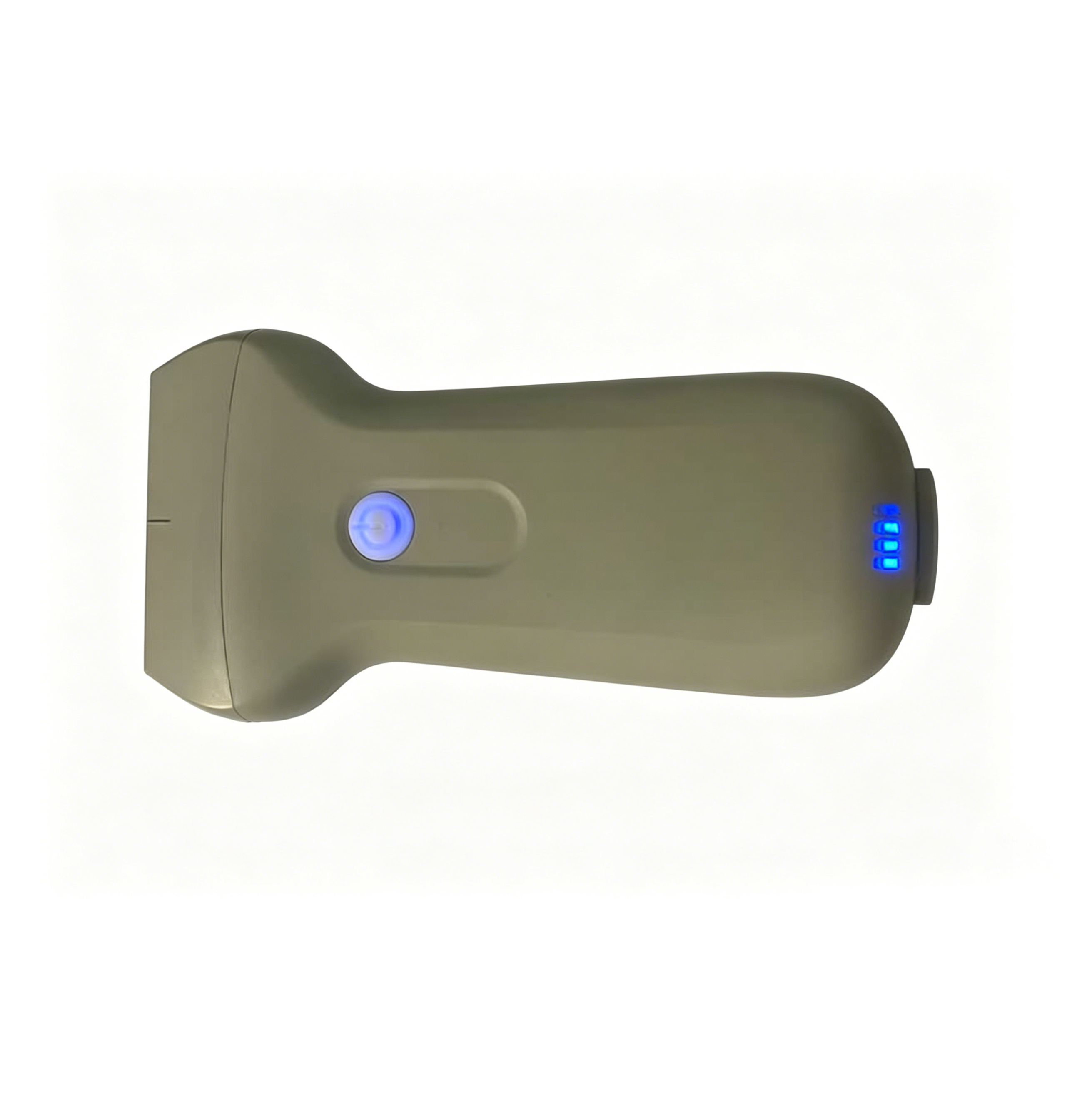

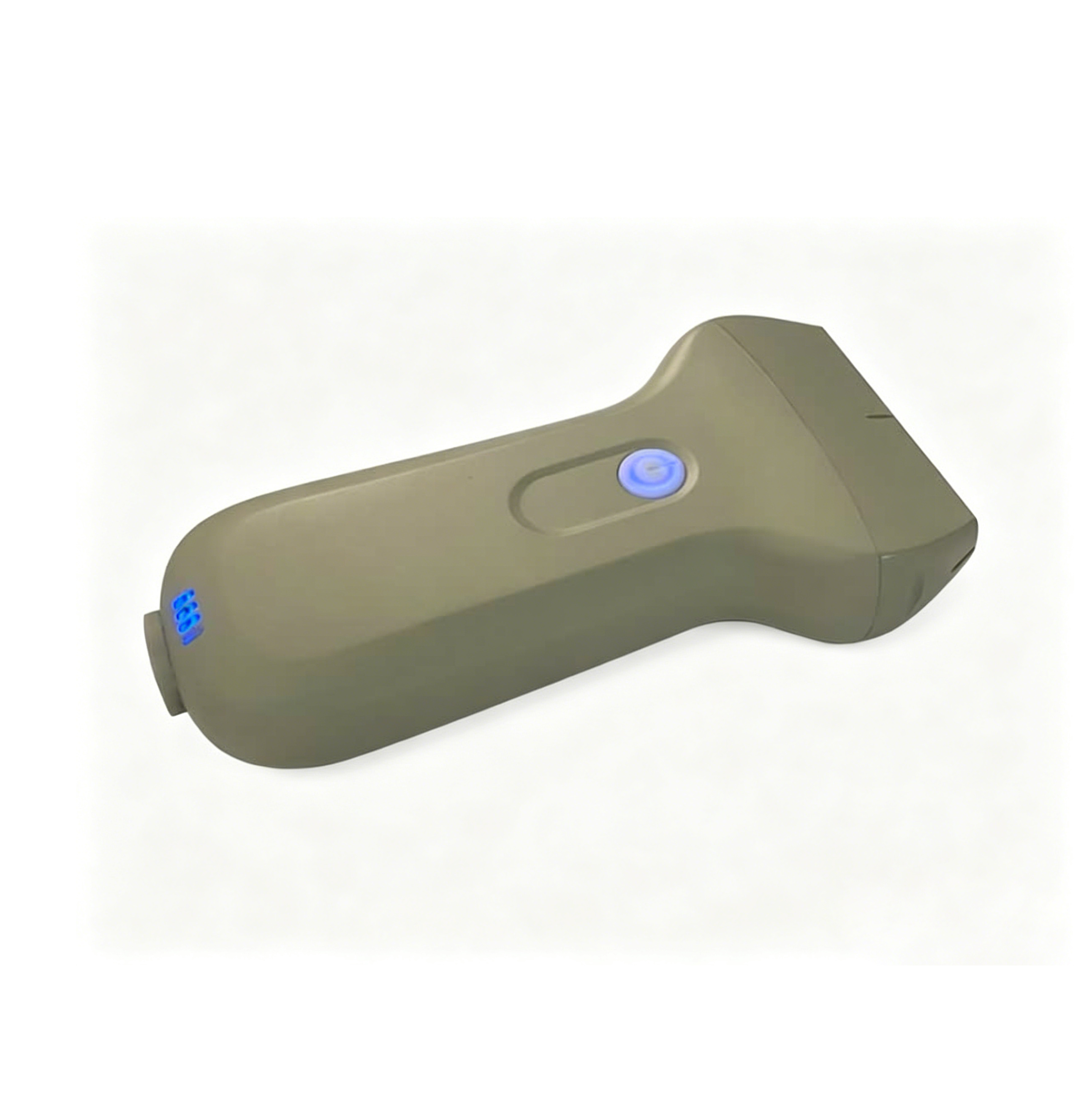

MS-W300 Mini Probe Type Palm Ultrasound Scanner
Specifications
Scanning mode: Electronic array
Display mode: B, B/M, B+Color, B+PDI, B+PW
Probe frequency: Convex 3.2MHz/4MHz, Linear 7.5MHz/10MHz
Scan depth: Convex 90/160/200/240mm, Linear 20/40/60/80mm
Scan angle: Convex 60°
Head radius: Convex 60mm
Scan width: Linear 25mm
Element: 80
RF channel: 16
Image Adjust: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain,Steer, PRF
Cineplay: auto and manual, frames can set as 100/200/500/1000
Puncture assist function: the function of in-plane puncture guide line, out-of-planepuncture guide line, automatic blood vessel measurement.
Measure: Length, Area, Angle, Heart rate, Obstetrics-Image save: jpg, png,mp4,DCM format
Image frame rate: 18frames/second
Dimension: 11cm*6cm*2cm
Weight: 120g
Working system: Apple iOS and Android, Windows
Product Configuration
Standard Configuration: Probe Type Ultrasound Scanner x 1 unit, USB Connectand Charging Cable x 1pc
Optional: ,Carrying Bag or Aluminium Suitcase(options), Stainless Steel PunctureGuide, Android or iOS Phone/Tablet, Windows PC, Tablet Bracket, Trolley
