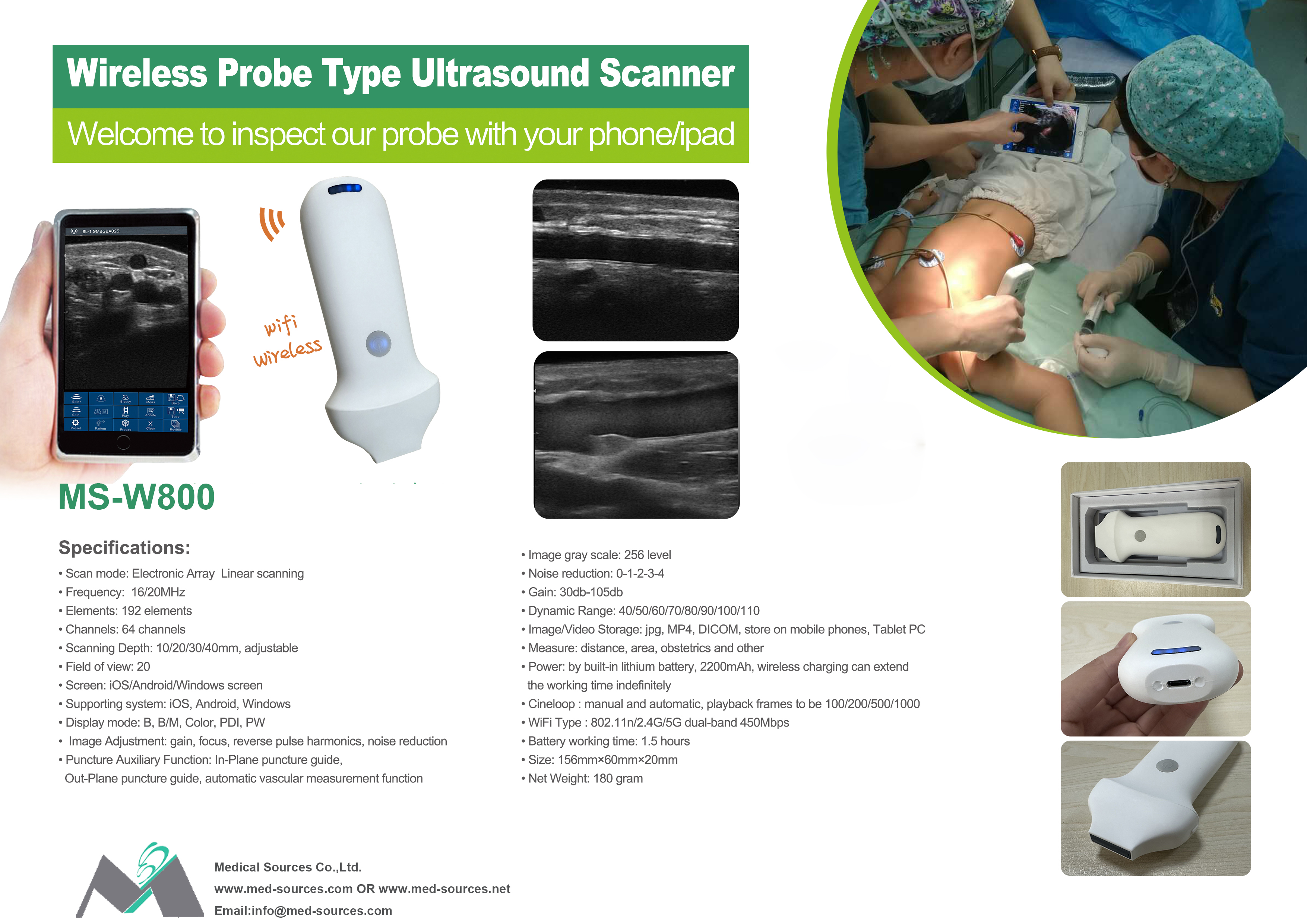

MS-W800 Handed USG Mini Wireless Probe Type Ultrasound Scanner
Specifications:
· Image gray scale: 256 level
· Scan mode: Electronic Array Linear scanning
· Noise reduction: 0-1-2-3-4
·Frequency: 16/20MHz
· Gain: 30db-105db
· Elements: 192 elements
· Dynamic Range: 40/50/60/70/80/90/100/110
· Channels: 64 channels
· Image/Video Storage: jpg, MP4, DICOM, store on mobile phones, Tablet PC
· Measure: distance, area, obstetrics and other
· Scanning Depth: 10/20/30/40mm, adjustable
· Field of view: 20
· Power: by built-in lithium battery, 2200mAh, wireless charging can extend the working time indefinitely
·Screen: iOS/Android/Windows screen
· Cineloop : manual and automatic, playback frames to be 100/200/500/1000
· Supporting system: iOS, Android, Windows
· Display mode: B, B/M, Color, PDI, PW
· WiFi Type : 802.11n/2.4G/5G dual-band 450Mbps
susr sd e
· Battery working time: 1.5 hours
· Puncture Auxiliary Function: In-Plane puncture guide,Out-Plane puncture guide, automatic vascular measurement function
· Size: 156mmx60mmx20mm
· Net Weight: 180 gram
