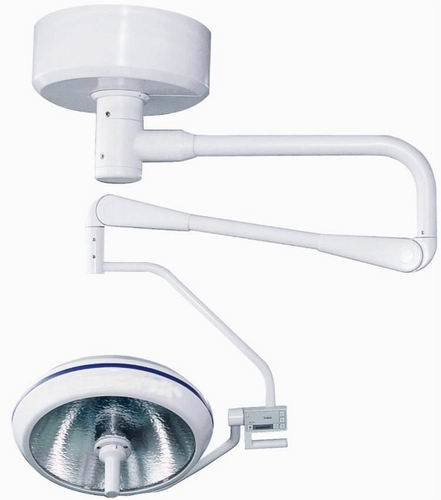

MS-WR5C Shadowless Operating lamp
Character:
Whole reflection series shadowless Operating lamp can widely be used in diversified operation occasion to meet the demand of the illumination, and it is the ideal illumination instrument of the modern operating theater.
The Whole reflection optical system is made by CAD/CAM technology, its illumine depth is up to 1000mm ;by using color temperature compensation technology, the color reversion is uprised, and it is more suitable for the illumination of the complex surgery such as encephalon surgery and thorax surgery. The panel is made of German PC (anti-bullet plastic) by injection moulding, makes the light softer and more reliable.Equipped with imported balance arm suspension system, which is light and handy, six group joints move together and moves smoothly, positions stablely. 360 universal design can satisfy various needed height and angle in the operation.
Technical Data:
Illuminance:≥100,000Lux
Colour temperature:4500±300K
Colour reduction index(Ra):93
Illuminance depth:≥1000mm
Total irradiance:580W/m²
The ratio between irradiance
and illuminance :4.7mW/m²lx
Size of light field:160~280mm
Rated power of bulb 24V:150W
Service life of illuminant:1,000h
Power supply voltage:AC110-240v,50/60Hz
Brightness adjustment:Automatic8-stage continuous light adjustment
Shift of major and stand by lamp s:Automatic
Lowest height of installation:2900mm
Packing:
1 piece in a carton: 80*81*36(cm)
GW:14kg NW:8kg
1 piece in a wooden case: 108*43*60(cm)
GW:46kg NW:35kg
