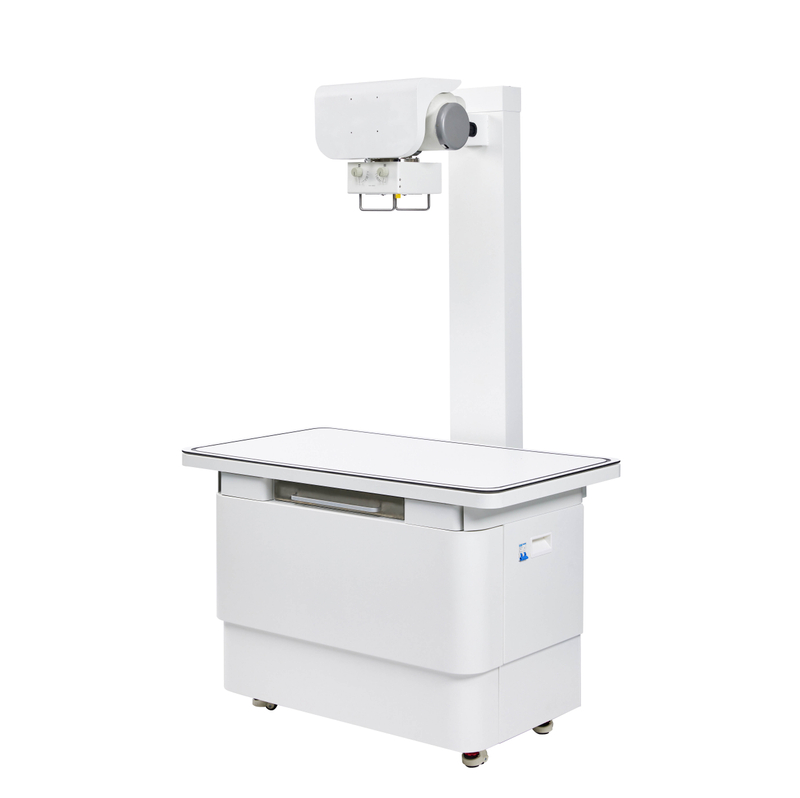

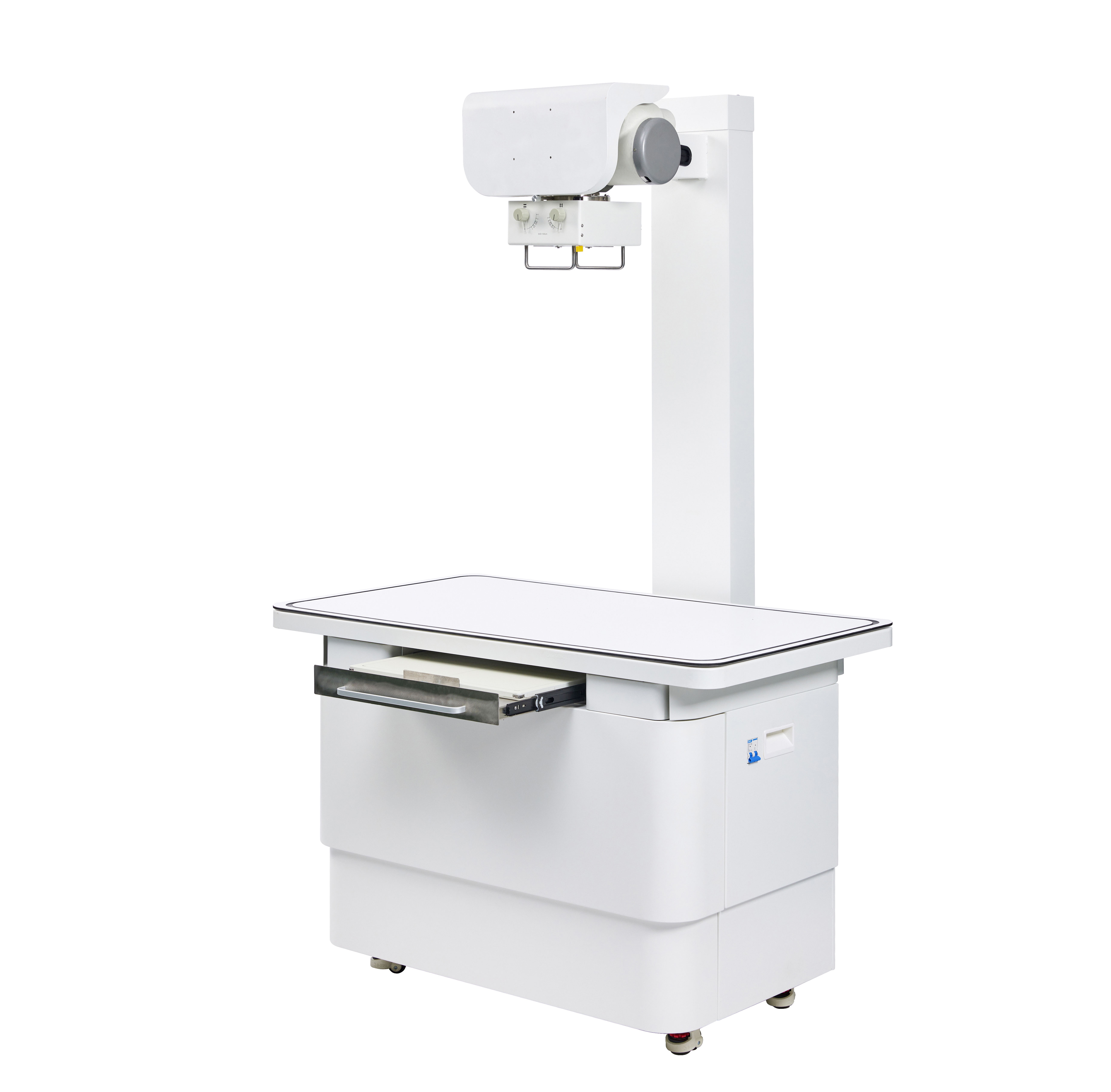

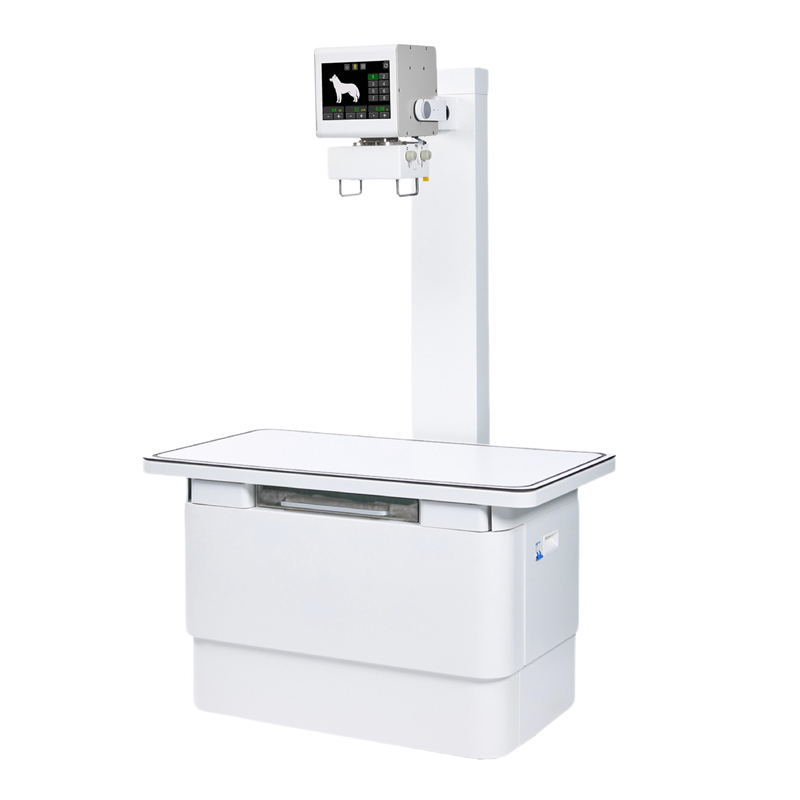

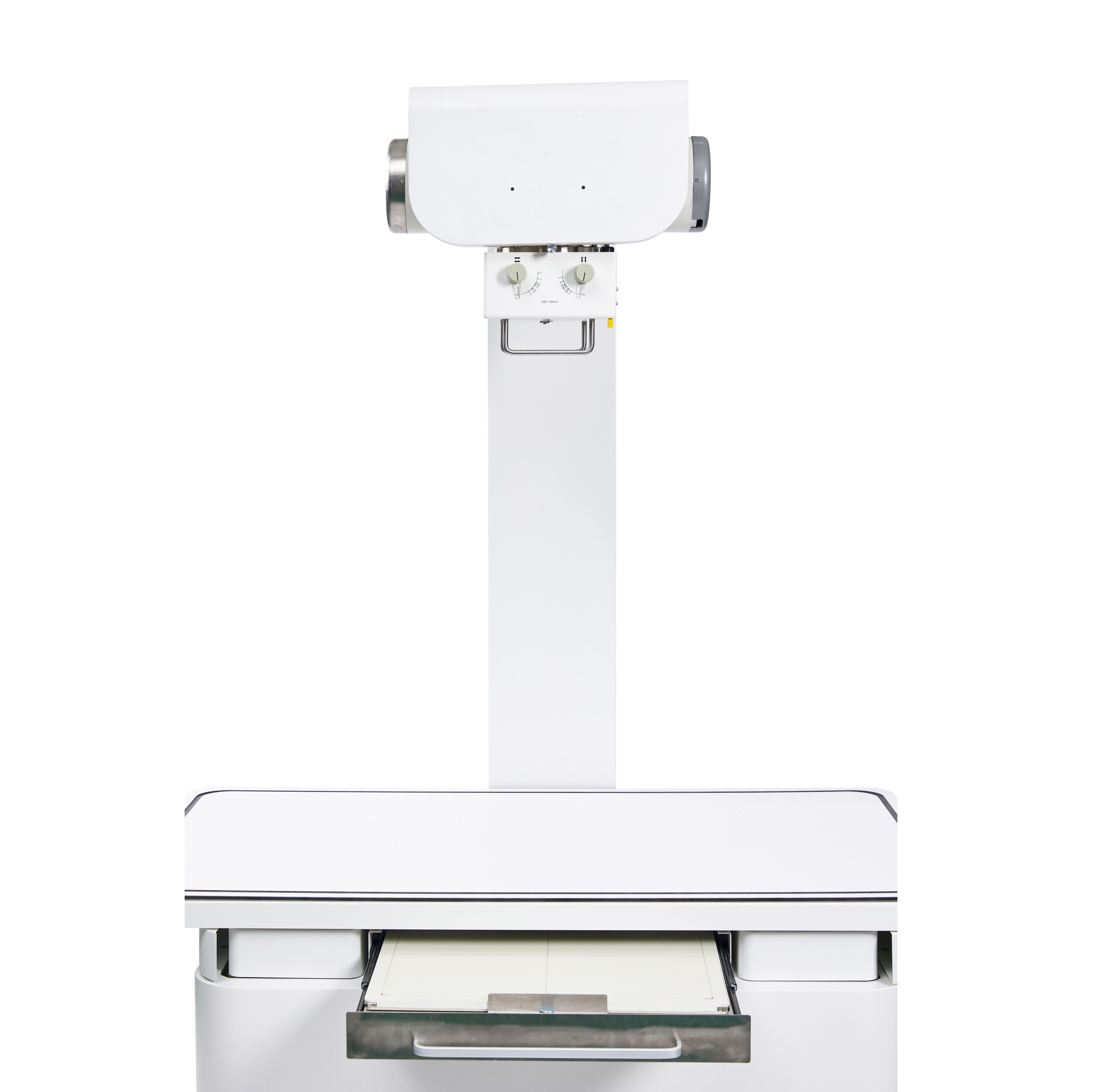

Portable Digital Mobile Veterinary X Ray Machine DR pet X-Ray Machine

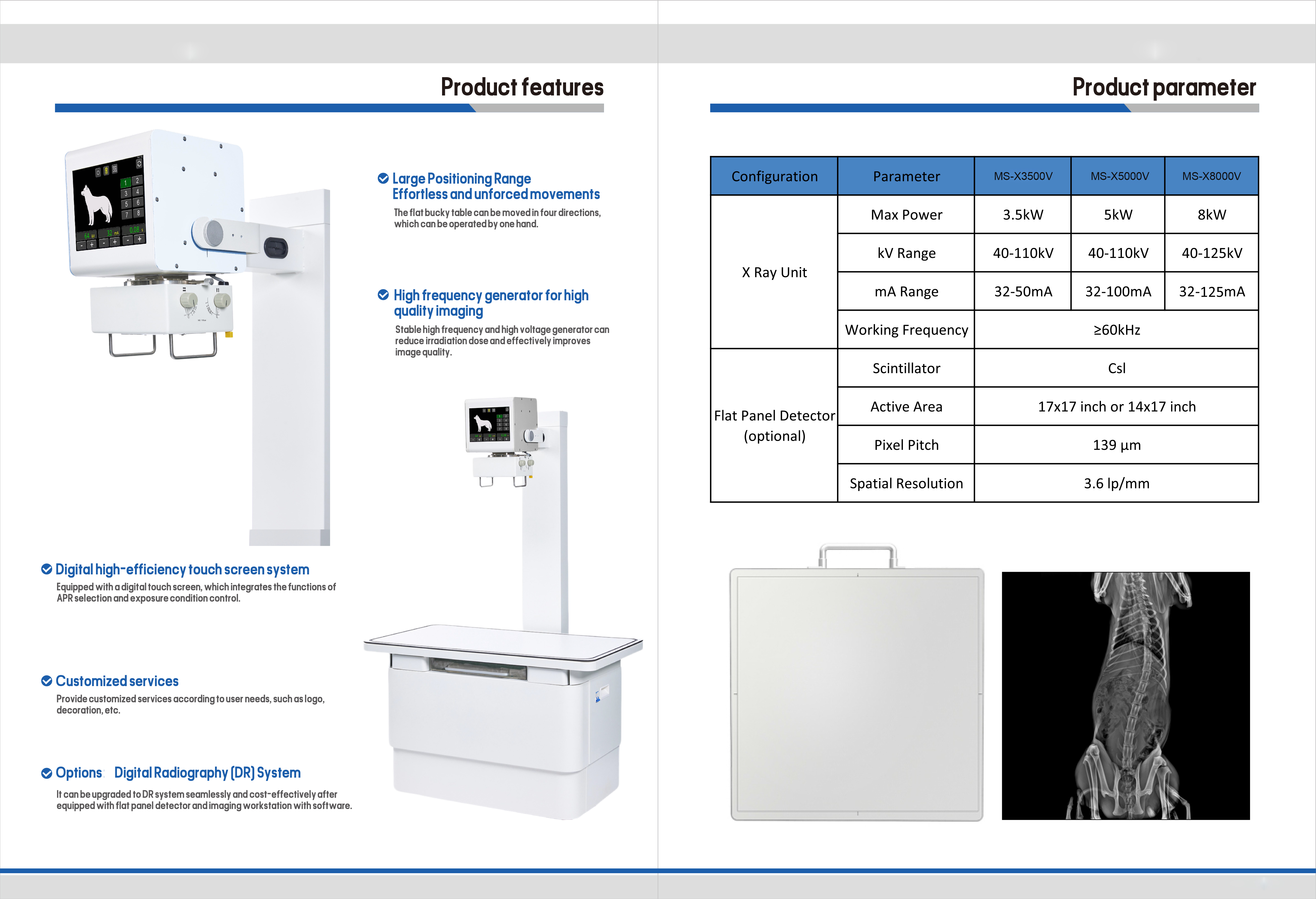

Product features
Large Positioning Range Effortless and unforced movements
The flat bucky table can be moved in four directions,which can be operated by one hand.
High frequency generator for high quality imaging
Stable high frequency and high voltage generator can reduce irradiation dose and effectively improves image quality.
Digital high-efficiency touch screen system
Equipped with a digital touch screen, which integrates the functions ofAPR selection and exposure condition control.
Customized services
Provide customized services according to user needs, such as logo,decoration, etc.
Options: Digital Radiography[DR)System
It can be upgraded to DR system seamlessly and cost-effectively afterequipped with flat panel detector and imaging workstation with software.
Product parameter
Configuration | Parameter | MS-X3500V | MS-X5000V | MS-X8000V |
X Ray Unit | Max Power | 3.5KW | 5KW | 8KW |
KV Range | 40-110KV | 40-110KV | 40-125KV |
mA Range | 32-50mA | 32-100mA | 32-125mA |
Working Frequency | ≥60kHz |
Flat Panel Detector(optional) | Scintillator | Csl |
Active Area | 17x17 inch or 14x17 inch |
Pixel Pitch | 139 μm |
Spatial Resolution | 3.6lp/mm |
