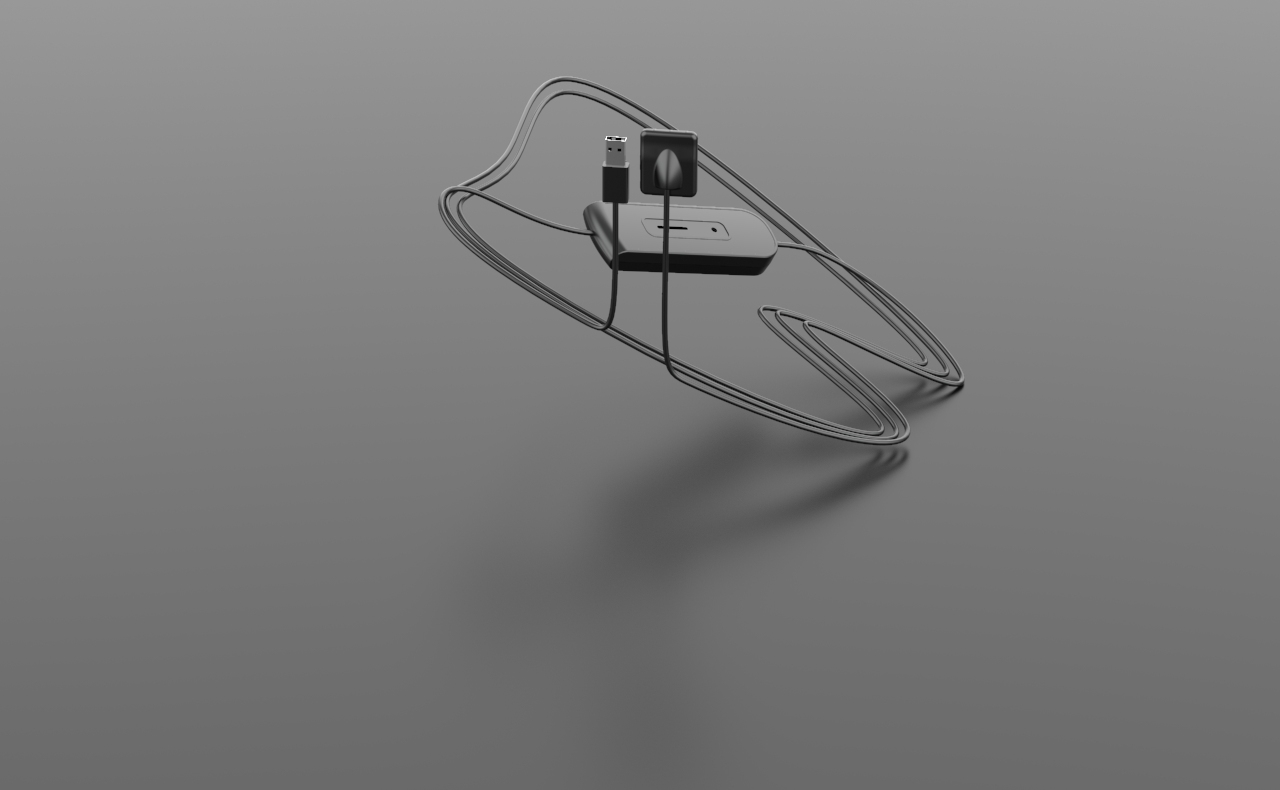

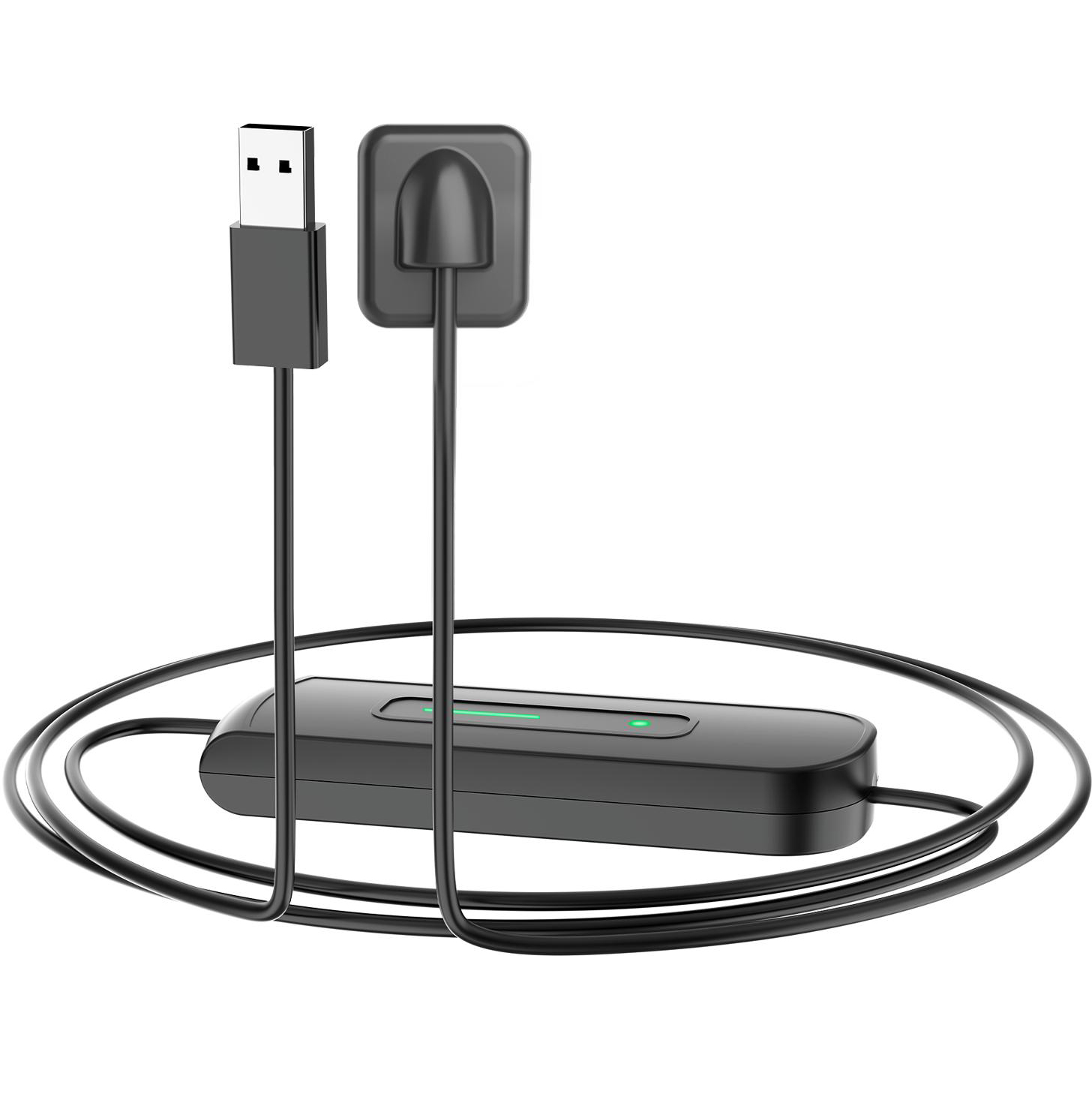

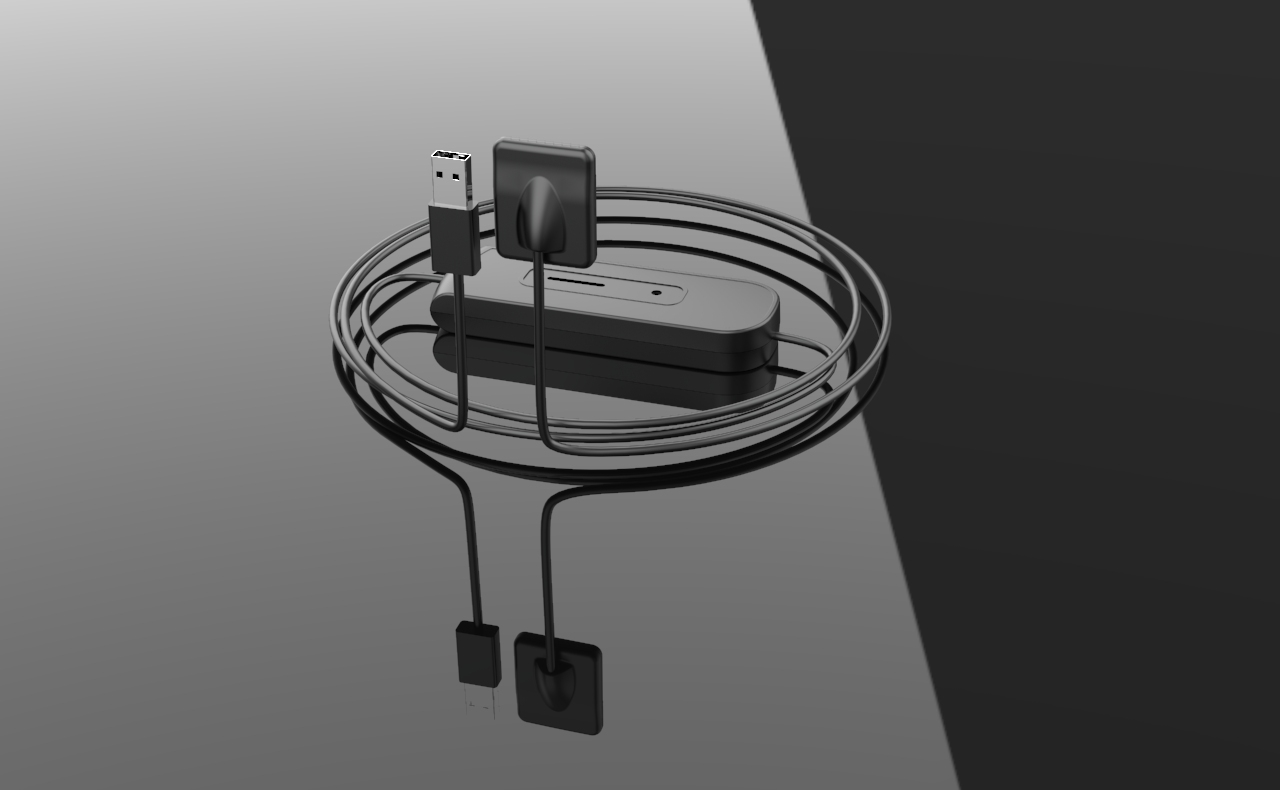

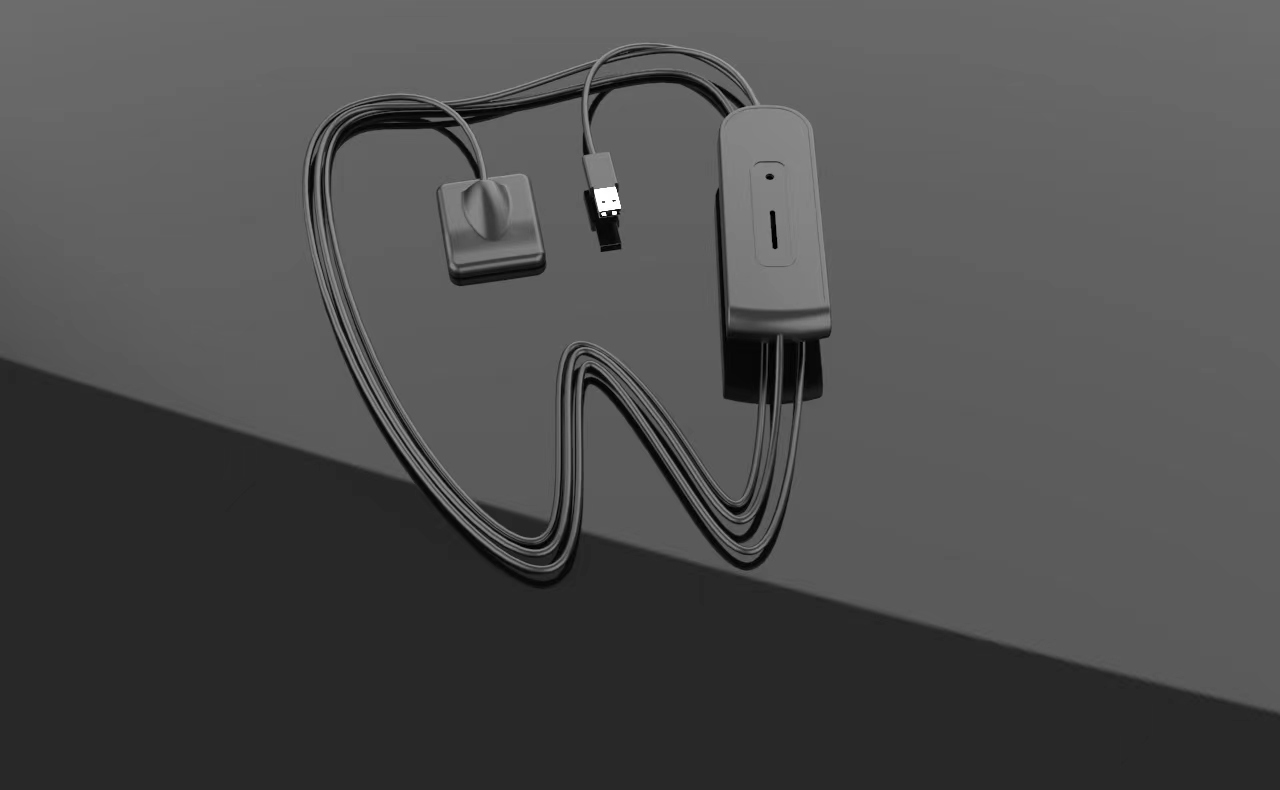

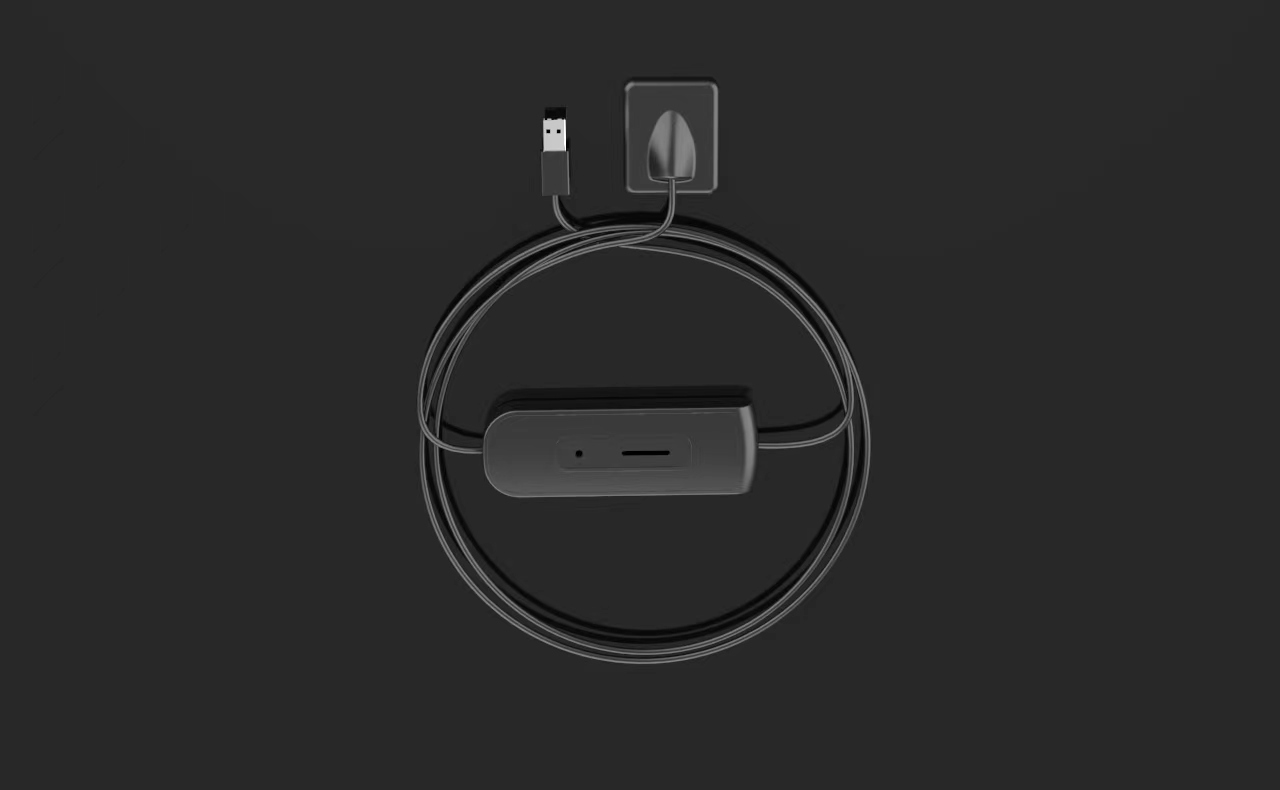

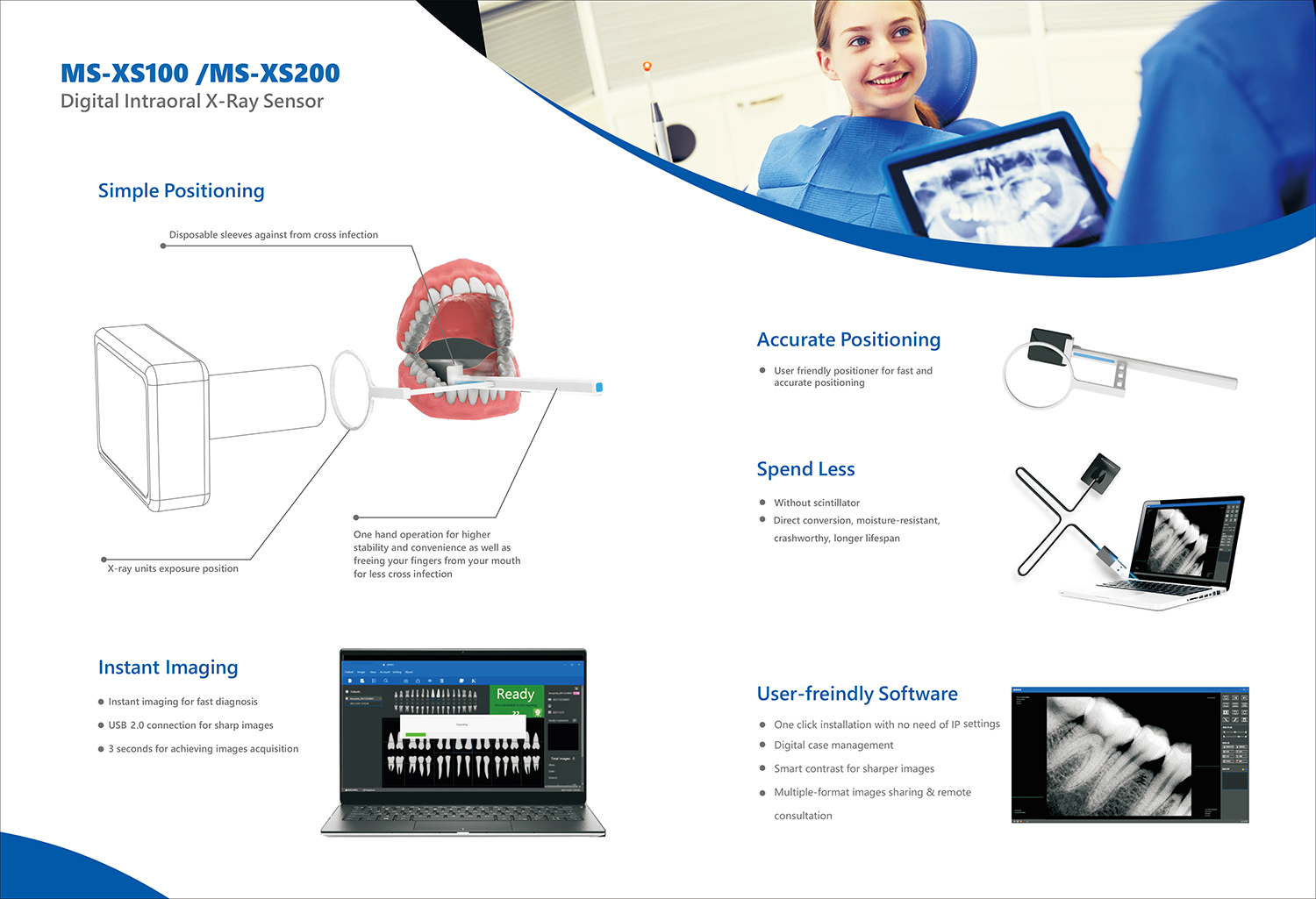

MS-XS100/MS-XS200 Digital Intraoral X-Ray Sensor
Size 0 .8, 1. 5 available
IP68 water and dust protection
Patented high-definition direct imaging technology

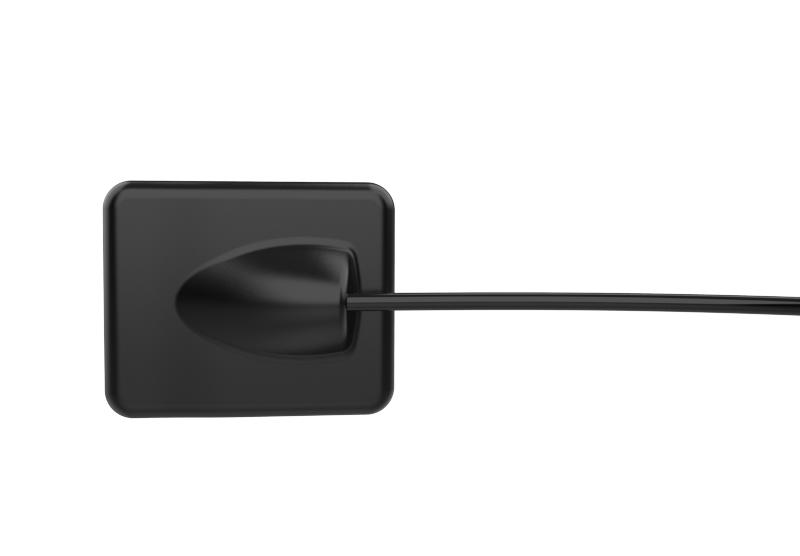

Thin footprint design for comfort and accuracy
User-friendly Software

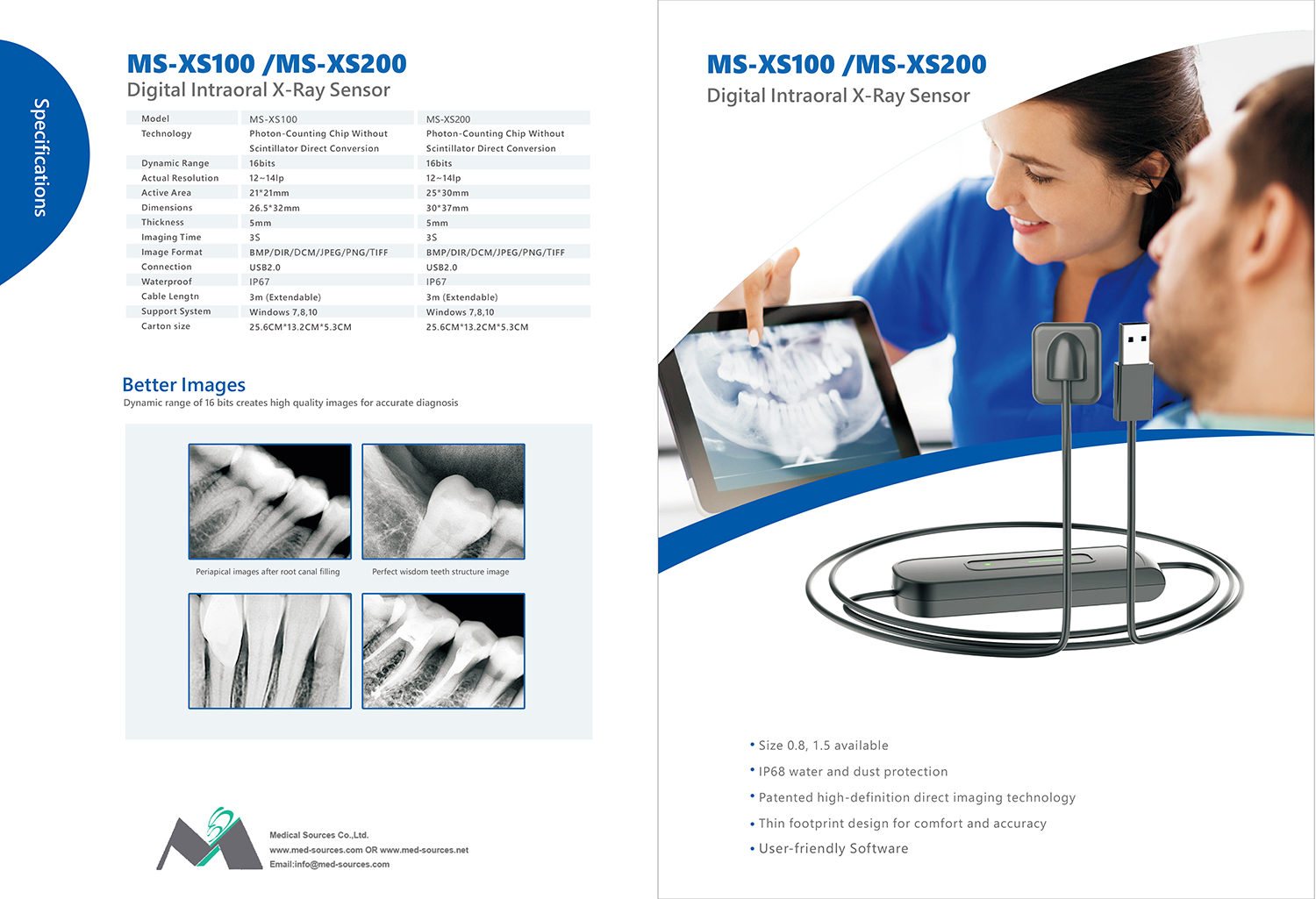

Specifications
Model | MS-XS100 | MS-XS200 |
Technology | Photon -Counting Chip Without Scintillator Direct Conversion | Photon -Counting Chip Without Scintillator Direct Conversion |
Dynamic Range | 16bits | 16bits |
Actual Resolution | 12 ~14lp | 12 ~14lp |
Active Area | 21*21mm | 25* 30mm |
Dimensions | 26. 5* 32mm | 30* 37mm |
Thickness | 5mm | 5mm |
Imaging Time | 3S | 3S |
Image Format | BMP/ DIR/ DCM/JPEG/ PNG/TIFF | BMP/ DIR/ DCM/JPEG/ PNG/TIFF |
Connection | USB2 .0 | USB2 .0 |
Waterproof | IP67 | IP67 |
Cable Length | 3m ( Extendable) | 3m ( Extendable) |
Support System | Windows 7,8,10 | Windows 7,8,10 |
Carton size | 25.6CM*13.2CM* 5. 3CM | 25.6CM*13.2CM* 5. 3CM |
