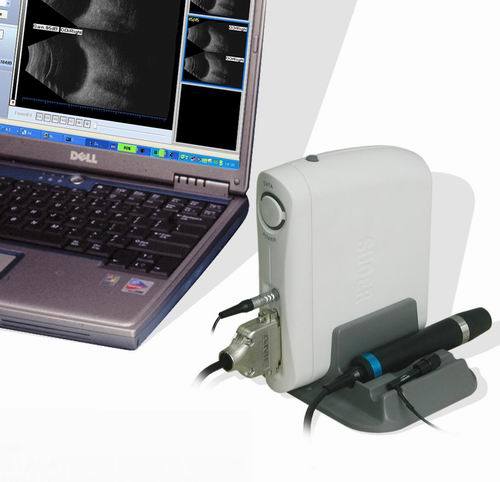

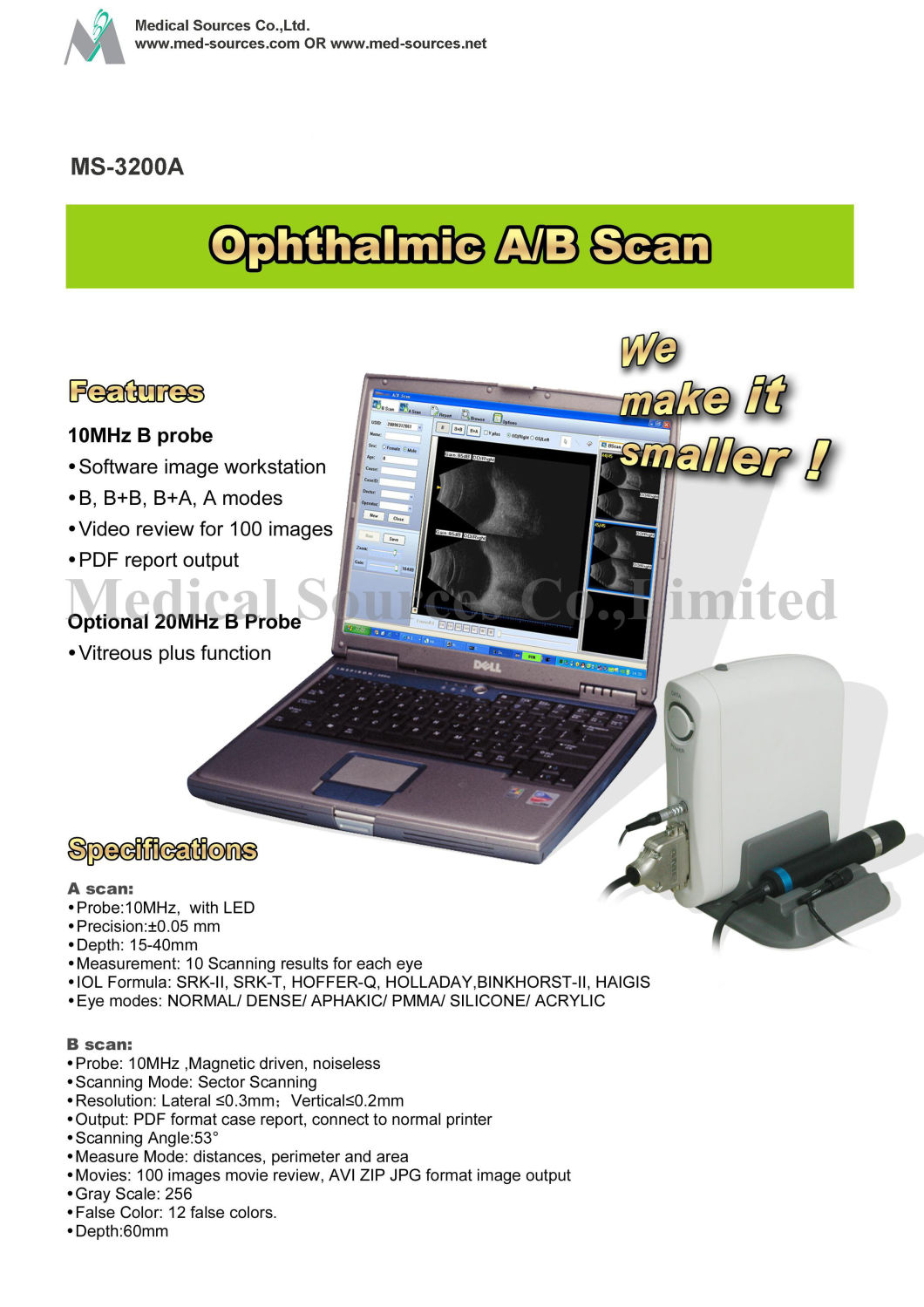

MS-3200A Ophtalmic A/B Scan
Features:
10MHZ B probe
Software image workstation
B,B+B,B+A,A modes
Video review for 100 images
PDF report output
Optional 20MHz B Probe
Vitreouse plus function
Specification:
A Scan:
Probe:10Mhz,with LED
Precision±0.05mm
Depth:15-40mm
Measurement:10 Scanning results for each eye
IOL Formula:SRK-II,SRK-T,HOFFER-Q,HOLLADAY,BINKHORST-II,HAIGIS
Eye Modes:NORMAL/DENSE/APHAKIC/PMMA/SILICONE/ACRYLIC
B Scan:
Probe:10MHz,Magnetic driven,noiseless
Scanning Mode:Sector Scanning
Resolution:Lateral≤0.3mm; Vertical≤0.2mm
Output:PDF FORMAT report,connect to normal printer
Sanning Angle:53°
Measure Mode:Distances,Perimeter and area
Movies:100 images movie revies,AVI ZIP JGP format image output
Gray Scale:256
False Colour:12 false colour
Depth:60mm
