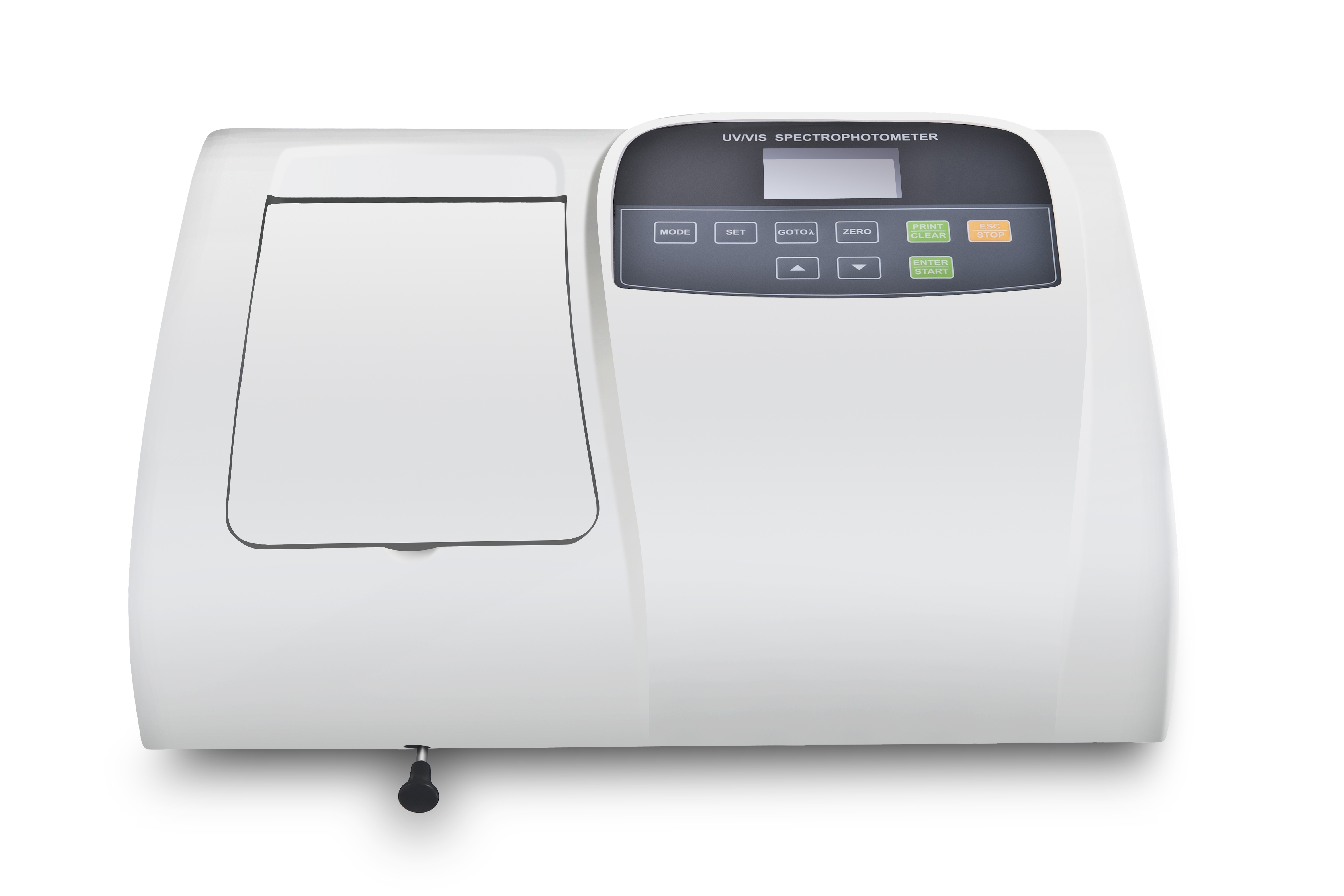

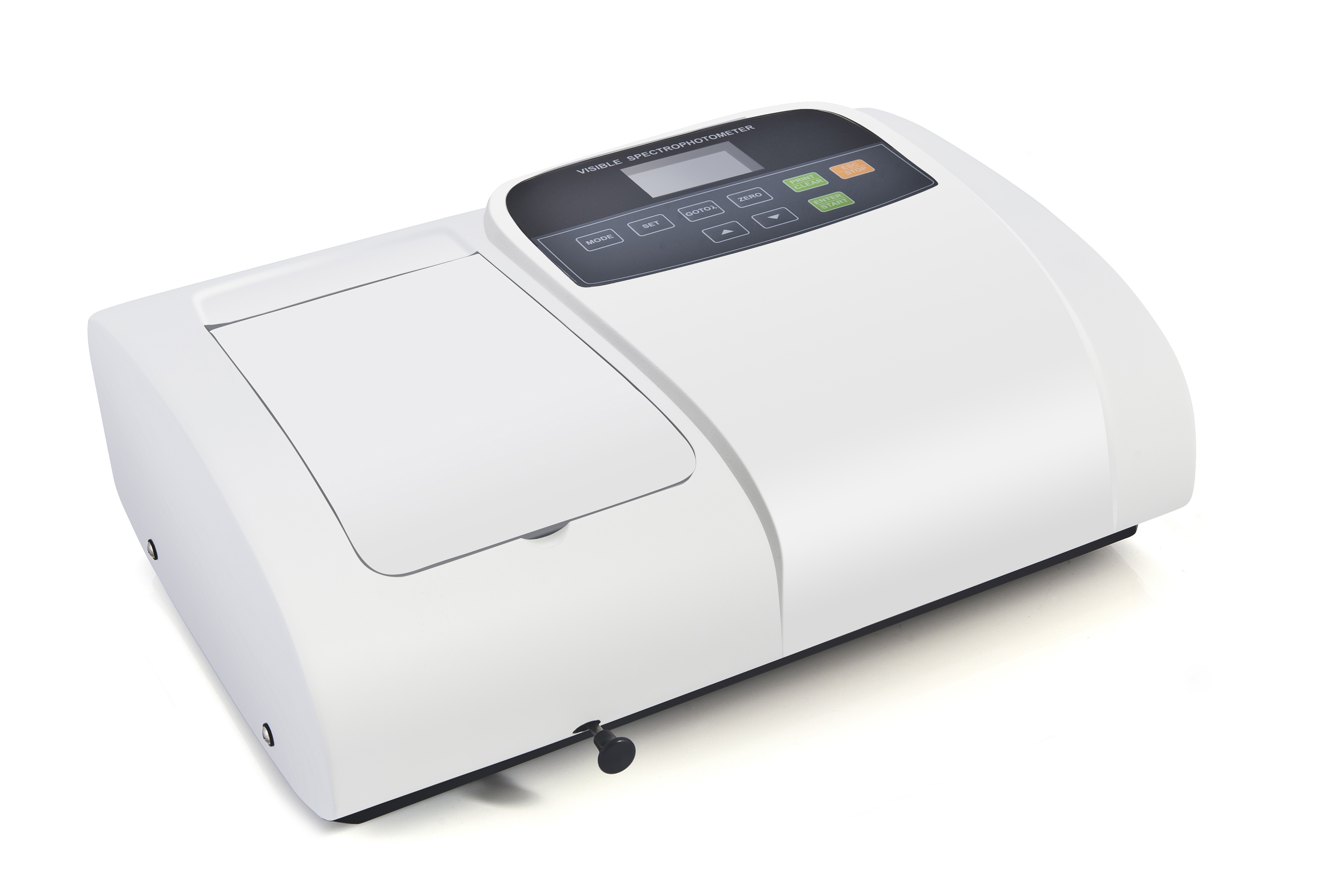

MS-V7100 Spectrophotometer
[Features]
2.5 inches LCD screen
Equipped with a 2.5 inches LCD screen to give a clear display of standard curves and
groups of results.
Standard curve
Can set up various standard curves according to customer 's solutions and find the
concentrition of unknown solutions.
Data output
Equipped with USB port to connected with a PC to display spectrum scanning,kinetics and
multiwavelength testing results on the screen.The software is optional
Multiple resules readout
Can display wavelength,absorption and transmittance with 5 results per screen.It also has a memory store of up to 200 results.
Auto setting wavelength
Users set wavelength automatically through arrow keys to avoid operation errors.
[Technical Specification]
Model | MS-V7100 |
Optical System | Single beam, grating 1200 lines/mm |
Wavelength Range | 325-1000nm |
Bandwidth | 2nm |
Wavelength Accuracy | ±2nm |
Wavelength Repeatability | 0.5nm |
Wavelength Setting | Auto |
Wavelength Resolution | 0.1nm |
Photometric Accuracy | ±0.5%T |
Photometric Repeatability | ≤0..2%T |
Photometric Range | -0.3-3A, 0-200%T, 0-9999C |
Photometric Mode | T, A, C, F |
Stray Light | ≤0.1%T |
Stability | ± 0.002A/h @ 500nm |
Display | 128*64 LCD |
Detector | Silicon Photodiode |
Light Source | Tungsten Lamp |
Output | USB port & Parallel Port (Printer) |
Power Requirements | AC 85~250V |
Dimension | 420*280*180mm |
Weight | 10kg |
[Standard Accessories]
Item | Description | Quantity | Unit |
1 | Spectrophotometer | 1 | set |
2 | 1cm Glass cuvette | 4 | pcs |
3 | Power cord | 1 | pcs |
4 | User’s Manual | 1 | pcs |
5 | Dust Cover | 1 | pcs |
