Eyepieces

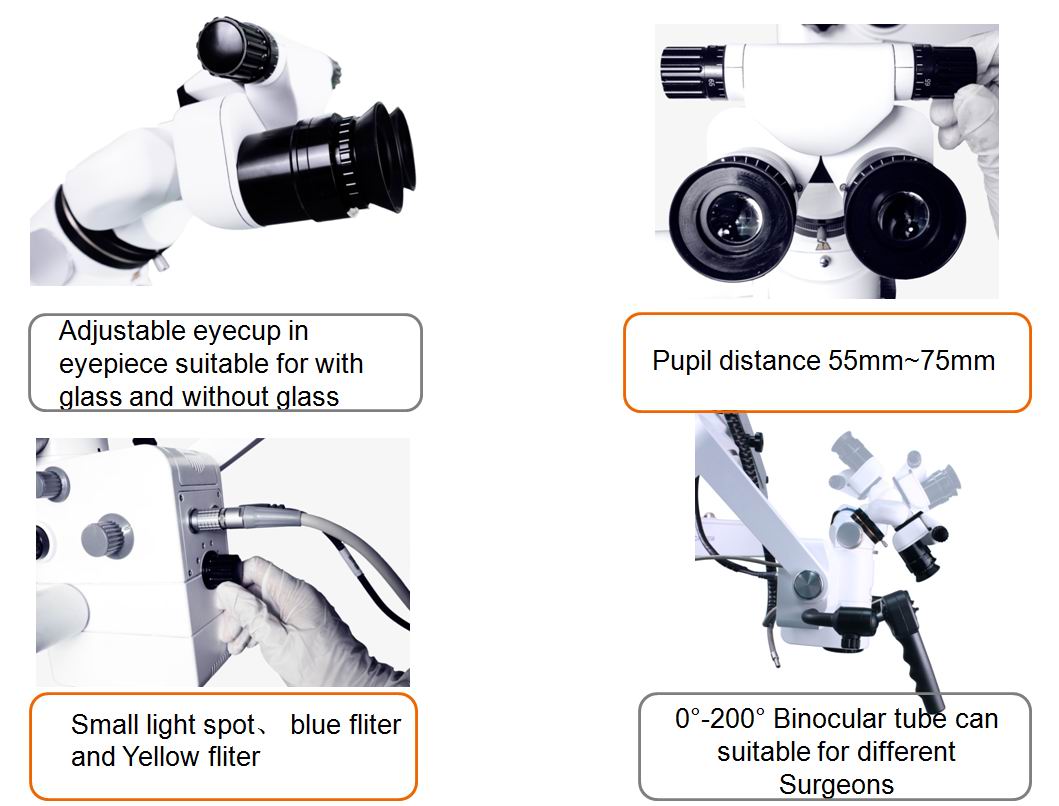

magnification 12.5x, pupil distance adjustable range 55mm~75mm, dioptor adjustment range +6D ~ -6D.
Binocular tube
0°~200°variable angle binocular tube, add new pupil distance adjustment
Magnification
6:1 zoom, motorized continuous, magnification 1.8x~19x; field of view Φ12~Φ113mm
Coaxial assistant’s binocular tube
Free-rotatable assistant stereoscope, all direction circumvolve freely, magnification 3x~16x; field of view Φ13~Φ94mm
Illumination
2 sets xenon lamp , each lillumination intensity 100000lux
Working Distance
Motorized 200-500mm
Stand system
electromagnetic brakes
Filiter
Yellow filter, Green filter, small spot
Maximum length of arm
1715mm
New stand
Height from objective to floor 690mm<H<1452mm

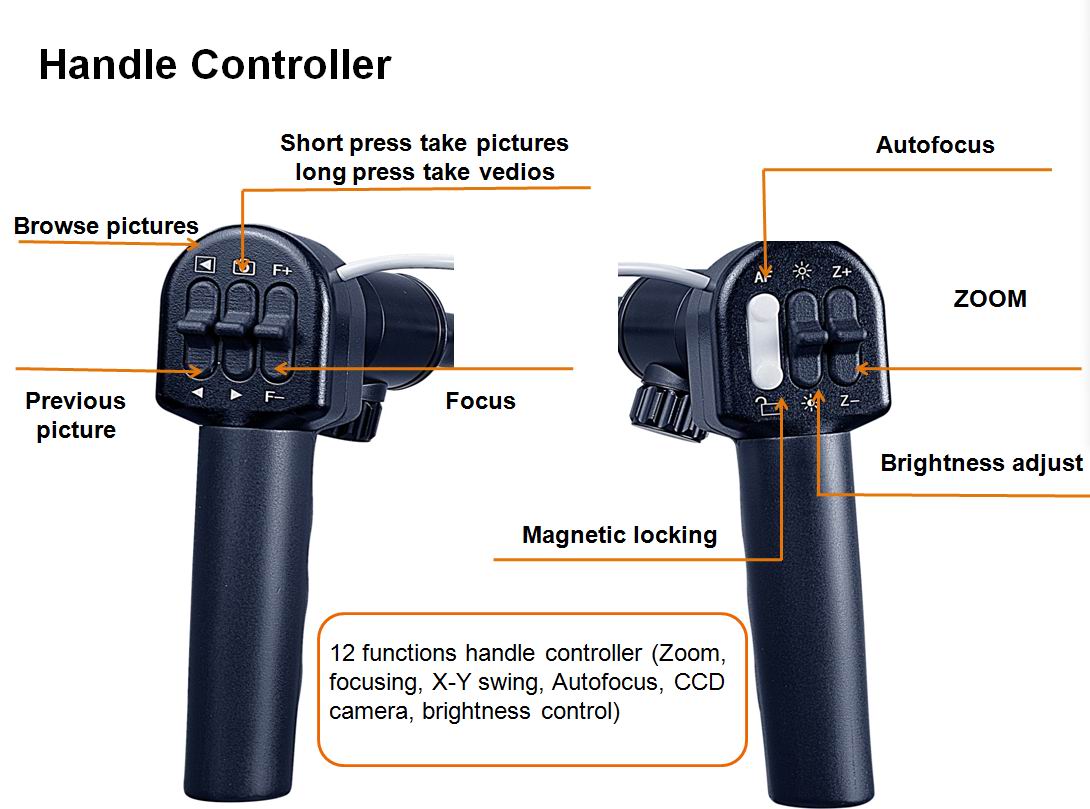

Handle controller
10 functions (zoom, focusing, magnetic lock, take vedio/photo,browse pictures ,autofocus, brightness adjust)
Weight
215kg

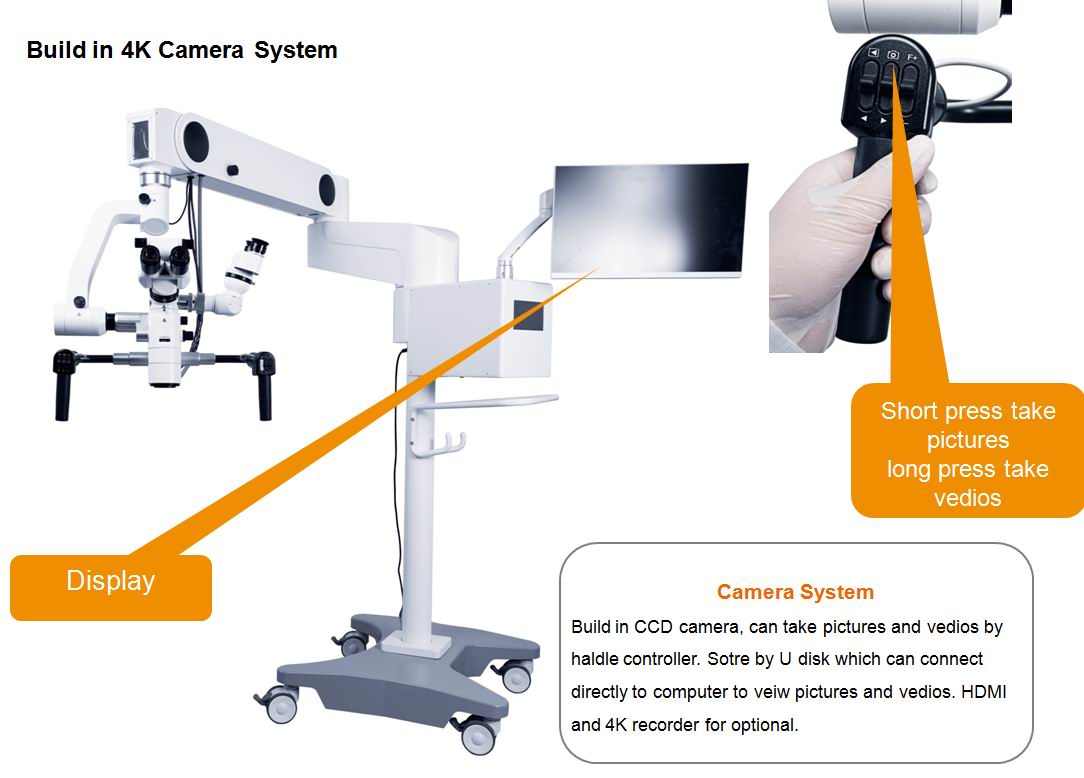

Camera system
Build-in camera system, can take vedio/photo, browse pictures
Atutofocus function
